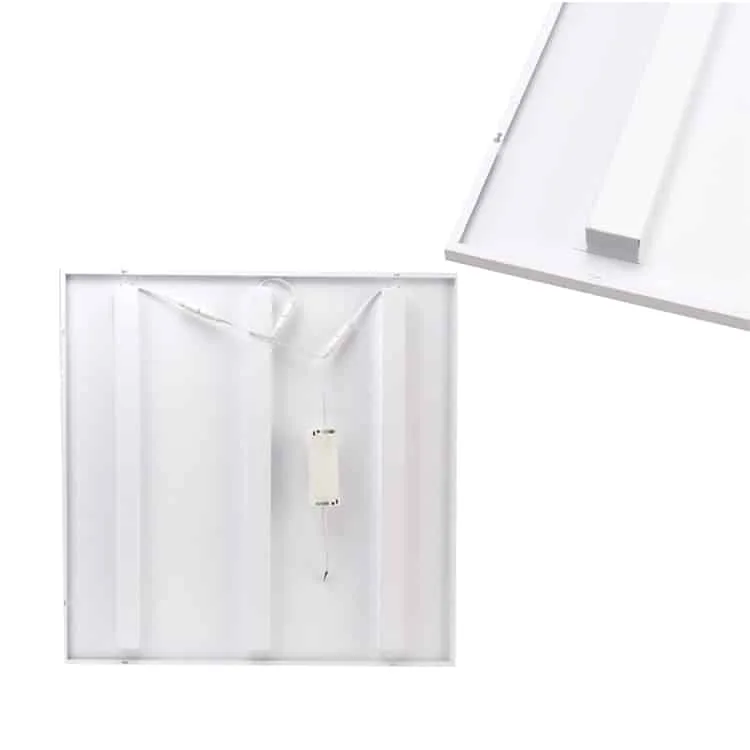

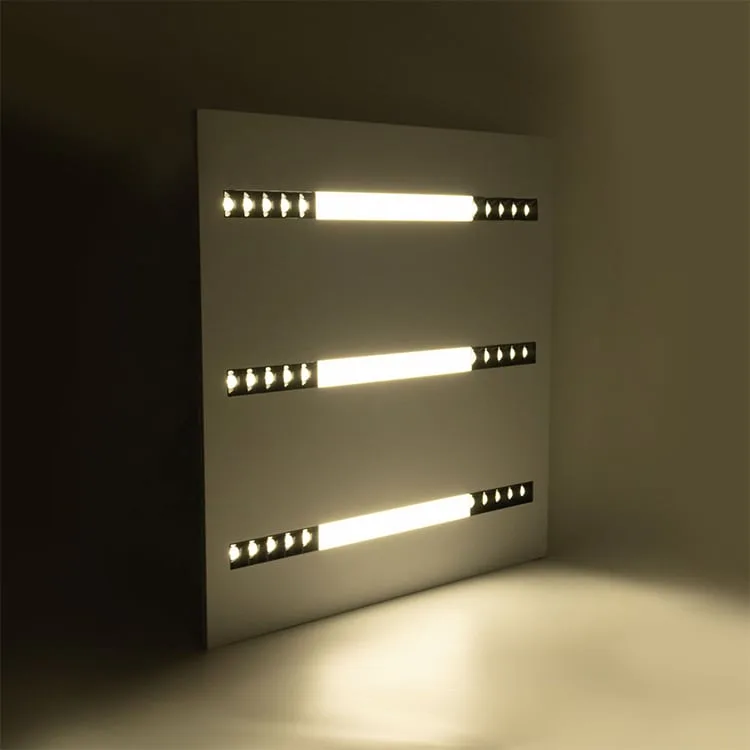

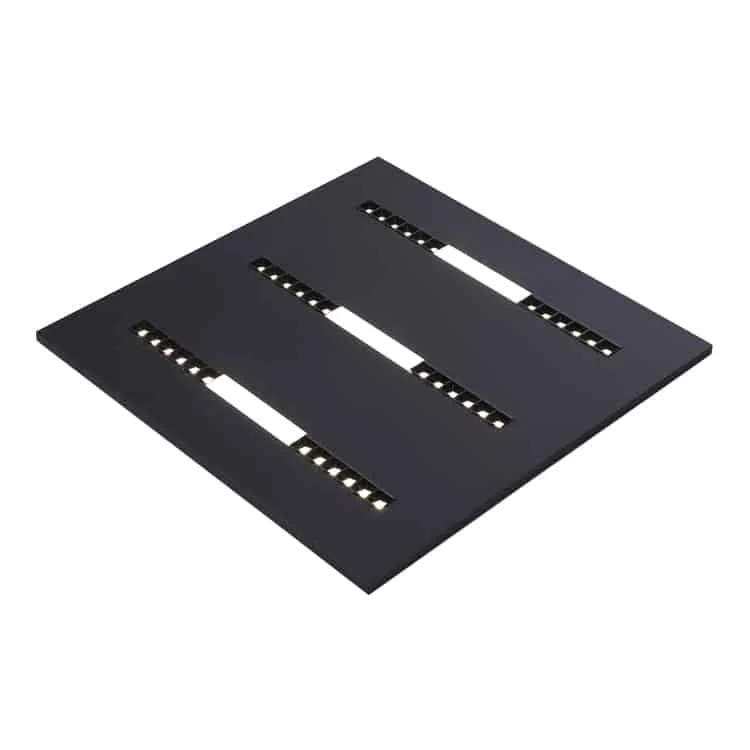

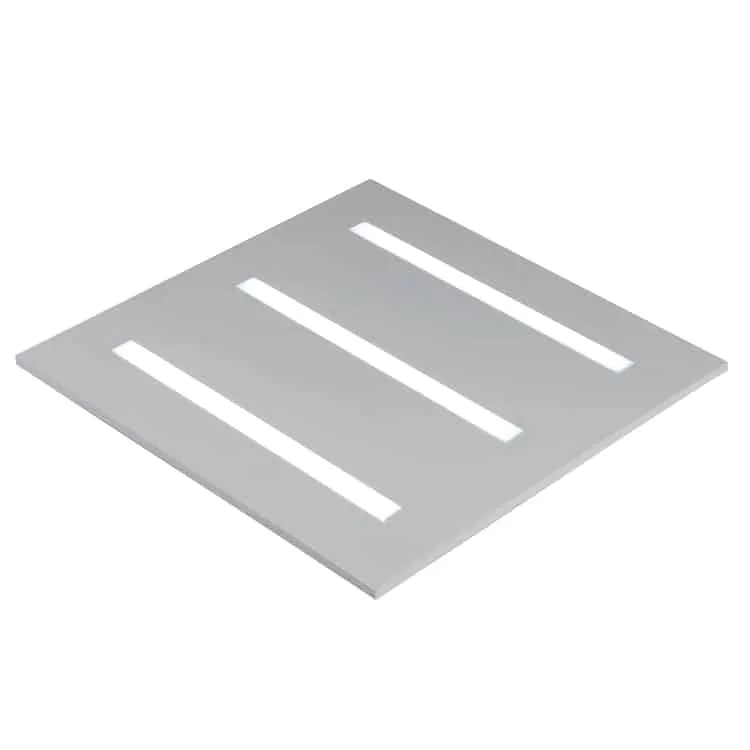

2×2 LED Grille Panel Light Fixtures 40W | Model: GR-PL6060-H

This is grille type panel LED light, including 3 types- grille spotlight, profile lights, and Combination types. The standard installation is recessed into a grid ceiling, it is also can be a surface-mounted type. They are widely used to replace the old t8 tube grille light fixtures.

  • Order Model: GR-PL6060-H Series
  • Size: 595*595*25mm
  • Power: 40W
  • Finished: Matt white as standard, matt black optional
  • Flicker-free: Yes
  • Control way: ON/OFF, but Triac/0-10V dimmable or DALI optional
  • Beam angle: 24°/ 120°
  • MOQ: 50pcs
  • Working temperature:-25℃/+55℃
  • Lifetime: 50000hrs
  • Warranty: 3/5 years
  • Certificate: CE RoHS
  • Payment: Paypal, T/T
  • Origin: Made in China

GRNLED offers the best price in the market.

Order ModelWattageDimensionLumensCRI(Ra)Power factorUGRColor TemperatureInput voltageDatasheet
GR-PL6060-40WH40W±5%595*595*25mm3800-4100lm>80>0.9<193000K4000K6500K110/220-240VAC 50/60HzDownload
GR-PL6060-48WH-A48W±5%595*595*25mm4800-5200lm>80>0.9<193000K4000K6500K110/220-240VAC 50/60HzDownload
GR-PL6060-60WH-A60W±5%595*595*25mm6000-6600lm>80>90<193000K4000K6500K110/220-240VAC 50/60HzDownload

Materials & Finished

  • A heat sink (Housing): Metal bottom, 2.5mm thickness-3mm thickness, Matt white as standard, Matt black optional.
  • Diffuser/cover: Polystyrene PS Cover.
  • Lens: High temperature resistant optical lens, uniform light emission

Control Gear/LED Driver

  • Brand: LiFud/Eagleries/OSRAM/PHILIPS
  • Input voltage:220-265VAC 50/60Hz
  • Power Factor:>0.9
  • Efficiency:>88%
  • Surge protection:1-2KV
  • Type: ON/OFF
  • Working life:>50000Hrs
  • IP Rate: IP20
  • Certificates: CE ENEC TUV CB
  • Warranty: 2/3/5years

Optical

  • LED Chips: SMD2835
  • Color rendering index:>80
  • Lumens:100lm/W
  • SDCM:<5
  • Color temperature: 3000K/4000K/6500K
  • TRIAC/0-10V/DALI dimmable
  • Emergency backup (30% power with 1hrs 2hrs or 3Hours duration)
  • Surface mounted type
  • Recessed installation is A standard version, just put it onto the grid ceiling, easy installation.
  • Suspension installation is available, but the steel ropes for hanging need to be ordered additionally.

Commercial lighting projects, including offices, meeting rooms, supermarkets, schools, and hospitals

Backlit LED light panel
