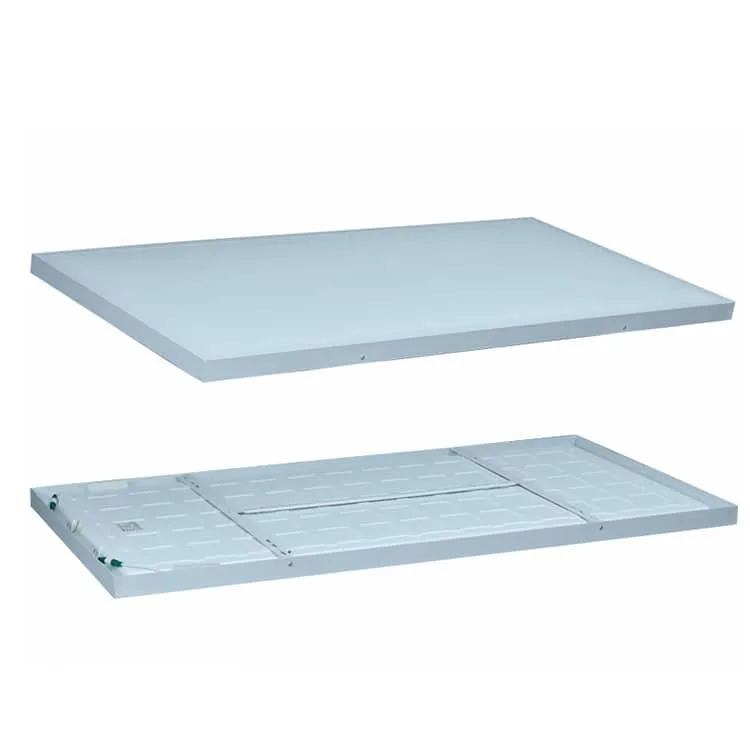

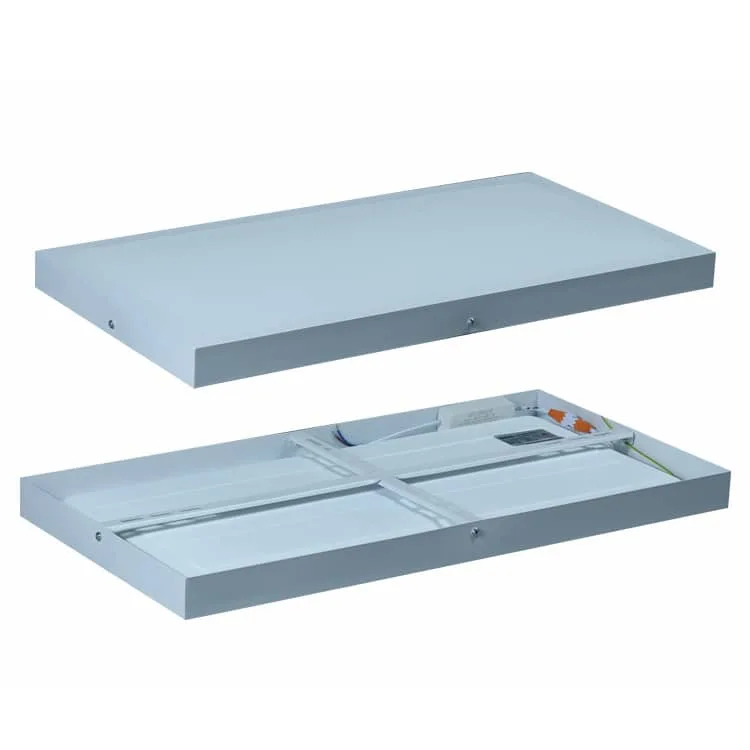

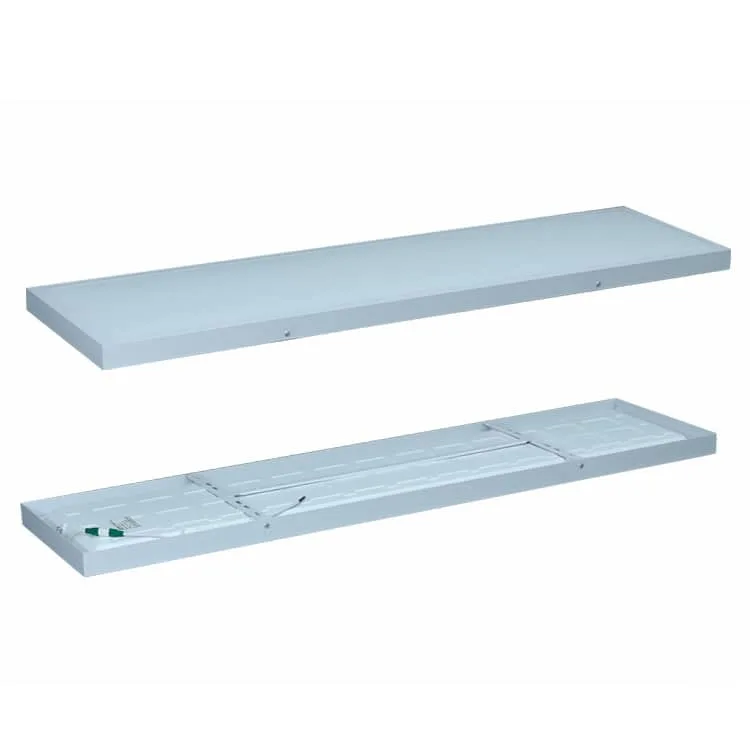

Surface Mounted LED Panel Light 600×600 1200×600 1200×300

These surface-mounted LED panel lights are improved on the base of backlit panel lights, and integrated with an extra surface-mounted part. It is easy to do surface-mounted installation when there is no ceiling. widely used for commercial lighting.

  • Order model: GR-PL-F series
  • Power: 24W 30W 36W 40W 48W 60W 72W
  • Thickness: 39mm
  • Control way: ON/OFF as standard, dimmable is optional
  • Free flicker: Yes
  • Mounted: Surface mounted installation
  • Lifetime: >50000Hrs
  • Working temperature:-25℃/+60℃
  • Warranty: 3/5 years
  • Certificate: CE RoHS
  • Payment: Paypal, T/T
  • MOQ: 50pcs/model

GRNLED offers the best price in the market.


Order ModelWattageDimensionLumensCRI(Ra)Power factorUGRColor TemperatureInput voltageDatasheet
GR-PL6030-24WF24W±5%600*300*39mm2400-2900lm>80>0.5<203000K4000K6500K110/220-277VAC 50/60HzDownload
GR-PL6060-40WF 40W±5%600*600*39mm4000-4800lm>80>0.9<203000K4000K6500K110/220-277VAC 50/60HzDownload
GR-PL6060-48WF48W±5%600*600*39mm4800-5900lm>80>0.9<203000K4000K6500K110/220-277VAC 50/60HzDownload
GR-PL-6060-60WF60W±5%600*600*39mm6000-7200lm>80>0.9<203000K4000K6500K110/220-277VAC 50/60HzDownload
GR-PL12030-40WF40W±5%1200*300*39mm4000-4800lm>80>0.9<203000K4000K6500K110/220-277VAC 50/60HzDownload
GR-PL12060-72WF72W-80W±5%1200*300*39mm7200-8200lm>80>0.9<203000K4000K6500K110/220-277VAC 50/60HzDownload

Materials & Finished

  • Outer trim: Die-cast Aluminum, white finished
  • Bottom: Metal, white powder coated, >0.25mm thickness.
  • Cover: PS diffuser plate.>1.0mm thickness
  • Surface bracket: Metal.

Control gear/driver

  • Led driver brand: LiFud/Eagleries brand as a standard; Osram/ Philips optional.
  • Input voltage:110/220V-240VAC 50/60Hz
  • THD:<15%
  • PF:0.5-0.9
  • Surge protection:1-2KV
  • IP rate: IP20
  • Efficiency:>85%
  • Working life: 50000Hrs
  • Certificates: CE RoHS TUV CB ENEC
  • Warranty: 3/5Years

Optical

  • LED Chips brand: Bridgelux / Philips SMD chips
  • Lumens: 110-130lm/W output
  • CRI:>80
  • SDCM:<5 or <3
  • Color temp:2700-3000k, 4000-4500k, 6000-6500k
  • Selecting TRIAC/0-10V/DALI dimmable driver to be dimmable LED panel lights.
  • Emergency backup (30% power with 1hrs 2hrs or 3Hours duration)

Commercial lighting projects, including offices, meeting rooms, supermarkets, schools, and hospitals

Backlit LED light panel
