3CCT & Wattages Tunable LED Panel Lights

tunable white led panel light
Tunable white panel led light
Tunable led panel lights 2x2

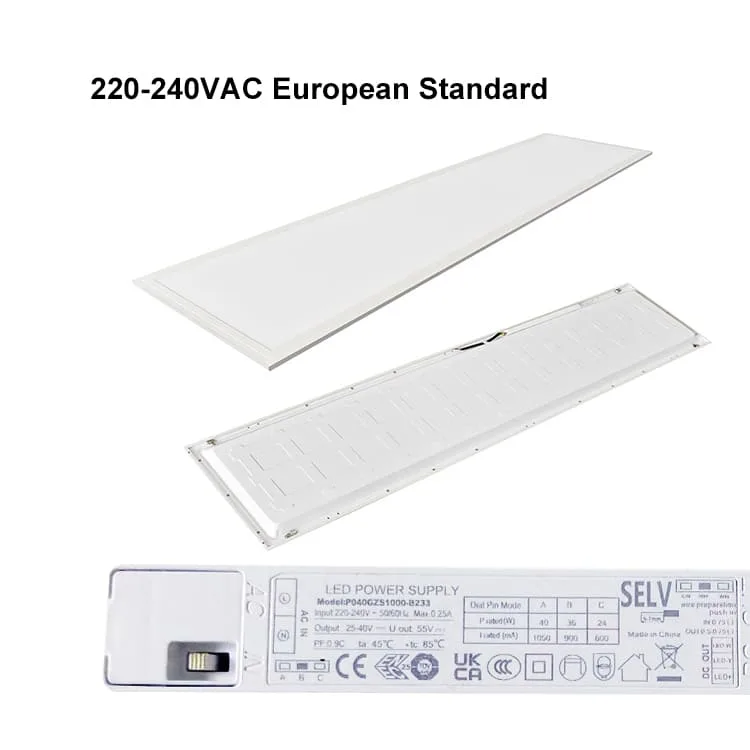

tunable white led panel 4x1
adjustable wattages led panel 4x2
  • tunable white led panel light
  • Tunable white panel led light
  • Tunable led panel lights 2x2
  • tunable white led panel 4x1
  • adjustable wattages led panel 4x2

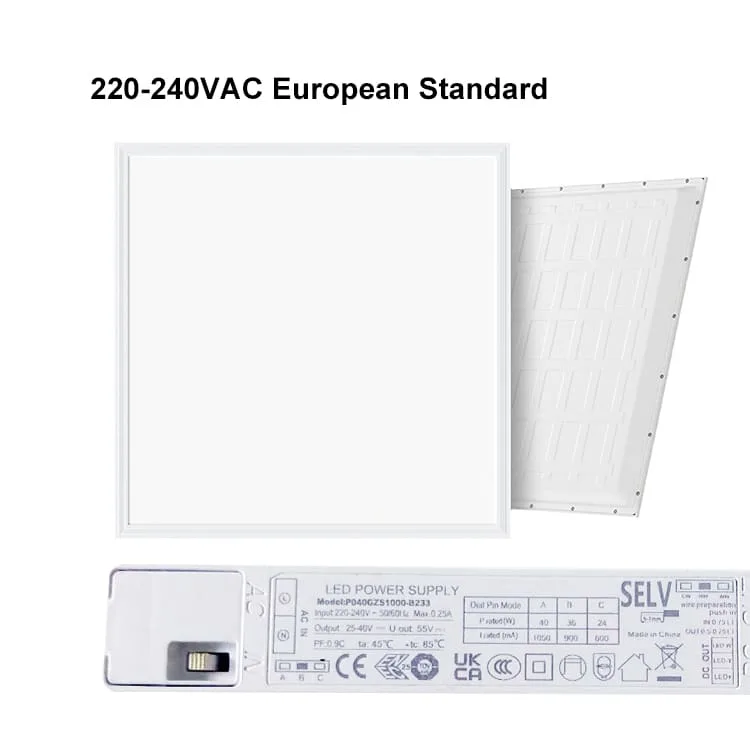

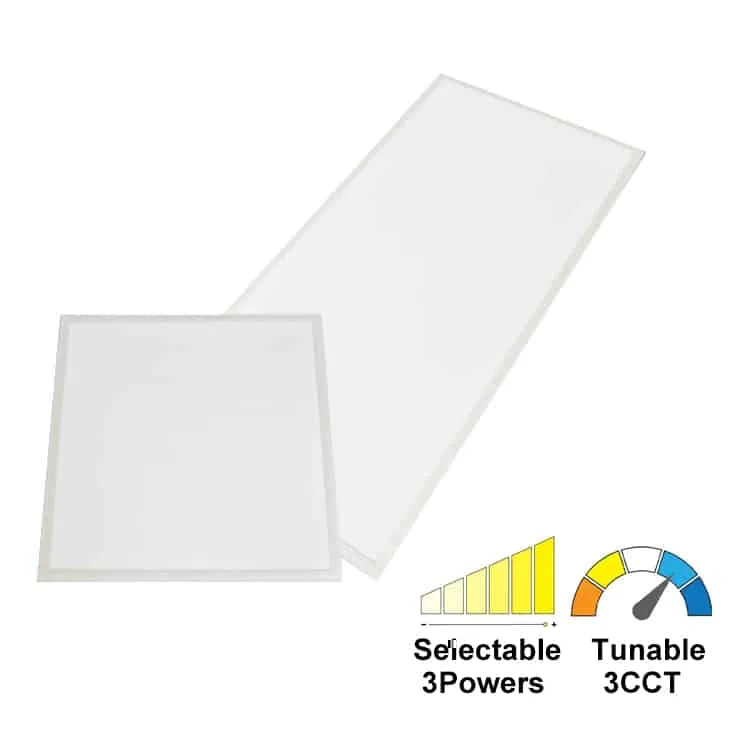

    • This suspended LED panel light features dual color temperature LED chips and a special selectable LED driver with two DIP switches, allowing CCT and wattage adjustment in one fixture.

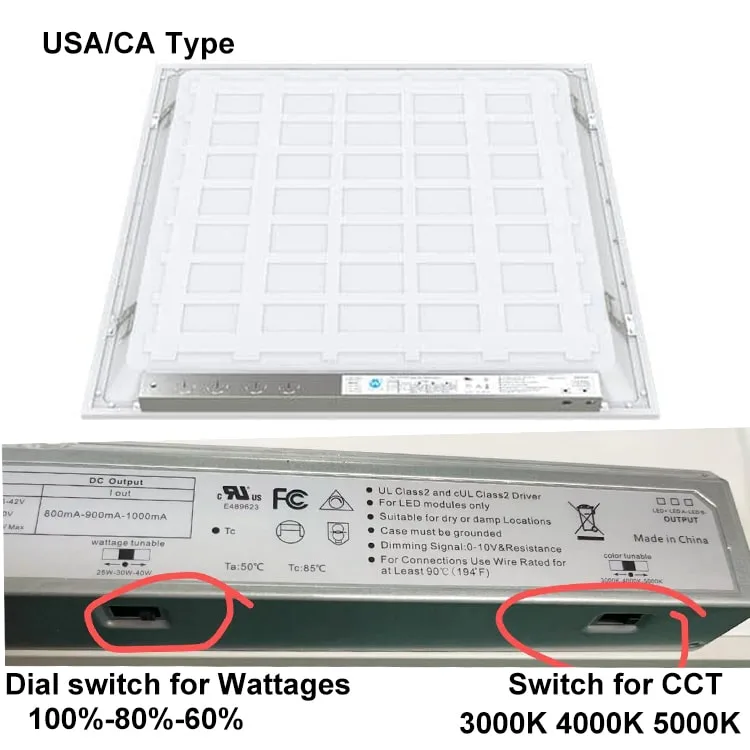

    Users can easily select color temperature ( 3000K / 4000K / 5000K or 6000K ) and wattage levels ( 100% / 80% / 60% ) through the DIP switches — no extra controller required.
    One light covers 9 different combinations of CCT and wattage, helping distributors and wholesalers reduce inventory cost, while increasing flexibility for different project requirements. Two electrical versions available 220–240VAC for EU market,100–277VAC → for USA / Canada.

    • Order Model: GR-PL6060-D (CCT) Series
    • Size: 2x1ft; 2x2ft; 4×1; 4x2ft.
    • Mounting: suspended, recessed.
    • Finished: Matt white
    • Flicker-free: Yes
    • Control way: ON/OFF for European markets; 0-10V dimmable for USA/CA markets
    • MOQ: 50pcs
    • Working temperature:-25℃/+55℃
    • Lifetime: 50000hrs
    • Warranty: 3/5 years
    • Certificate: CE RoHS ETL
    • Origin: Made in China

    GRNLED offers the best price in the market.

    QUOTE
    Order ModelWattage SelectableDimensionLumensCRI(Ra)Power factorColor TemperatureInput voltageDatasheet
    GR-PL6030-24WD (CCT)24W-20W-18W295*595*32mm100-120lm/W>80 or 90>0.93000K4000K 5000K selectable by DIP switch110/220-240V/277vAC 50/60HzDownload
    GR-PL6060-40WD (CCT)40W-30W-25W595*595*32mm(standard)
    603*603*32mm(USA)
    620*620*32mm(Germany)    		100-120lm/W>80 or 90>0.93000K4000K 5000K selectable by DIP switch110/220-240V/277vAC 50/60HzDownload
    GR-PL12030-40WD(CCT)40W-30W-25W1195*295*32mm(standard)
    1213*301*32mm(USA)    		100-120lm/W>80 or 90>0.93000K4000K 5000K selectable by DIP switch110/220-240V/277vAC 50/60HzDownload
    GR-PL12060-60WD (CCT)60W-50W-40W1195*595*32mm(standard)
    1213*603*32mm(USA)    		100-120lm/W>80 or 90>903000K4000K 5000K selectable by DIP switch110/220-240V/277vAC 50/60HzDownload

    Materials & Finished

    • A heat sink (Housing): Metal bottom, 2.5mm thickness-3mm thickness, Matt white as standard, Matt black optional.
    • Diffuser/cover: Polystyrene PS Cover.
    • Lens: High temperature resistant optical lens, uniform light emission

    Control Gear/LED Driver

    • Brand: LiFud/Eagleries/OSRAM/PHILIPS/ ZY with DIP Switch for power selectable and color temperature selectable.
    • Input voltage:220-240VAC for European markets, 100-277VAC for USA and CA markets 50/60Hz
    • Power Factor:>0.9
    • Efficiency:>88%
    • Surge protection:1-2KV
    • Type: ON/OFF as standard. but for USA/CA, it is ok to be 0-10V dimmable panel light with selectable powers and CCT.
    • Working life:>50000Hrs
    • IP Rate: IP44
    • Certificates: CE ENEC TUV CB ETL
    • Warranty: 3/5years

    Optical

    • LED Chips: SMD2835
    • Color rendering index:>80 or >90
    • Lumens:100-120lm/W
    • SDCM:<5
    • Color temperature: 3000K/4000K/5000/6500K
    • Emergency backup (30% power with 1hrs 2hrs or 3Hours duration)
    • Surface mounted frame and suspended ropes for hanging installation.
    • Recessed installation is A standard version, just put it onto the grid ceiling, easy installation.
    • Suspension installation is available, but the steel ropes for hanging need to be ordered additionally.

    Commercial lighting projects, including offices, meeting rooms, supermarkets, schools, and hospitals

    Q: Can this panel light be installed in a recessed manner?

    A: Yes, of course. Recessed and suspended installation as you need.

    Backlit LED light panel
