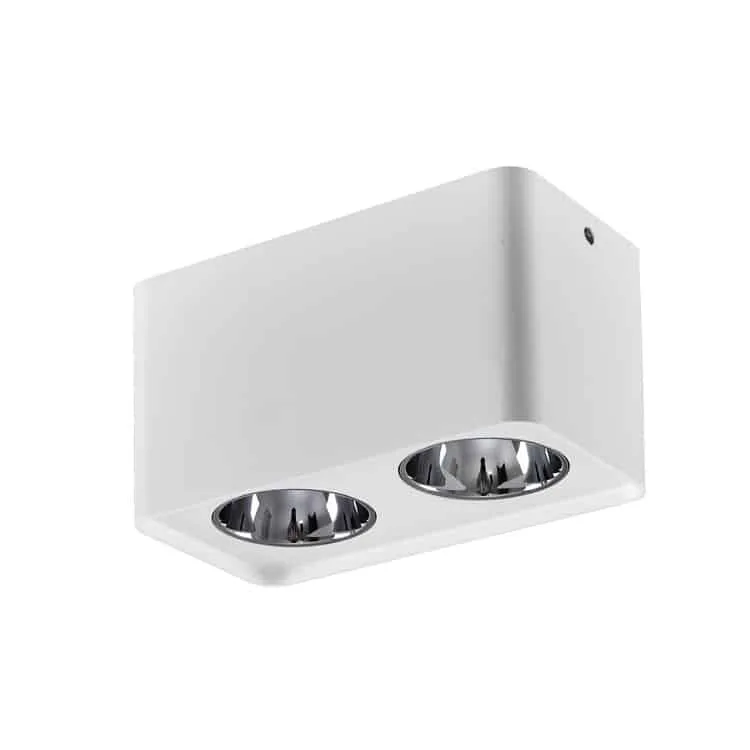

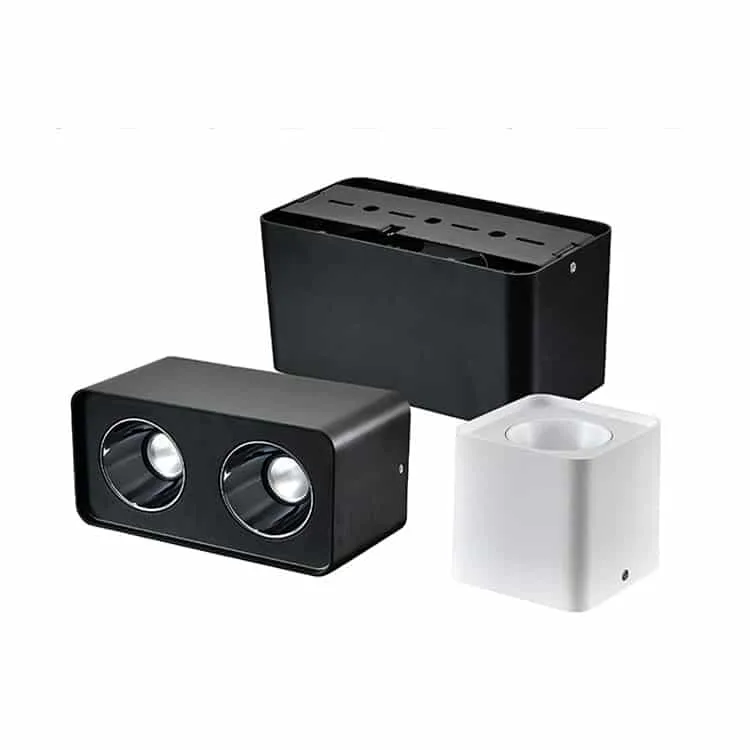

Zigbee Smart Surface Mount Downlights | Model: GR-DL-BZ

GR-DL-BZ is a surface mount smart downlight fixture with a grille design with square and rectangle shape, including one head, double, triple heads, with a Zigbee version 3.0 smart led driver. By the smart gateway (hub) and WIFI, it can be compatible with smart speakers or voices devices such as Google Home, Amazon Alexa, and smartphone TUYA APP, and it is available to do the color changing and dimming in brightness. It is the best downlight for the smart home lighting system.

Material & Finished

  • Housing: Die-cast aluminum body, matt black/ matt white finished.

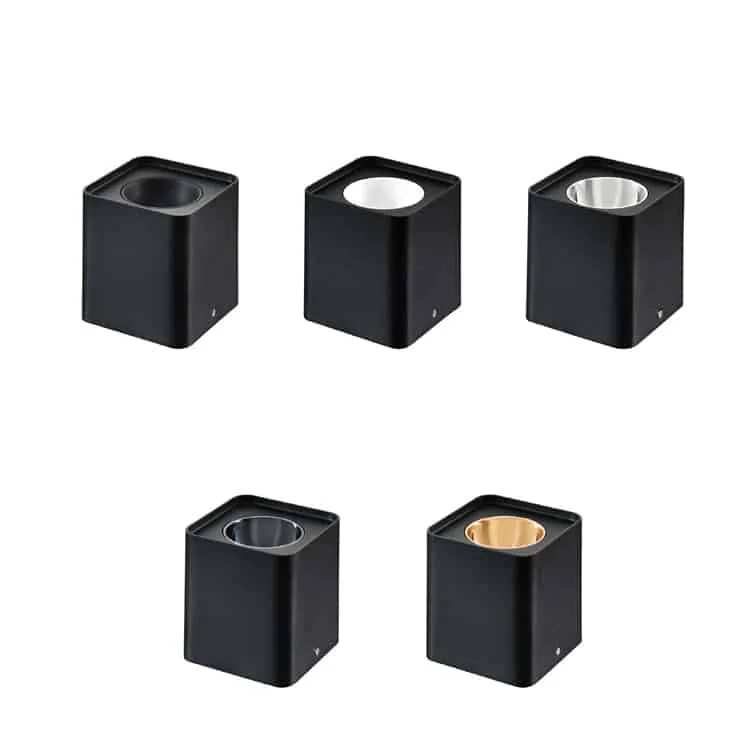

  • Reflector: High temperature resistant reflector cup, white, bright black, gold, silver available.
  • LED Driver: smart Zigbee 3.0 version led power supply, isolated and free flicker.
  • LED Chips: Bridgelux/CREE/CITIZEN COB LED Chips, CRI90 or above, high lumens.
  • Surface mounte part: Strong metal bracket to fix onto ceiling, easy to do installation.
  • Cable: UL#22 cable with fast connector, easy to do wiring.

Installation and Mounting

Fix the surface bracket onto the ceiling with screws. Connect the supply cable to the fast connector.

Electrical & Optical

  • Input voltage:110-120VAC 50/60Hz or 220-240VAC 50/60Hz.
  • Power Factor: >0.6
  • CRI(Ra):>90
  • Lumens:90lm-100lm/W output.
  • SDCM:<5
  • Efficiency:>88%
  • IP Rating: IP22 Indoor use
  • IK Rating: IK07
  • Color temperature: 3000K to 6500K adjustable.
  • Beam angle: 24/36°
  • Lifetime:>50000Hrs
  • Working temperature:-25℃/+55℃
  • Compliance: CE RoHS Certified
  • Warranty:2/3Years.

GRNLED offers the best price in the market.

Models and Details

Order modelWattageDimensionLumensColor temperatureUGRCRI(Ra)Input voltageDATASHEET
GR-DL-9WBZ9W±5%L108*W108*H110mm800-900lm3000K-6500K multicolor <19>90110-120V/220-240VAC 50/60HzDownload
GR-DL-9WBZ*29W*2±5%L202*W108*H110mm1600-1800lm3000K-6500K multicolor <19>90110-120V/220-240VAC 50/60HzDownload
GR-DL-7WBZ*37W*3±5%L298*W108*H110mm1900-2100mm3000K-6500K multicolor <19>90110-120V/220-240VAC 50/60HzDownload
