Led Batten Fitting with LED Tube Lights | GR-T8XX

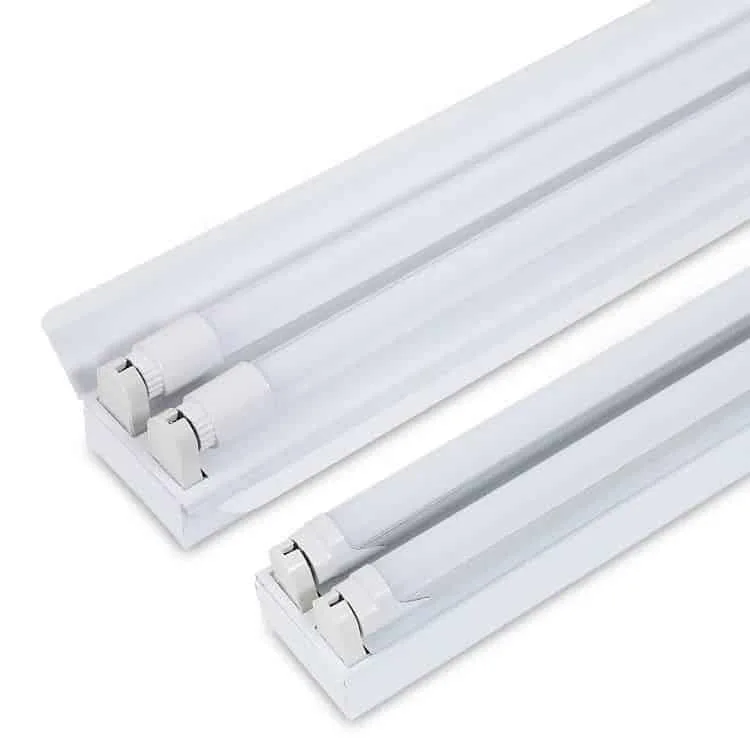

These led tube fitting fixtures with T8 LED Tube lights, including both fitting and t8 led tube lights, single led t8 tube lights and double t8 led tube lights are optional it is available to remove the led tube light from fitting, easiest to do the replacements and maintenance. The original version for fitting is with double sides input cable. it is ok to do single input if needed. The length can be up to 8ft 2400mm, and the sockets are G13 2pin or FA8 available.

  • Ref model: GR-T8 Fitting
  • Length: 2ft 4ft 5ft 8ft
  • Type: Single/ double
  • Including T8 LED Tube: Yes
  • Control way: ON/OFF
  • Installation: Surface mounted
  • Input: double input as standard, single input optional if needed
  • Working life :>50000Hrs
  • Working temperature: -25/+55℃
  • Manufacturer warranty: 2/3 years
  • Origin: Made in China
  • Lead time:7-20days
  • Payment: Bank transfer, western Union, Paypal
  • MOQ: 300pcs/Model

GRNLED offers the best price in the market. MOQ:200PCS

Order modelTypeWattageDimensionBaseLumensColor temperatureBeam anglePower FactorInput voltageDATASHEET
GR-T860-9WSSingle9WL620*W48*H60mmG13900-1000lm3000K,400K,6500K120°>0.92100-240VAC 50/60HzDownload
GR-T8120-18WSsingle18WL1230*W48*H60mmG131700-1900lm3000K,400K,6500K120°>0.92100-240VAC 50/60HzDownload
GR-T8150-22WSSingle22WL1530*W48*H60mmG132100-2300lm3000K,400K,6500K120°>0.92100-240VAC 50/60HzDownload
GR-T860-9W*2Double18WL620*W76*H70mmG131700-1900lm3000K,400K,6500K120°>0.92100-240VAC 50/60HzDownload
GR-T8120-18W*2Double36WL1230*W76*H70mmG133500-3700lm3000K,400K,6500K120°>0.92100-240VAC 50/60HzDownload
GR-T8150-22W*2Double44WL1530*W76*H76mmG134200-4500lm3000K,400K,6500K120°>0.92100-240VAC 50/60HzDownload
GR-T8240-36W*2Double72WL2420*W76*H70mmFA87000-7300lm3000K,400K,6500K120°>0.92100-240VAC 50/60HzDownload

Body & Finished

  • Fitting: 0.3-0.55mm thickness iron. white powder coated.
  • LED Tube body: Aluminum body+PC Cover.
  • PCB: Aluminum with SMD2835 Chips
  • LED Chips: Epistar SMD2835 chips, 100lm/W output, CRI80. LM80.
  • Driver: Non-isolated constant current driver, high power factor, and efficiency.

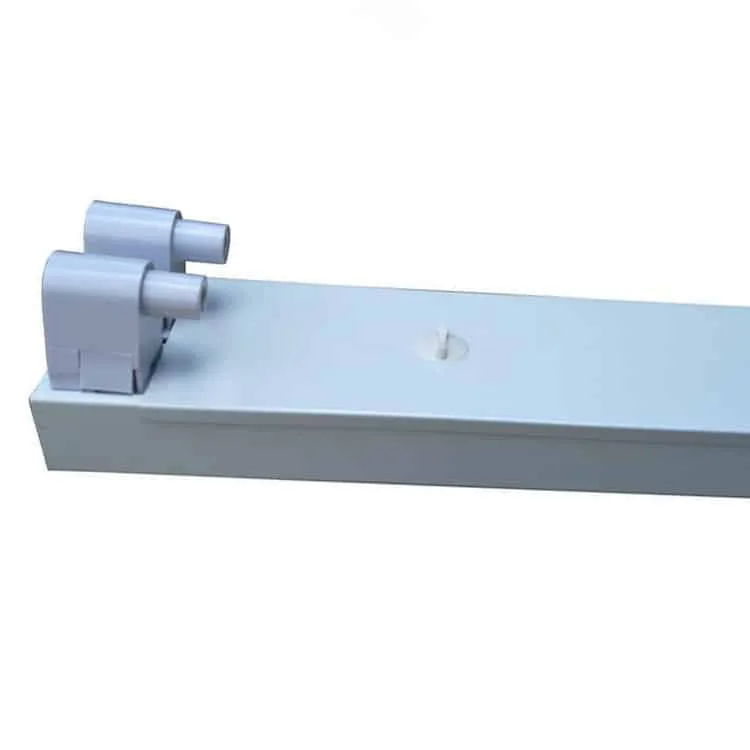

  • Socket: 2pin G13 Base for 2ft 3ft 4ft 5ft 6ft, but for 8ft will be with FA8 base.

Electrical & Optical

  • Input voltage:100-240VAC 50/60Hz
  • Power Factor:>0.95
  • Base: G13 2pin or FA8
  • CRI(Ra):>80
  • SDCM:<5
  • Efficiency:>88%
  • IP Rating: IP20 indoor use
  • Installation: Surface mounted
  • Color temperature: 3000K Warm white; 4500K Natural white, 6000K cool white.
  • Beam angle: 120°
  • Lifetime:>50000Hrs
  • Working temperature:-30℃/+55℃
  • Compliance: CE RoHS Certified
  • Warranty:2/3Years.
  • Emergency backup

Just use screws to fix the fitting on the wall or ceiling, then connect wires 110V OR 220V, then install the T8 LED Tube lights onto the fixture.
