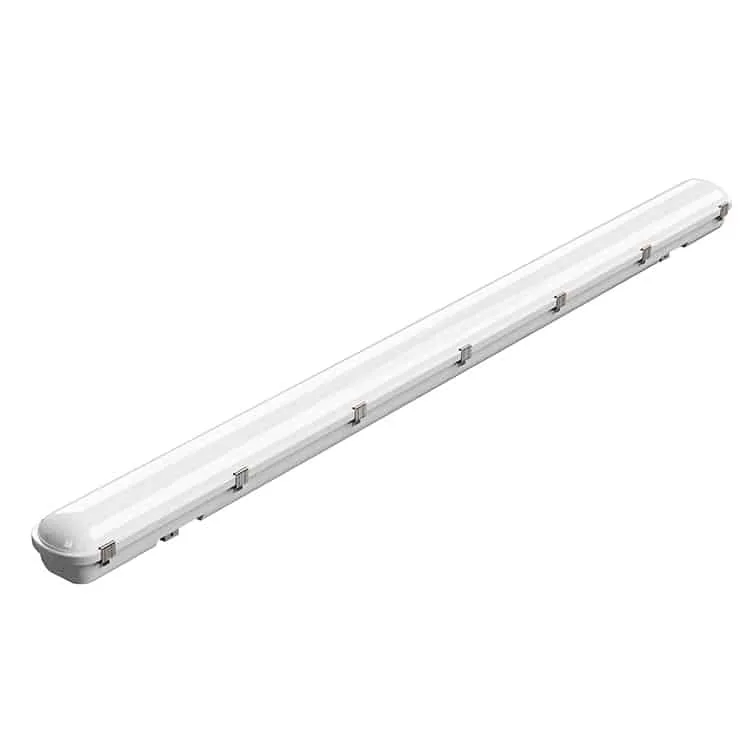

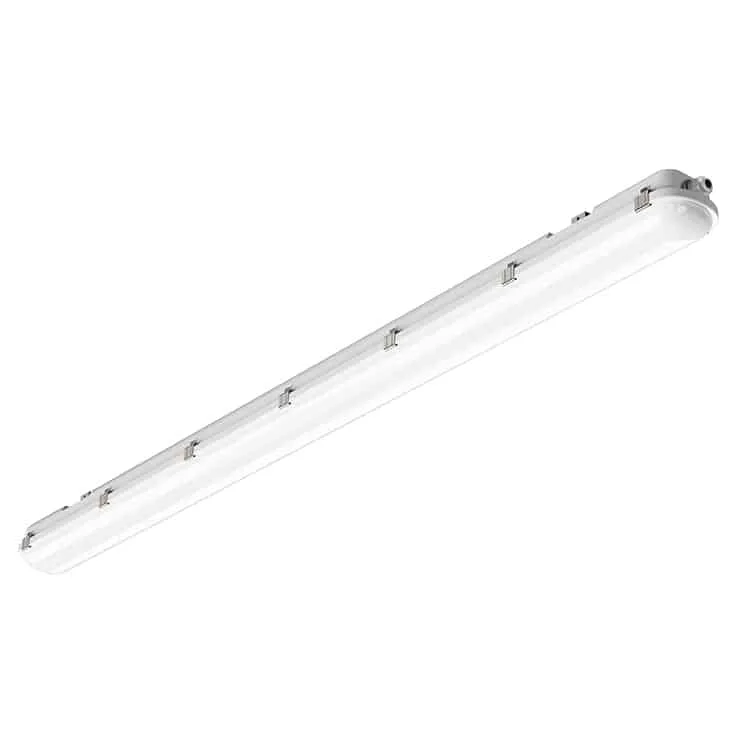

2ft/4ft/5ft Linear Led Parking Garage Lighting Fixture

GR-TP-D Series is a kind of LED parking garage lighting fixture with a polycarbonate body, polycarbonate cover, and steel clips, including 2ft 4ft 5ft in length. It is ok to do the motion sensor or microwave radar sensor, and emergency kits version (30% power duration 1-3 hours).

  • Ref Model: GR-TP-D Series
  • Length: 2ft (600mm), 4ft (1200mm), 5ft (1500mm)
  • Wattages: 20W 40W 60W
  • Protection grade: IP65 Waterproof; IK08
  • Materials: PC Bottom+ Milky PC Cover
  • Luminaire lumens:120lm/W
  • Installation mounted: Surface mounted/ wall mounted/ ceiling mounted /Suspended
  • Dimmable: No, but 0-10V / Triac dimmable / DALI dimmable is optional
  • Free flicker: Yes
  • Manufacture warranty: 3/5 years
  • Origin: Made in China
  • MOQ: 30pcs/model

GRNLED offers the best price in the market.


Order modelWattageInchDimensionLumensColor temperatureIk ratingIP RateInstallationInput voltageDATASHEET
GR-TP-2F2D20W2ftL600*W110*H80mm2400lm3000K,4000K,6500KIK08IP65Suspended/Surface-mounted100/200-240VAC 50/60HzDownload
GR-TP-4F2D40W4ftL1200*W110*H80mm4800lm3000K,4000K,6500KIK08IP65Suspended/Surface-mounted100/200-240VAC 50/60HzDownload
GR-TP-5F2D60W5ftL1500*W110*H80mm7200lm3000K,4000K,6500KIK08IP65Suspended/Surface-mounted100/200-240VAC 50/60HzDownload

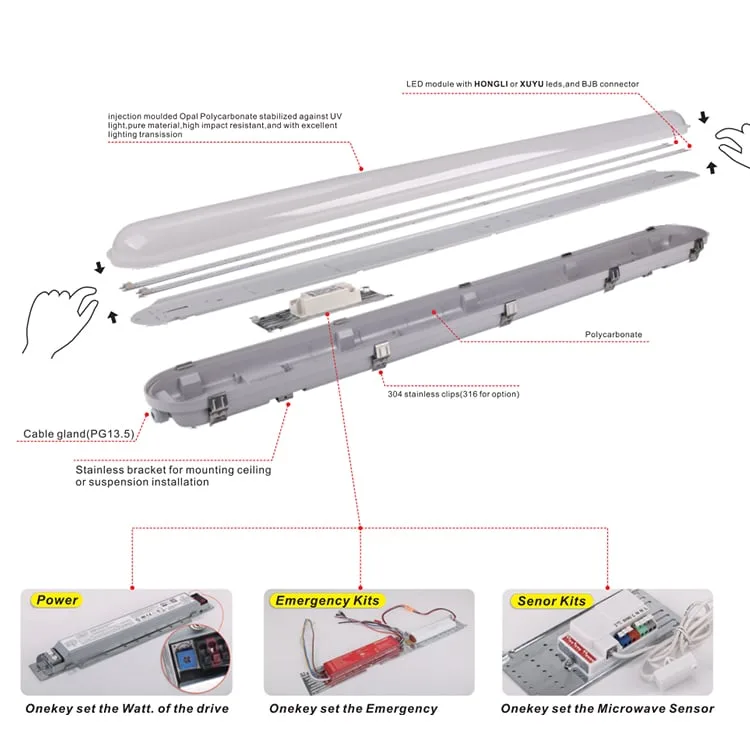

Body & Finished

  • Housing: materials as a standard, weatherproof, fireproof, flame retardant.
  • Cover: Frosted PC Cover shade as standard, Good toughness, no yellowing, strong flame retardancy.
  • Gland connector: M8-M10 waterproof gland.
  • Clip: steel stainless clips are available.
  • Surface-mounted part: Steel

Control Gear/Led driver

  • Led driver brand: The LiFud driver is a standard, Osram driver is optional
  • Input voltage: 220-240VAC 50/60Hz
  • THD:<15%
  • Power factor: 0.5 as standard, >0.9 is optional
  • Efficiency:>88%
  • IP Grade: IP20
  • Certificates: CE CB ENEC TUV
  • Warranty: 3/5 years

Optical

  • Led chips: Bridgelux SMD
  • Lumens:120-140lm/W
  • Color temperature: 3000K warm white; 4000K daylight; 6000-6500k cold white
  • LM80
  • SDCM:<5%
  • Emergency battery backup kits ( 2W-7Watt with 90-180minutes duration)
  • Steel ropes for suspension installation
  • Microwave radar sensor

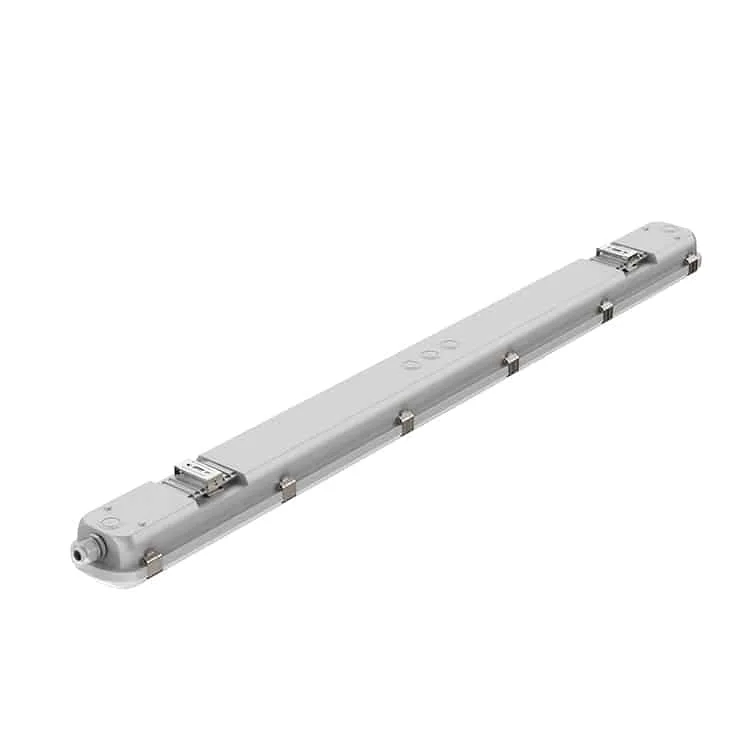

Just use screws to fix the surface parts on the ceiling or wall, then put the tri-proof fixture into the surface part. Please download the installation guide here if needed.

  • Parking lots area
  • Tunnel lighting
  • Warehouse lighting
