LED High Bay Lights 12V/DC24V/ 36V /48V/ 60V 50W-240W | Model: GR-HB-B-6

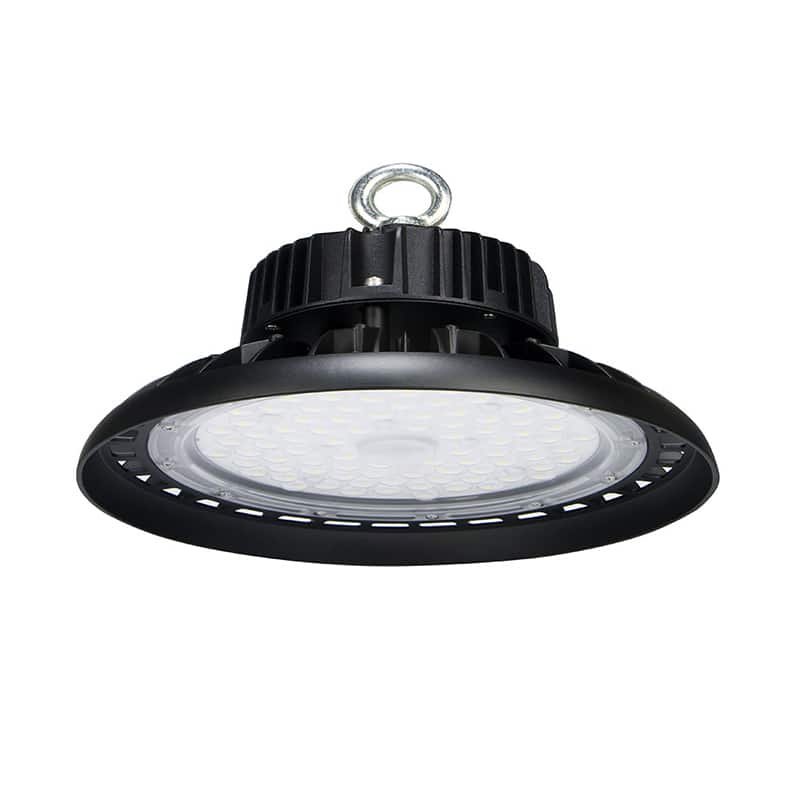

12V 24VDC LED high bay light

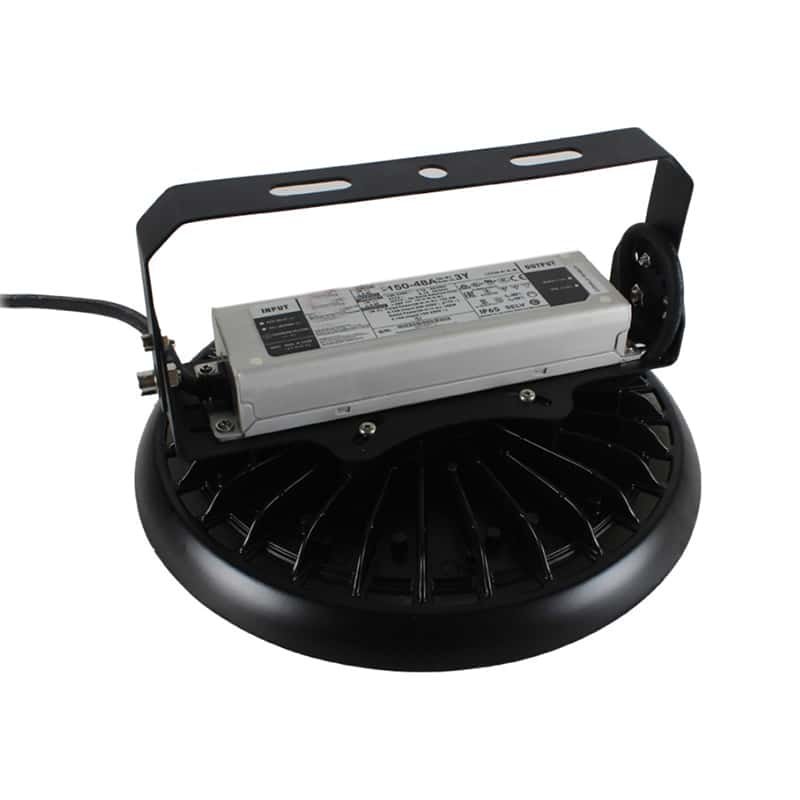

200W 240W LED high bay light DC 24V

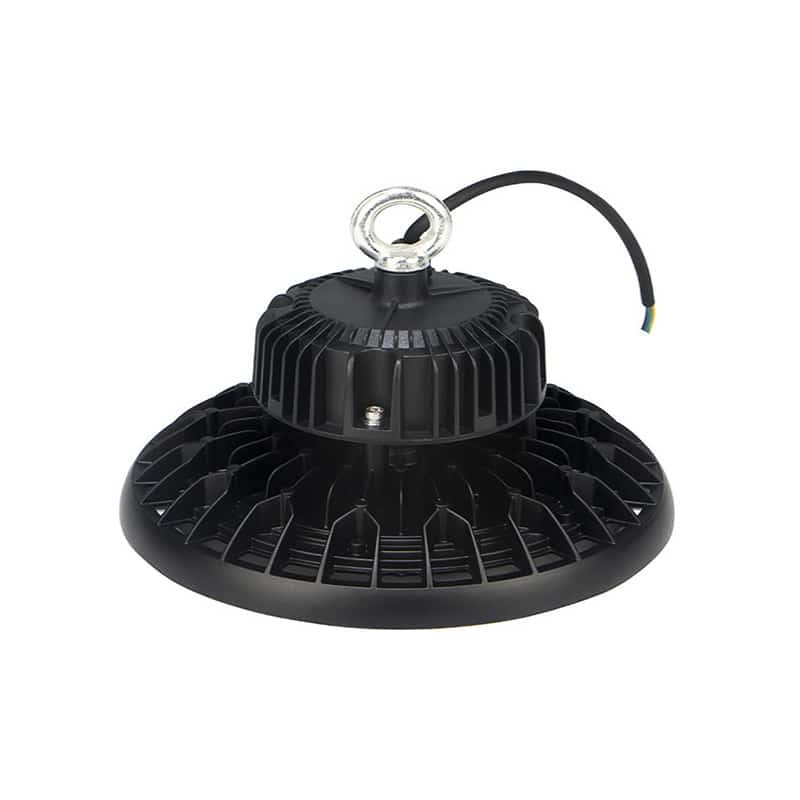

100w high bay light 12VDC

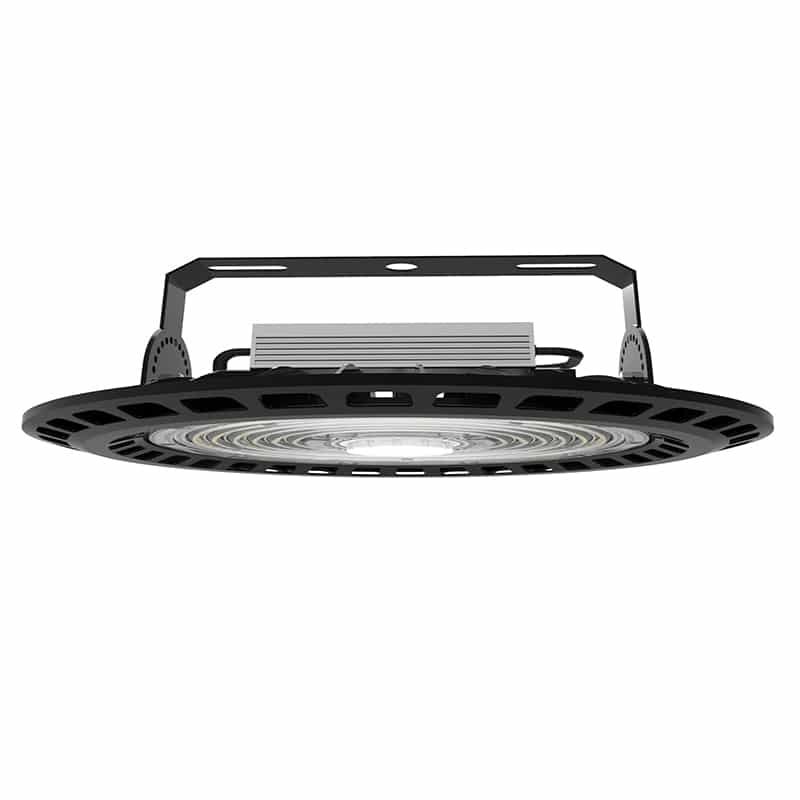

High bay LED light 36V DC

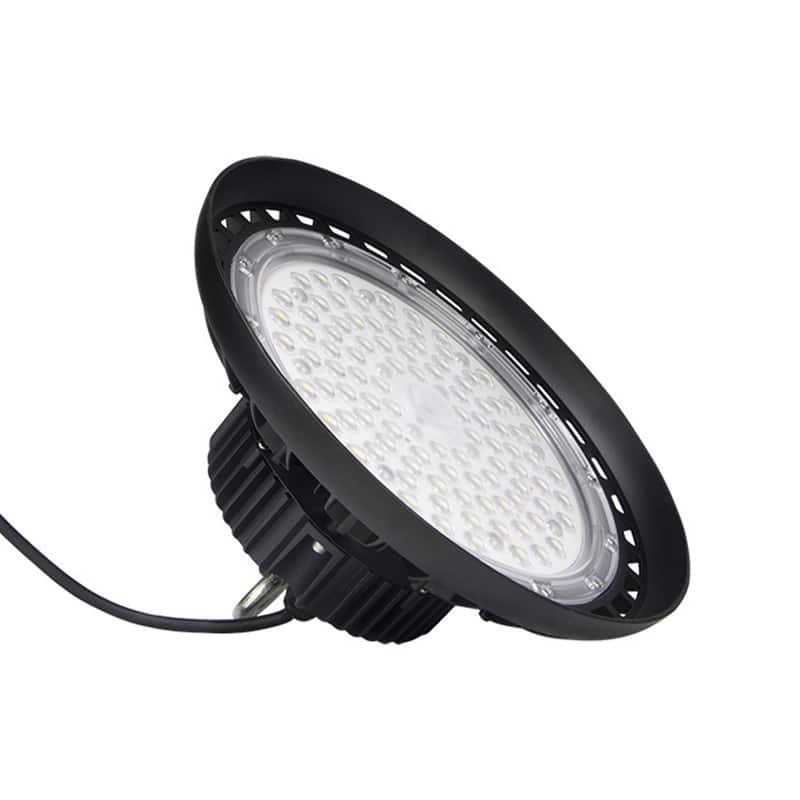

24VDC LED high bay 150W

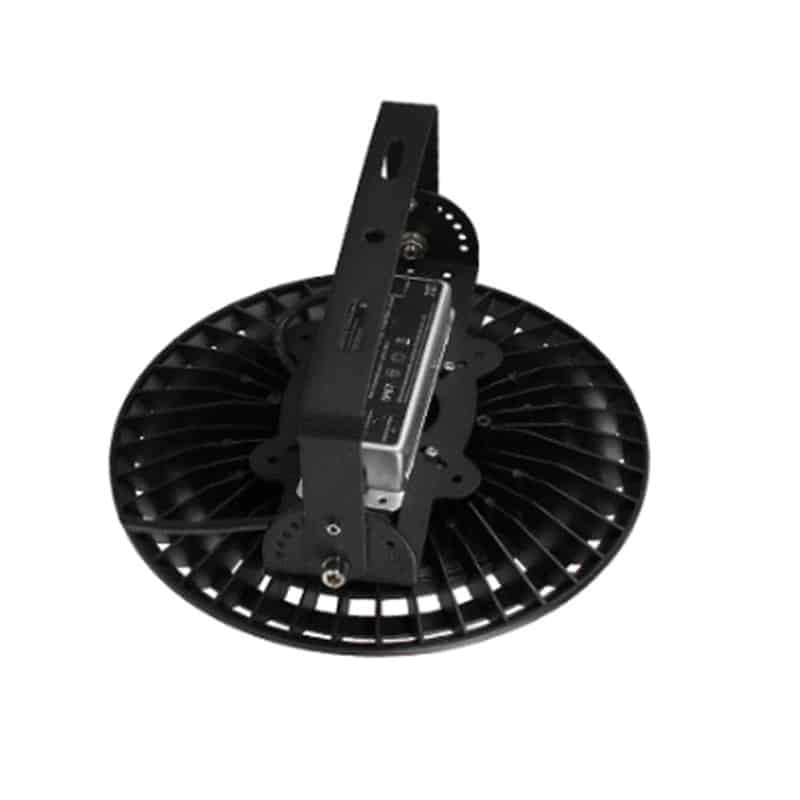

200W LED high bay light 48VDC

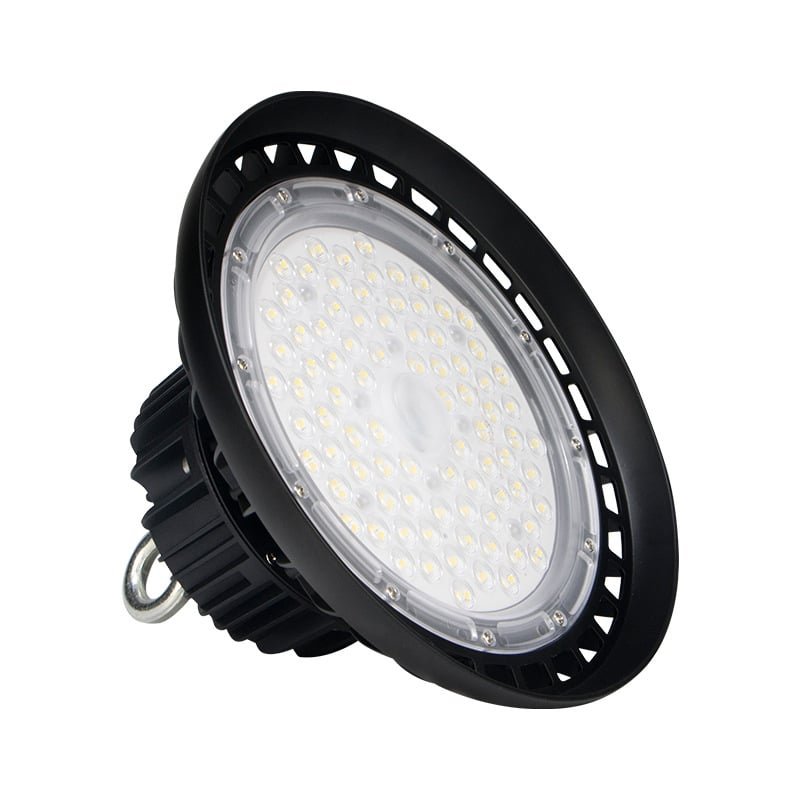

12V LED High bay lights 50W
  • 12V 24VDC LED high bay light
  • 200W 240W LED high bay light DC 24V
  • 100w high bay light 12VDC
  • High bay LED light 36V DC
  • 24VDC LED high bay 150W
  • 200W LED high bay light 48VDC
  • 12V LED High bay lights 50W

    • These round UFO LED high bay lights are specially designed with a low-voltage input LED driver, such as AC/DC 12V, 24V, 36V, 48V, and 60VDC, safe low voltage, no risk of electric shock, compatible with DC power supply, and with an IP65 waterproof structure and widely used in solar warehouses, tunnels, cold storage, mines, marine cabins, energy storage stations, and other DC low-voltage safety lighting projects. The wattages include 50W-70W-80W, 100W, 150W, 200W, and 240W, which are suitable for ceiling heights of 3 meters to 14 meters.

    DC VoltageAvailable WattagesRecommended Application
    12V50W, 80W, 100WSolar systems, RVs
    24V80W, 100W, 150W，200WTrucks, Marine boats
    36V150W, 200W, 240WIndustrial area
    48V200W, 240WTelecom base stations
    60V200W, 240WHigh ceiling warehouses
    • Installation: Suspension or surface-mounted.
    • Materials: Die-cast aluminum body + PC lens
    • Beam angle: 90/120° options
    • CCT: 3000K/4000-4500K/6000K
    • Certificates: CE RoHS
    • MOQ:50pcs/mode
    Get a Quote

    Ref NumberWattageDimensionLuminous fluxIK & IP RatingDatasheet
    GR-HB-50WB-650W ± 5%Ø250*H71mm6500-7000lmIP65 & IK08Download
    GR-HB-70WB-670W ± 5%Ø250*H71mm8400-9000lmIP65 & IK08Download
    GR-HB-100WB-6100W±5%Ø250*H71mm12000-14000lmIP65 & IK08Download
    GR-HB-150WB-6150W±5%Ø300*H74mm20000-22000lmIP65 & IK08Download
    GR-HB-200WB-6200W±5%Ø345*H77mm26000-28000lmIP65 & IK08Download
    GR-HB-240WB-6240W±5%Ø345*H76mm32000-35000lmIP65 & IK08Download

    • Bracket for surface or wall-mounted installation
    • 0-10V / DALI dimmable
    • Radar Motion Sensor

    • Warehouses & Distribution Centers – High ceilings, 24/7 operation
    • Gyms & Sports Halls – Glare-free, flicker-free lighting
    • Factories & Assembly Lines – Vibration resistant, instant on/off
    • Cold Storage & Freezers – Operate reliably at -30°C with IP65
    • Truck Maintenance Bays & Marine Sheds – 12V/24V compatible with vehicle batteries
    • Off-Grid & Solar-Powered Buildings – Efficient DC coupling, no inverter loss

    • Hook mount included: Hang from ceiling hook or unistrut channel.
    • Wiring: Two-core cable (red: positive, black: negative) – connect to your DC power supply with correct polarity.
    • Optional: Pre-wired with waterproof connector for plug-and-play.

    Q: Can I use a 12V light on a 24V system?
    A: No. Each light is fixed to the voltage you order. Using the incorrect voltage will damage the driver.

    Q: What is the maximum cable length from the power supply to the light?
    A: Depends on voltage and wattage. For 12V 50W, keep under 10m with 14AWG wire to avoid voltage drop. For 48V 240W, up to 50m is OK. We provide voltage drop tables on request.

    Q: Are these suitable for solar street lighting?
    A: Yes, especially 12V/24V models. They work directly with solar charge controllers (PWM or MPPT).

    Q: Can I get a custom voltage like 30V DC?
    A: Yes, for orders of 100+ pieces we can customize to any DC voltage between 12V and 60V.
