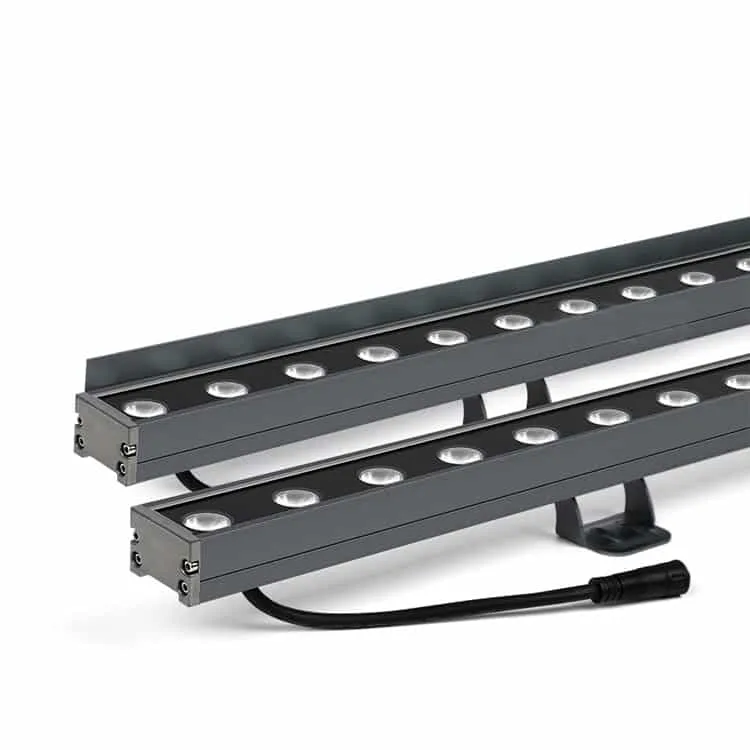

Outdoor Wall Wash Lighting | Model: GR-WW-B

GR-WW-B Series is a low voltage type outdoor wall washer bar light, mainly working with AC/DC12V or DC24V, it will be much safer to be used outdoor.

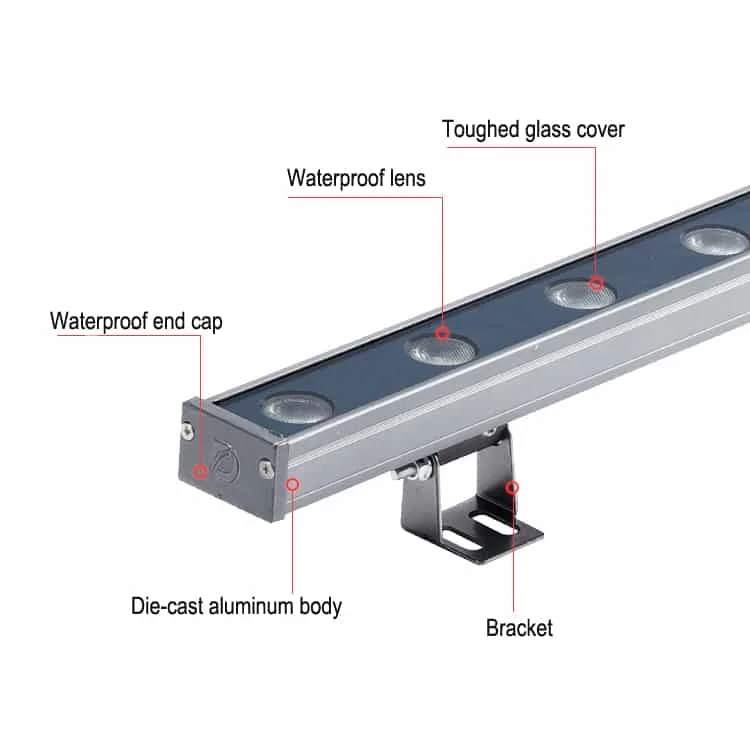

Materials & Finished

  • Housing: Die-cast aluminum body, silver/aluminum color.
  • Cover: 4mm thickness toughed glass cover, clear.
  • Lens: PMMA optical lens,30° beam angle as standard.
  • Led chips: Bridgelux high power chips, good brightness.
  • Driver: Built-in DONE Brand driver, top quality.
  • Bracket: Aluminum brackets, 180° rotation
  • Cable: 15-500cm length cable available, with waterproof connector option.

Additional Options

  • Dimmable (PWM/0-10V/DALI)
  • DMX512
  • Remote controller
  • Different length

Electrical & Optical

  • Input voltage: AC/DC12V/24V
  • Color rendering index:>80
  • IK level: IK07
  • IP Rating: IP66 outdoor use
  • Beam angle: 30°
  • Working life:>50000Hrs
  • Color temperature: 3000K-6500K Cold white/RGB
  • Working temperature:-25℃/+60℃
  • Compliance: CE RoHS Certified
  • China Manufacturer Warranty:2/3/5Years.

Installation & Mounting & Wiring

The outdoor wall washer light fixture is mainly used for wall-mounted installation or surface mounted on the ground, it is easy to do the installation. What is more, there are two different wirings ( series or parallel), you can download a PDF files to know details.

Models and Details

Order ModelWattagesDimensionLumensIP RateIK RatingColor temperatureInput voltageWorking lifeDatasheet
GR-WW-18WB18WL1000*W40*H25mm1660-1800lmIP66IK073000K/4000K/6500K/Red/Green/Blue/RGBAC/DC12V/24V>50000HrsDownload
GR-WW-24WB24WL1000*W40*H25mm2150-2400lmIP66IK073000K/4000K/6500K/Red/Green/Blue/RGBAC/DC12V/24V>50000HrsDownload
GR-WW-36WB36WL1000*W40*H40mm3300-3600lmIP66IK073000K/4000K/6500K/Red/Green/Blue/RGBAC/DC12V/24V>50000HrsDownload

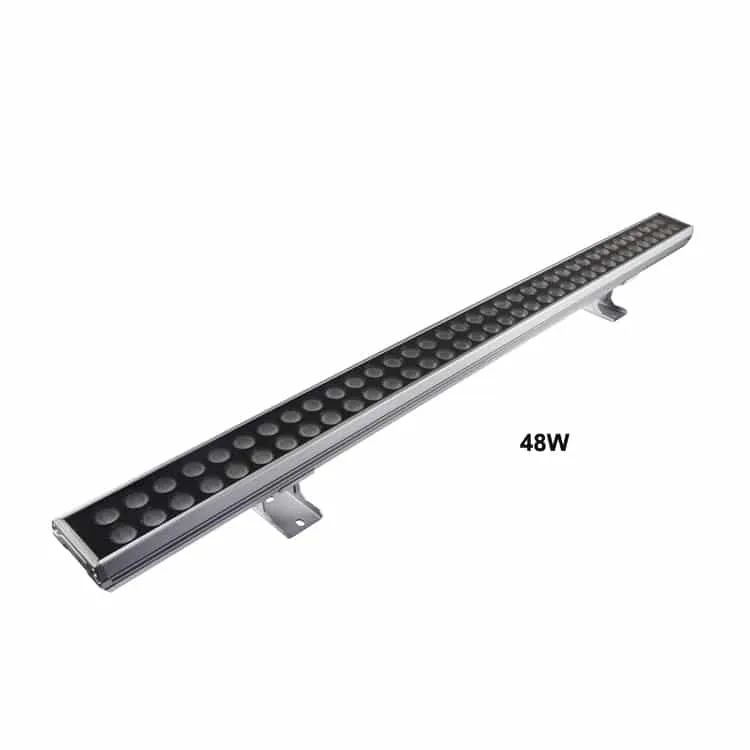

GR-WW-48WB48WL1000*W60*H29mm4300-4800lmIP66IK073000K/4000K/6500K/Red/Green/Blue/RGBAC/DC12V/24V>50000HrsDownload
