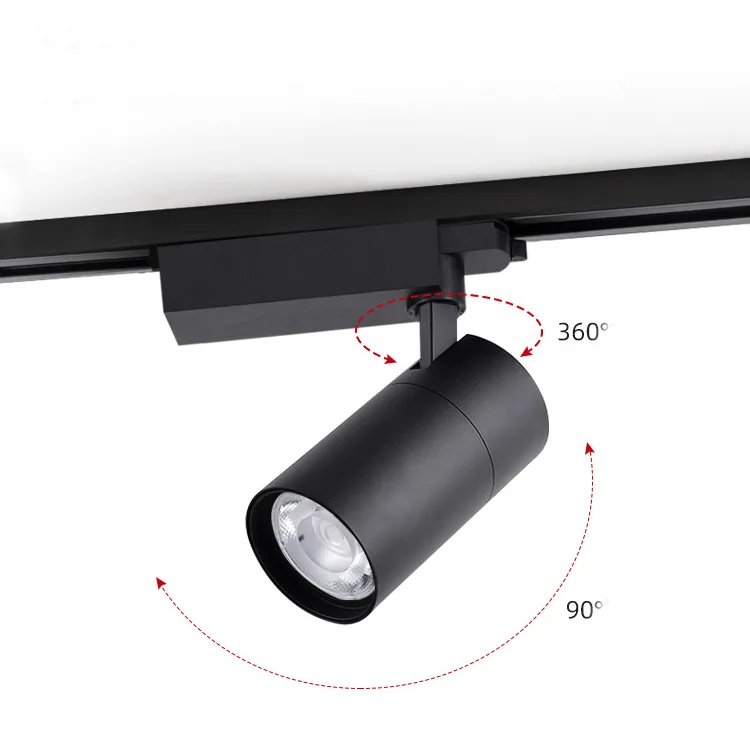

TUYA Zigbee Smart LED Track Lighting| Model: GR-TL-A-01 (Zigbee)
This smart LED track lighting, featuring a classic design, seamlessly merges the funtionality of traditional track lighting with the intelligence of latest technology. Zigbee-enabled smart track lights paired with the TUYA APP and Zigbee smart gateway enhanced control and efficiency, elevated the lighting experience. This integration enables users to control color temperature and brightness through the Smart Life APP on their smartphones.
| Order model | Wattage | Dimension | Lumens | Color temperature | PF | CRI(Ra) | Beam angle | Track heads | Input voltage | DATASHEET |
| GR-TL-10WA-01(Zigbee) | 10W±5% | Φ50x100mm | 1000lm | 3CCT Tunable | >0.9 | >90 | 15/24/36° | 2wires | 110/120V-240VAC | Download |
| GR-TL-15WA-01(Zigbee) | 15W±5% | Φ60x135mm | 1500mm | 3CCT Tunable | >0.9 | >90 | 15/24/36° | 2wires | 110/120V-240VAC | Download |
| GR-TL-20WA-01(Zigbee) | 20W±5% | Φ60x135mm | 2000lm | 3CCT Tunable | >0.9 | >90 | 15/24/36° | 2wires | 110/120V-240VAC | Download |
| GR-TL-25WA-01(Zigbee) | 25W±5% | Φ80x150mm | 2500lm | 3CCT Tunable | >0.9 | >90 | 15/24/36° | 2wires | 110/120V-240VAC | Download |
| GR-TL-30WA-01(Zigbee) | 30W±5% | Φ80x150mm | 3000lm | 3CCT Tunable | >0.9 | >90 | 15/24/36° | 2wires | 110/120V-240VAC | Download |
Body & Finished

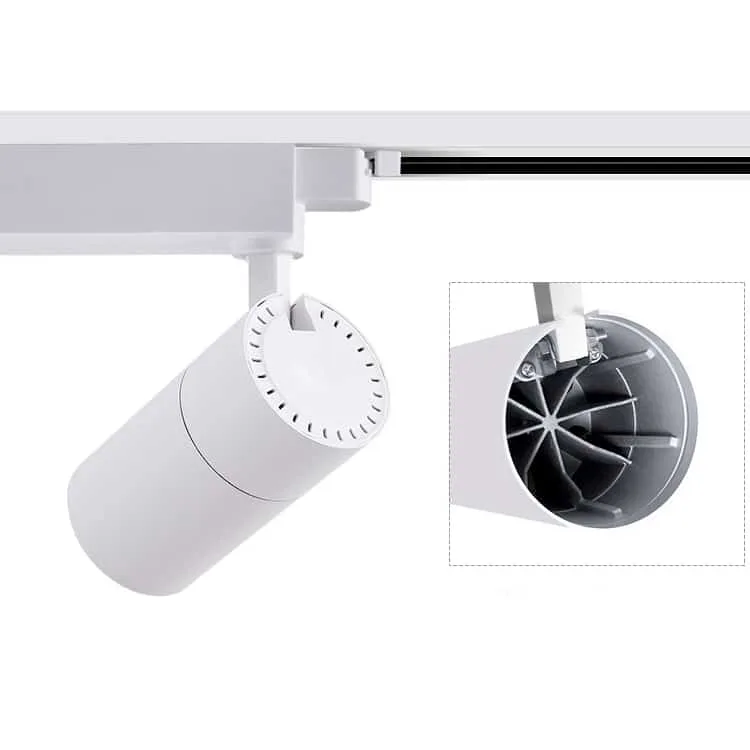

- Heat sink: die-cast aluminum body, black/white powder-coated.
- Reflector: deep design, silver
- Lens: PMMA lens, 15/24/36°.
- Track head: plastic
Control Gear/Led driver
- Control Gear Type: TUYA Zigbee smart driver
- Input voltage: 220-240VAC 50/60Hz
- THD:<15%
- Power Factor: >0.9
- Efficiency:>88%
- Certificates: CE TUV CB, ENEC
- Warranty: 3/ 5 years
Optical

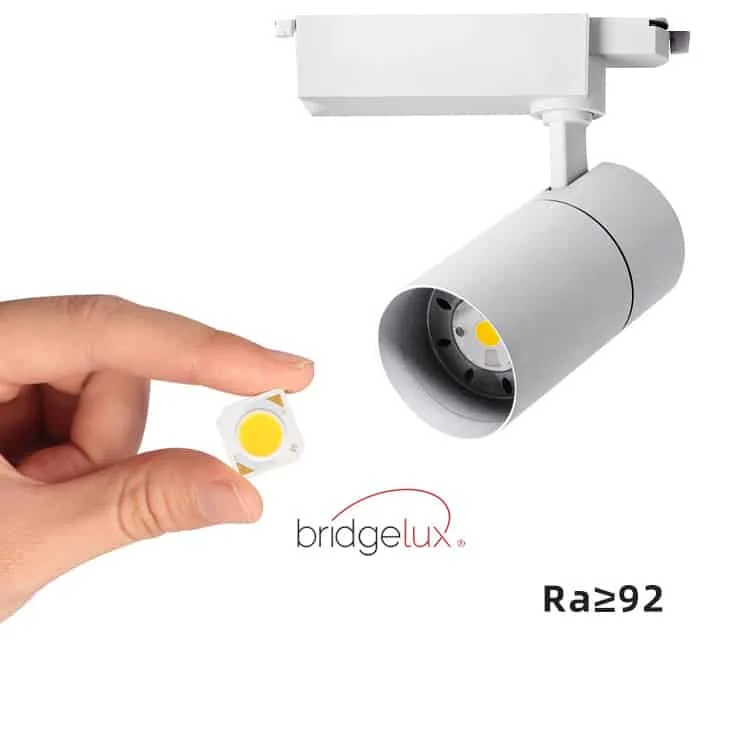

- Led chips brand: Bridgelux / Osram COB chips
- Lumens: 120-140lm/W
- CRI:>90
- Color temp: 3CCT Integrated
- LM80
- Lifetime: >100000hrs
- Phase triac dimmable/ 0-10v/DALI dimmable
Before installing the track lights, you must install the correct rails on the ceiling or wall, or you can hang the track. The 2-wire track head adapts to the 2-wire track strip.
But you need to get a Smart Zigbee gateway to connect wirelessly led track light and your smartphone.
- Supermarkets
- Shopping mall
- Offices
- hotels, restaurants
- bars
