Slim Square Surface LED Downlight|12W-35W| White/Black

square surface LED panel downlight

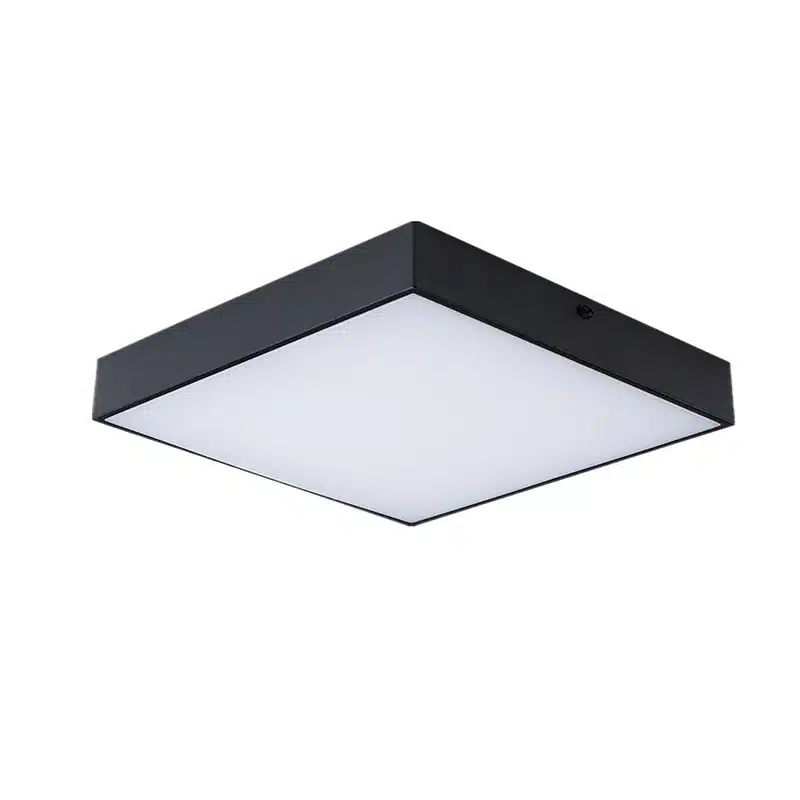

black ultra thin surface mounted LED downlight 12W-35W

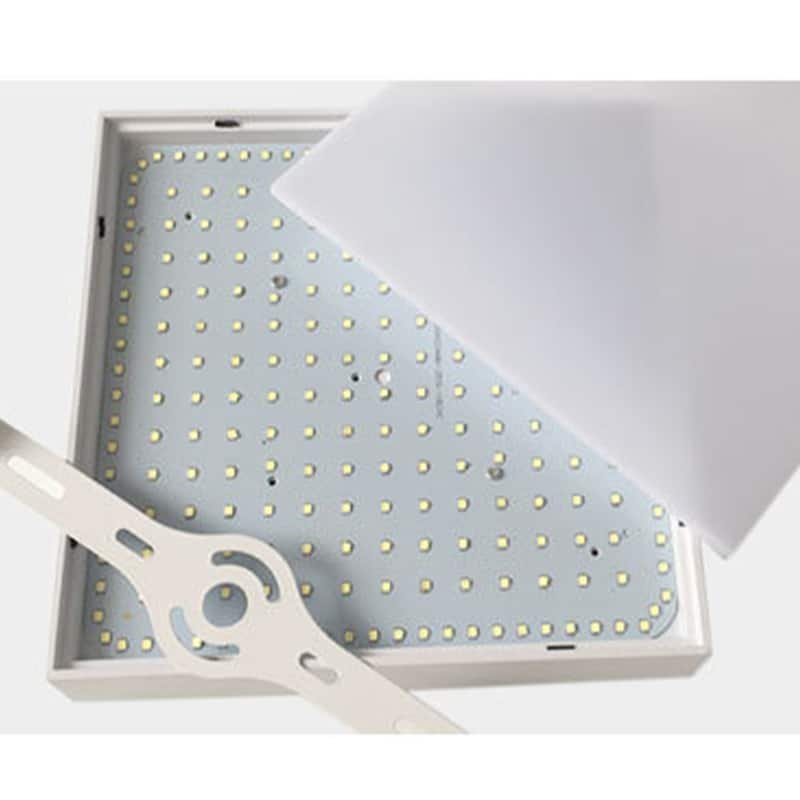

backlit square surface mounted led downlight

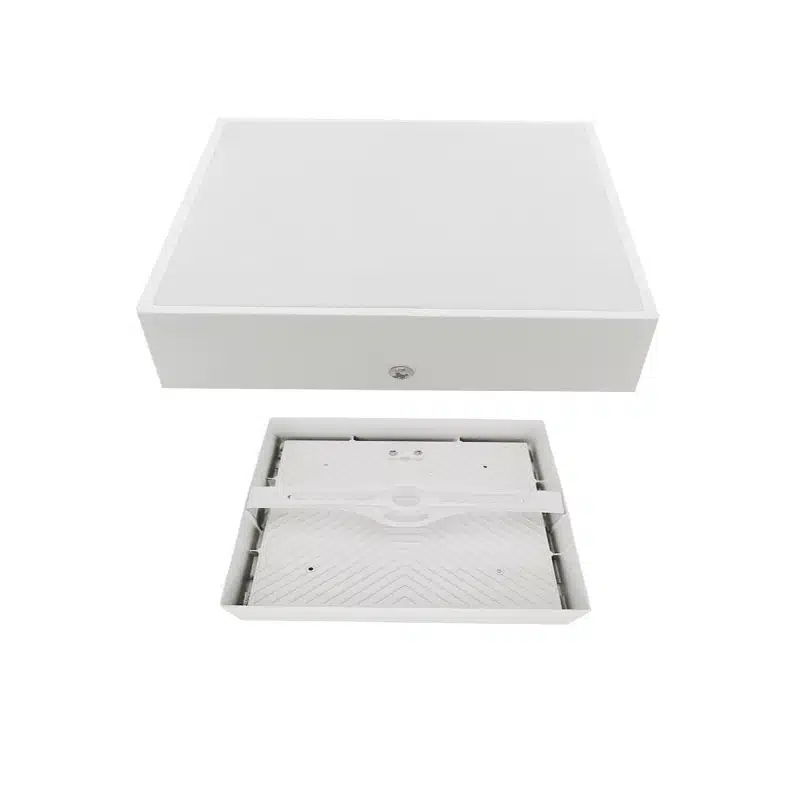

slim surface LED downlight

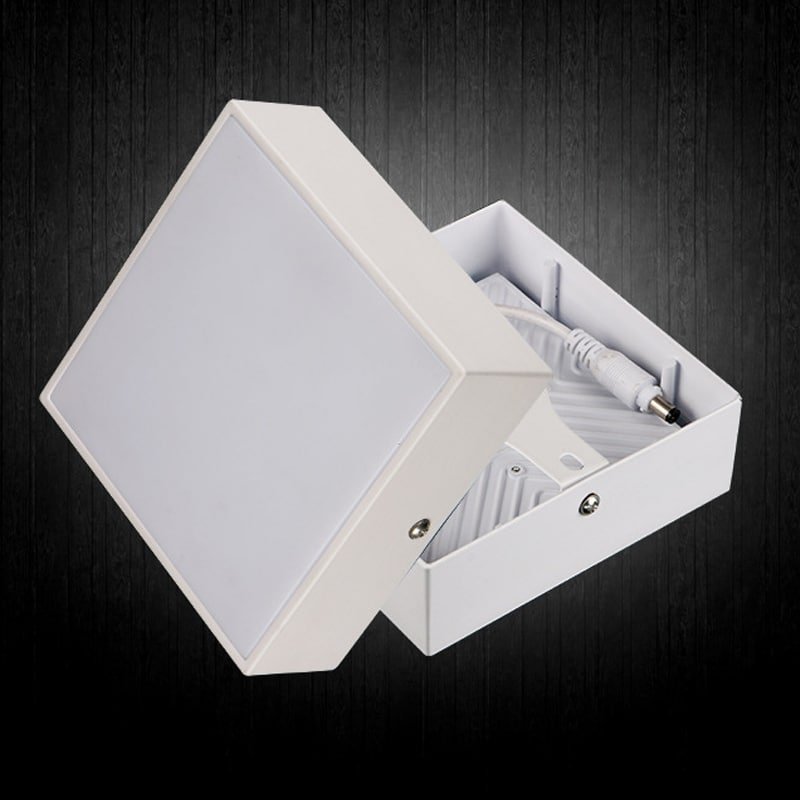

slim ceiling mounted downlights
  • square surface LED panel downlight
  • black ultra thin surface mounted LED downlight 12W-35W
  • backlit square surface mounted led downlight
  • slim surface LED downlight
  • slim ceiling mounted downlights

    • This square surface-mounted LED downlight is a slim design; the height is only 40mm. Available in matt white/black finish. And it is a backlit emission, with much better heat performance, and higher lumens output than the old surface panel downlight. Widely used for commercial lighting for hospitals, hotels, offices, schools, and shopping malls.

    • Shape: square
    • Control way: ON/OFF, dimmable available if needed
    • Input voltage: 110/220-240VAC 50/60Hz
    • Power factor: >0.5 as standard, 0.9 options
    • THD:<15%
    • Material: Die-cast aluminum body+Opal Diffuser
    • Finished: Matt white as standard, matt black options
    • Beam angle: 120°
    • IP rating: IP20
    • LED chips: Bridgelux/Osram SMD
    • CRI:>80
    • SDCM:< 5 or 3
    • Color temperature: 2700K-3000K/4000k-4500K/5700-6000K
    • Working life: >50000Hrs
    • Manufacturer warranty: 3/5 years
    Get a Quote

    Ref NumberWattageDimensionIP ratingLuminous fluxDownload
    GR-FM-12WD-112W±5%L120*W120*H40mmIP20630-700lmDatasheet
    GR-FM-15WD-115W±5%L120*W120*H40mmIP20900-1100lmDatasheet
    GR-FM-18WD-118W±5%L175*W175*H40mmIP201350-1500lmDatasheet
    GR-FM-24WD-124W±5%L175*W175*H40mmIP202350-2500mmDatasheet
    GR-FM-30WD-130W±5%L225*W225*H40mmIP201250-1400lmDatasheet
    GR-FM-35WD-135W±5%L225*W225*H40mmIP201800-2000lmDatasheet

    • Phase dimming /0-10V/DALI Dimmable
    • Low voltage DC12V/DC24V/DC36V/DC48V/60V
    • Emergency battery backup.
