Adjustable Surface Mini LED Spotlight 7W-12W|Matt Black/White

adjustable surface cylinder downlights
adjustable spotlights surface
Adjustable surface cylinder spotlight
adjustable surface mounted spotlights
adjustable ceiling mounted spotlights
adjustable surface mini spotlight
  • adjustable surface cylinder downlights
  • adjustable spotlights surface
  • Adjustable surface cylinder spotlight
  • adjustable surface mounted spotlights
  • adjustable ceiling mounted spotlights
  • adjustable surface mini spotlight

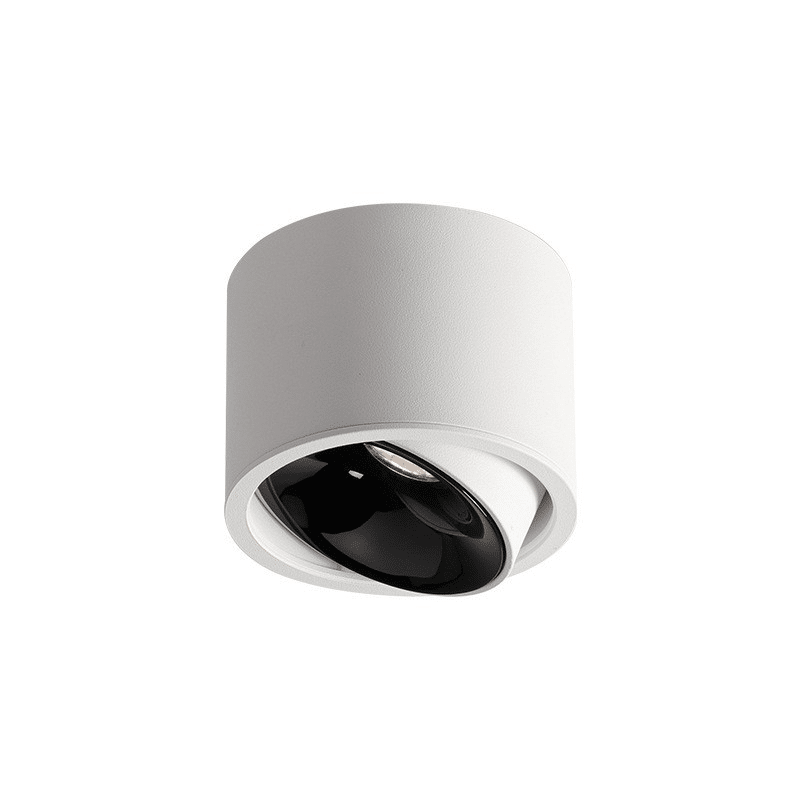

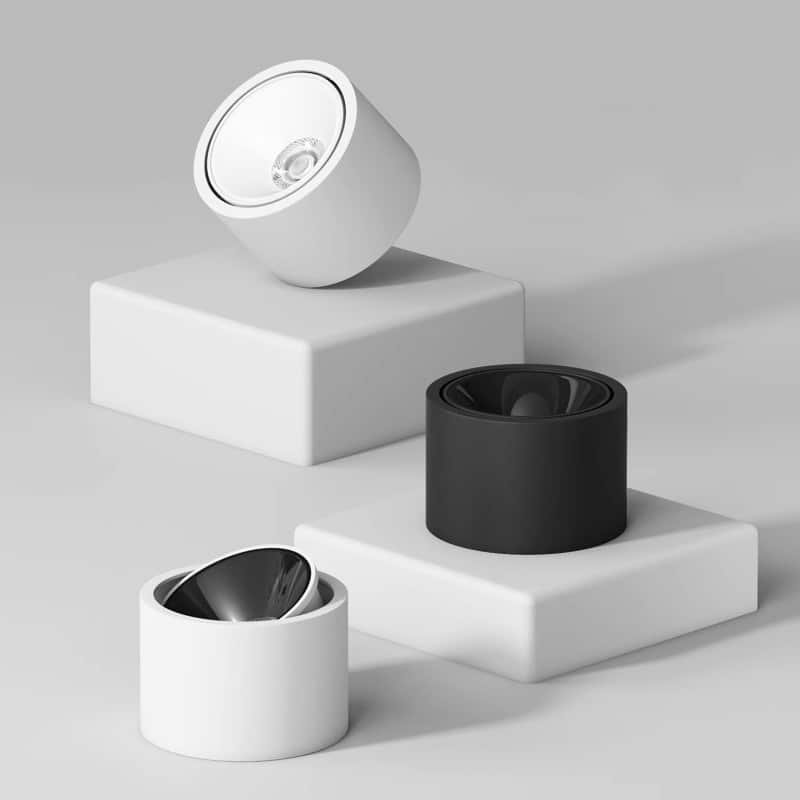

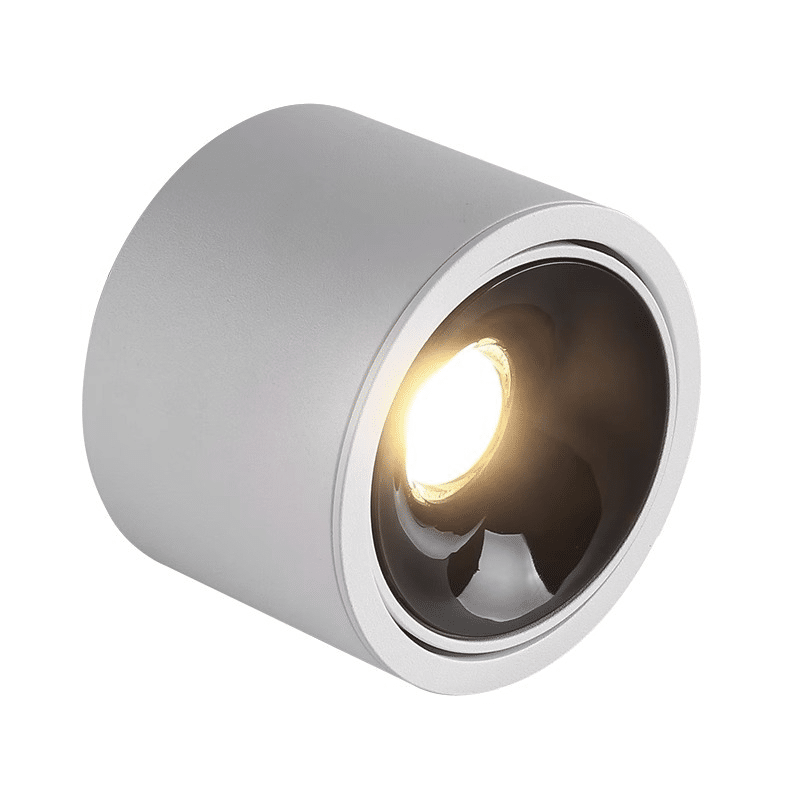

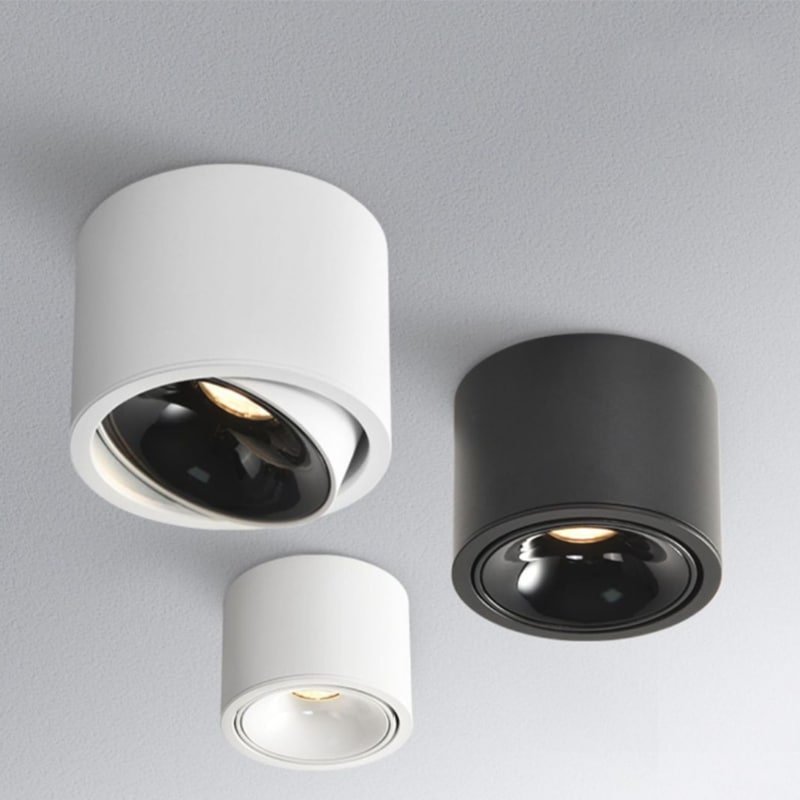

    • This small, mini surface-mounted downlight features a deep reflector and a 25° adjustable left and right direction. The lamp body and reflector are available in black and white to meet the diverse lighting needs of residential and commercial applications.

    • IP Grade: IP20 interior use
    • Beam angle: 15/24/36°
    • Installation: Surface-mounted
    • Material: Die-cast aluminum body, matt white/matt black options
    • Reflector: plastic, white/black color options
    • LED driver: built-in isolated driver included
    • Input voltage: 120/220-240VAC 50/60Hz
    • PF:>0.5 or 0.8
    • THD: < 15%
    • LED source: Bridgelux/Osram COB
    • CRI:>90 or >95
    • SDCM:<5 or 3
    • Color temperature: 3000K/4000K/6000K
    • Working life: >50000Hrs
    • Certificates: CE RoHS
    • Manufacturer warranty: 3/5 years
    Get a Quote

    Ref NumberWattageDimensionLuminous fluxDownload
    GR-FM-7WA-87W ± 5%Ø70*H55mm650-700lmDatasheet
    GR-FM-10WA-810W ± 5%Ø90*H65mm850-1000lmDatasheet
    GR-FM-12WA-812W ± 5%Ø115*H85mm1000-1200lmDatasheet

    • Phase triac dimmable
    • Low voltage AC/ DC12V/DC24V/DC36V/DC48V

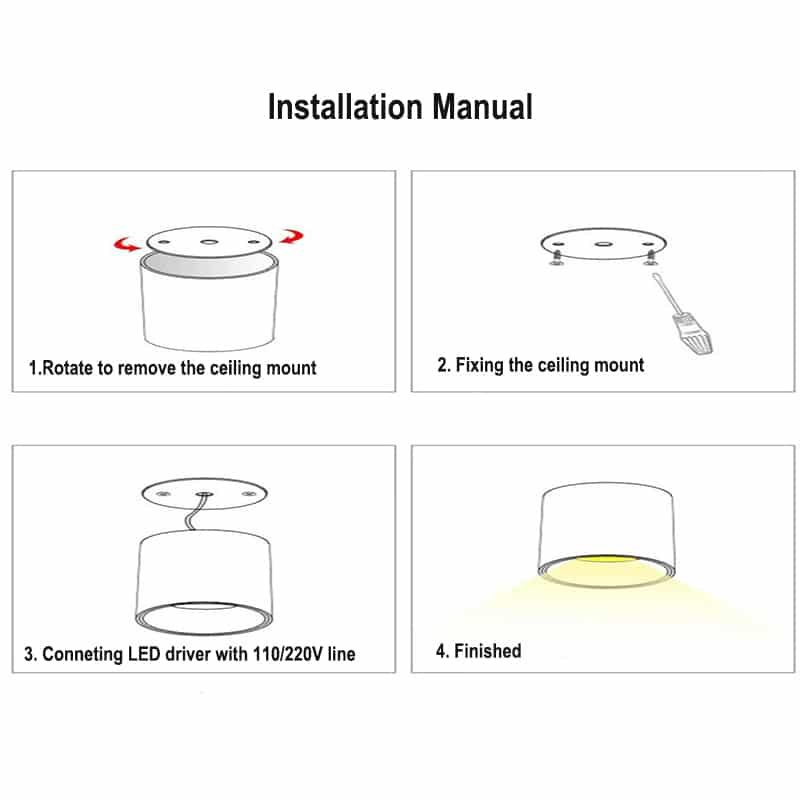

    installation manual
