IP65 Waterproof Square Surface Downlights | Model: GR-FM-H

Square waterproof surface led downlights
waterproof surface square downlights
IP65 surface square downlights
Square waterproof downlights
Square waterproof surface downlights
  • Square waterproof surface led downlights
  • waterproof surface square downlights
  • IP65 surface square downlights
  • Square waterproof downlights
  • Square waterproof surface downlights

    • These surface square LED downlights are designed with waterproof rubber, an IP65 waterproof function, and a high lumens PC lens, and deep reflectors with a low glare. Available in white, black, silver, and gold for reflector options, widely used for an outdoor area like a corridor, balcony, or wet environments like washer rooms, toliets, bathrooms, etc.

    • Mounting: Surface ceiling mounted
    • Shape: Square
    • Light source: COB or SMD is optional
    • Control way: ON/OFF, dimmable/ CCT selectable options
    • Waterproof: Yes
    • Working temp: -30/+60℃
    • Manufacturer warranty: 3/5 years
    • Certificates: CE RoHS LVD EMC
    • Origin: Made in China
    • MOQ: 50PCS/ model

    Best quality surface square waterproof downlight.

    QUOTE
    Order ModelWattageDimensionLumensColor temperatureIP rateBeam angleGlare ValueCRIInput voltageDatasheet
    GR-FM-10WH10W ±5%L80*W80*H83mm850-1000lm2700-6500KIP6524/36/55°<19>90110/220-240VAC 50/60HzDownload
    GR-FM-15WH15W ±5%L100*W100*H96mm1350-1500lm2700-6500KIP6524/36/55°<19>90110/220-240VAC 50/60HzDownload
    GR-FM-20WH20W ±5%L130*W130*H123mm1800-2100lm2700-6500KIP6524/36/55°<19>90110/220-240VAC 50/60HzDownload
    GR-FM-25WH25W ±5%L130*W130*H123mm2350-2500lm2700-6500KIP6524/36/55°<19>90110/220-240VAC 50/60HzDownload
    GR-FM-30WH30W ±5%L150*W150*H136mm2700-3200lm2700-6500KIP6524/36/55°<19>90110/220-240VAC 50/60HzDownload
    GR-FM-40WH40W±5%L170*W170*H156mm3800-4000lm2700-6500KIP6524/36/55°<19>90110/220-240VAC 50/60HzDownload

    Materials & Finished

    • Body: aluminum body, matt white/black.
    • Lens: PMMA /PC materials.
    • Surface accessories: Metal.

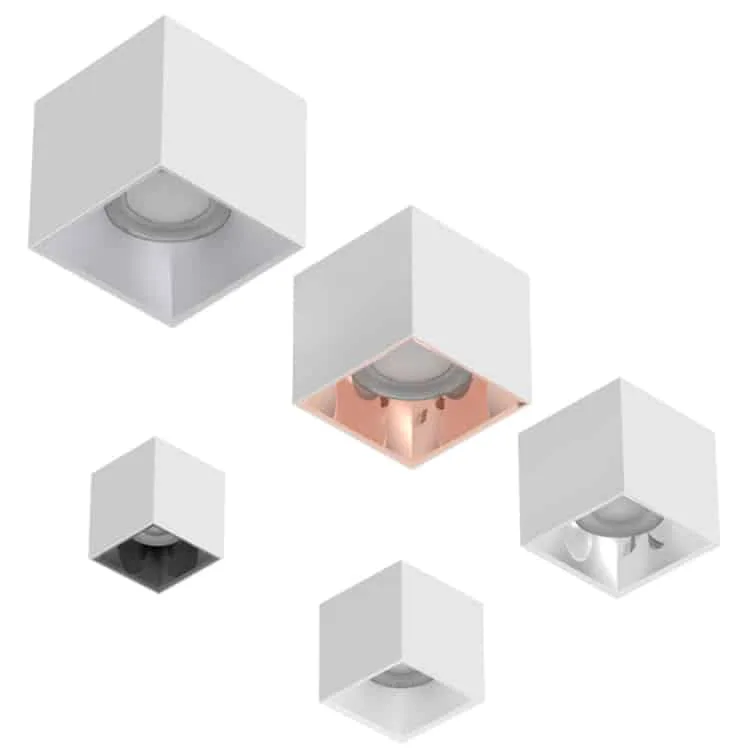

    • Reflector: PMMA, White/black as standard, silver, gold options.
    • Gland: Stainess steel, waterproof.

    Control Gear / Led driver

    • Driver brand: Eagleries/LiFud/Guanx/Osram/Philips are optional.
    • Input voltage: 110/220-240VAC 50/60Hz
    • Output Voltage: 36VDC
    • Power factor:>0.5 or 0.9
    • Free flicker: Yes
    • THD:<15%
    • Efficiency:>87%
    • IP Rating: IP22
    • Certificates: BIS CE RoHS ENEC CB
    • Warranty: 3/5Years

    Optical

    • Light source brand: Bridgelux as standard, Osram/Citizen available
    • Color rendering index:>90
    • Lumens:100lm-120lm/W output.
    • SDCM:<5 or <3
    • Beam angle: 24/36/55° options.
    • Lifetime:>50000Hrs
    • Low glare value: UGR<17
    • Color temperature:2700-2900K; 3000-3200K; 4000-4500K; 5700-6000K; 6000-6500K
    • Lumens maintenance: 99.9%@1000hrs/ 99%@3000hrs /98%@10000hrs. (LM80).
    • Dimmable (Triac dimmable/0-10V/DALI dimmable)

    Q

    • Commercial lighting: Hotels, offices, shopping malls, schools, hospitals, supermarkets.
    • Residential lighting: Living room, bedroom, kitchen room, etc..
