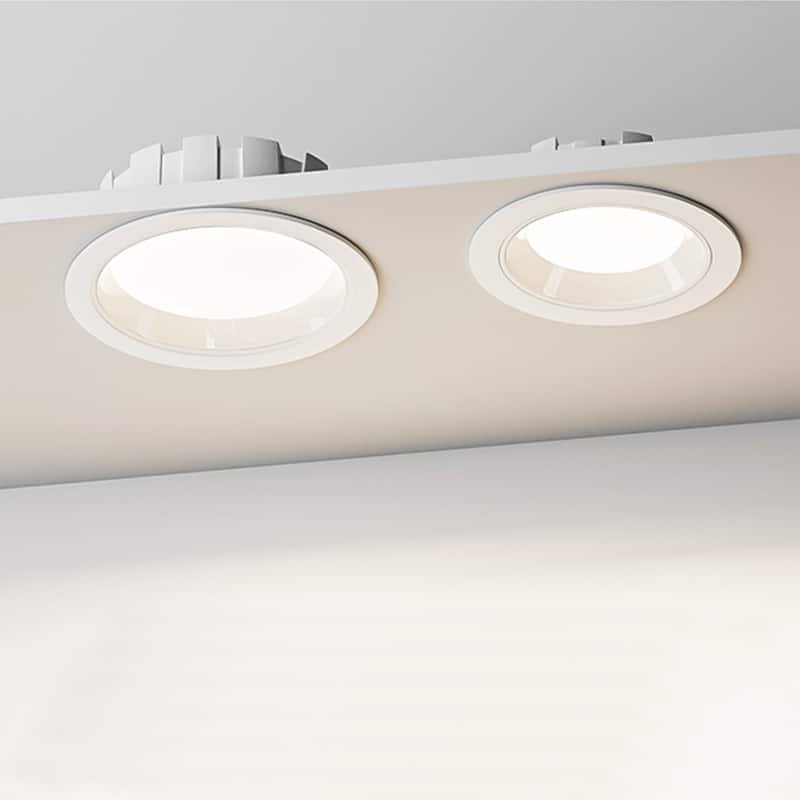

Recessed LED Downlighter 2inch-8inch | White/Black

This recessed downlight is available in sizes 2.5 inches, 3 inches, 4 inches, 5 inches, 5.5 inches, 6 inches, and 8 inches. It features a one-piece die-cast body and is available in black and white. A deep reflector is incorporated to reduce glare and provide better anti-glare performance. The reflector is available in black, white, gunmetal, gold, and bright silver. Smaller sizes, such as 2.5-inch to 4-inch, are suitable for residential lighting in living rooms, kitchens, and bedrooms, while 5-inch to 8-inch downlights are widely used for commercial lighting in hotels, hospitals, offices, and shopping malls.

  • Color temperature: 2700K-3000K warm white; 4000-4500K natural white; 5700-6000K
  • CRI (Ra): >80
  • Insulation class: Class II
  • THD: <15%
  • Input voltage: 110/220-240VAC 50/60Hz
  • Power factor:>0.5 or 0.9 options
  • Beam angle: 120° wide distribution
  • Material: Die-cast aluminum body + deep reflector + quick connector
  • Finished: Matt white/ black options
  • Reflector: Plastic

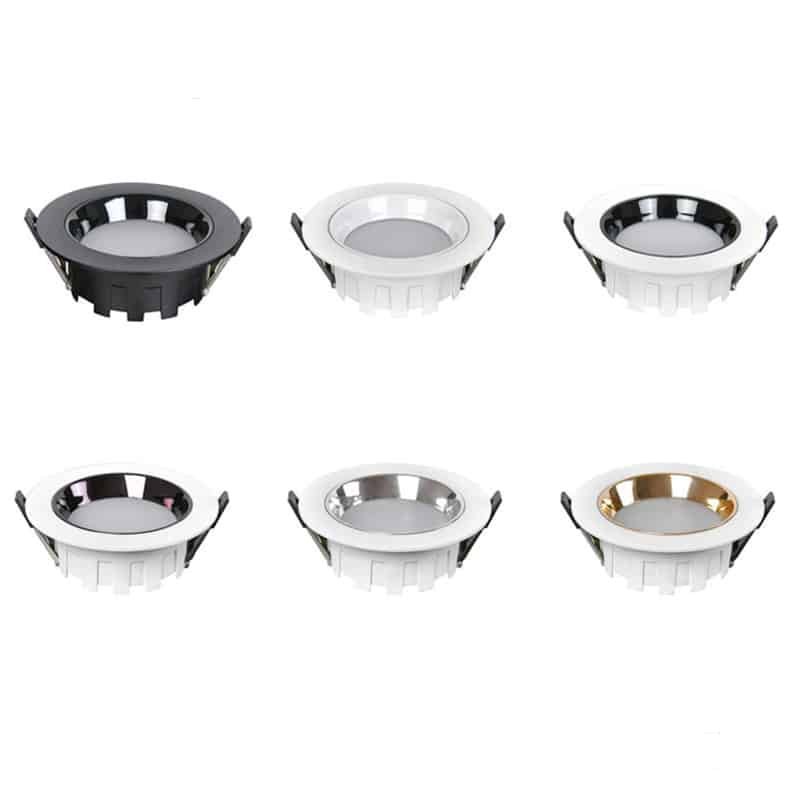

  • Color: White/black/Gun black/ Gold/ Shining silver reflector color options
  • IP rating: IP20 ( IP44 for front)
  • Working life:>50000Hrs
  • Certificate: CE RoHS
  • Warranty: 3/5 years

Ref NumberWattagesInchDimensionCut outLuminous fluxDownload
GR-DL-7WB-117W±5%2inchΦ75*H40mmΦ55-65mm630-700lmDatasheet
GR-DL-9WB-119W±5%3inchΦ100*H43mmΦ75-90mm810-900lmDatasheet
GR-DL-12WB-1112W±5%4inchΦ120*H43mmΦ95-105mm1100-1200lmDatasheet
GR-DL-15WB-1115W±5%5inchΦ150*H45mmΦ125-140mm1350-1500lmDatasheet
GR-DL-18WB-1118W±5%5inchΦ150*H45mmΦ125-140mm1600-1800lmDatasheet
GR-DL-20WB-1118W-20W±5%5.5inchΦ175*H50mmΦ145-165mm1800-2000lmDatasheet
GR-DL-24WB-1124W±5%6inchΦ197*H50mmΦ165-180mm2300-2500lmDatasheet
GR-DL-35WB-1130W-35W±5%8inchΦ230*H55mmΦ195-215mm3000-3500lmDatasheet

  • Emergency battery kit
  • Dimmable- Triac dimming, 0-10V dimming, or DALI dimming options
  • 3CCT color changing by a dial switch
