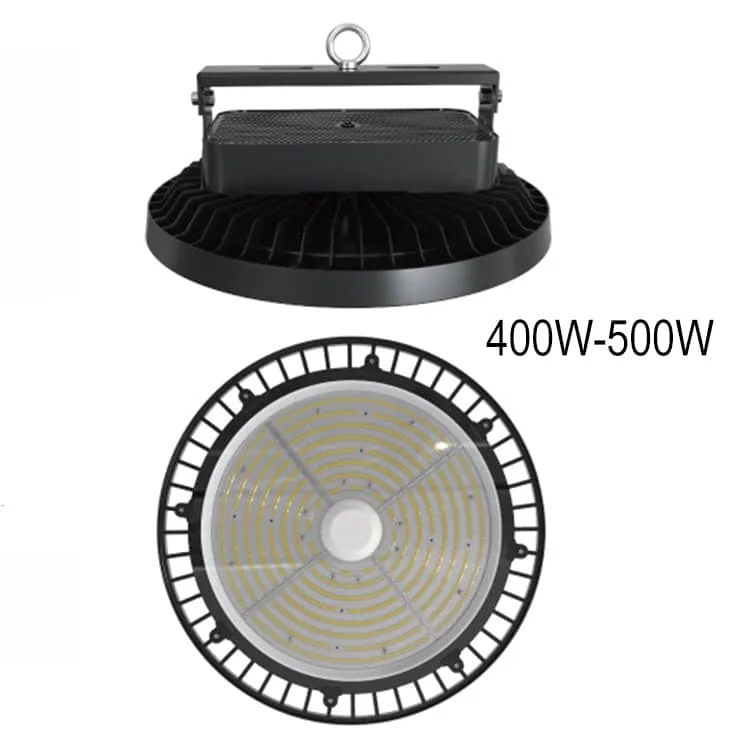

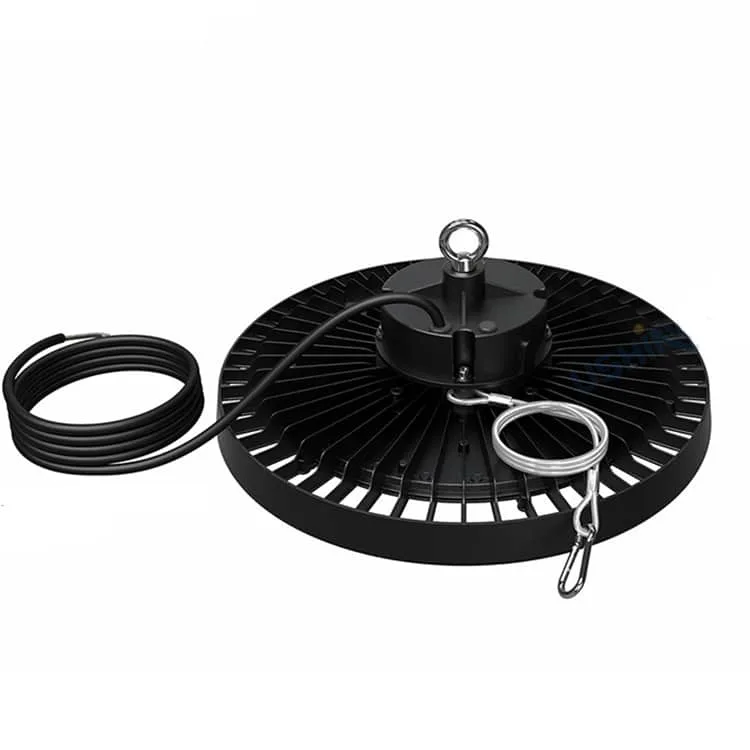

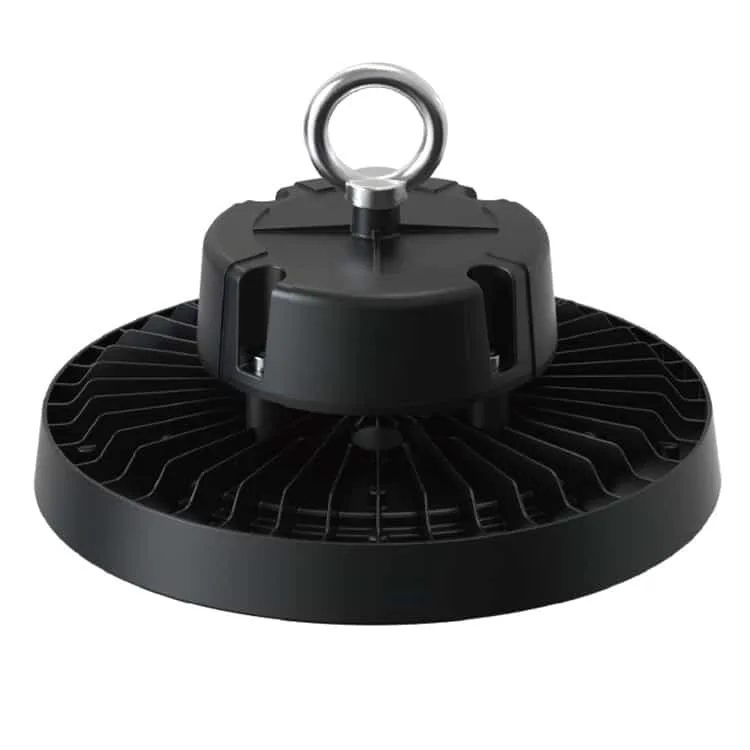

High Lumen High Bay LED Lights 100W-500W | Model: GR-HB-B-01

This is a kind of UFO high bay LED light, including 100W 150W 200W 300W 400W, and 480W, with high brightness LED chips, the lumens output can range from 150lm/W to 200lm/W. Compared with traditional high-bay light fixtures, it can save about 100% in energy and cost. 150W can reach 22000 lumen, and 200W is 30000 lumen. This cost-effective but high lumen output high bay lights are widely used for warehouses, gyms, and factories.

  • Order Model: GR-HB-B-01 Series
  • Wattages: 100W 150W 200W 300W 400W 480W
  • Shape: round
  • Lumens: 150lm/W as standard, 180lm/W, 200lm/W output can be options
  • Beam angle: 60/90/120°
  • Installation: Hook mounted by suspension, surface by brackets
  • Working temp: -25/+60℃
  • Manufacturer warranty: 3/5 years
  • Origin: Made in China
  • MOQ:20PCS/Model
  • Certificates: CE RoHS

GRNLED offers the best price in the market: better quality but lower price.

Order modelWattageDimensionLumensColor temperatureInput voltageIP GradePower FactorTHDDATASHEET
GR-HB-100WB-01100W±5%D255*H161mm15000-20000lm3000K -4000K -6000K120-277VAC 50/60HzIP65>0.93<10%Download
GR-HB-150WB-01150W±5%D300*H176mm22000-30000lm3000K -4000K -6000K120-277VAC 50/60HzIP65>0.95<10%Download
GR-HB-200WB-01200W±5%D365*H176mm30000-40000lm3000K -4000K -6000K120-277VAC 50/60HzIP65>0.95<10%Download
GR-HB-300WB-01300W±5%D386*H192mm45000-60000lm3000K -4000K -6000K120-277VAC 50/60HzIP65>0.95<10%Download
GR-HB-400WB-01400W±5%D490*H240mm60000lm3000K -4000K -6000K120-277VAC 50/60HzIP65>0.95<10%Download
GR-HB-500WB-01480W±5%D490*H240mm75000lm3000K -4000K -6000K120-277VAC 50/60HzIP65>0.95<10%Download

Body & Finished

  • Body: Die-cast aluminum body, good heat performance, anti-UV.
  • Color: Black finished. A white finish can be optional.
  • Cover: PMMA Cover, anti-UV, 60/90/120° beam angle optional.
  • Hook: Stainless steel
  • Safety rope: steel

Control Gear/led driver

  • Brand: MOSO Brand driver as standard
  • Input voltage:120-277VAC 50/60Hz
  • Efficiency:>89%
  • THD:<10%
  • Built-in surge protection: 6-10KV
  • Power factor:>0.95
  • IP Grade: IP65 waterproof
  • Working life: 50000hrs
  • Certificates: CB CE ENEC
  • Warranty: 5Years

Optical

  • Led chips brand: Lumileds/Bridgelux
  • Light source type: High lumen SMD3030
  • Lumens:150-200lm/W output.
  • Color temp: 3000K, 4000-4200K, 5700-6200K
  • SDCM:<3
  • LM80
