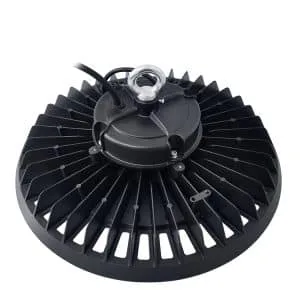

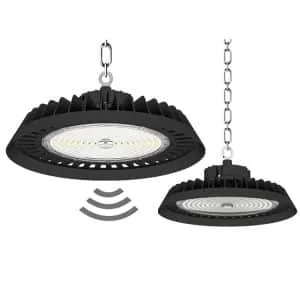

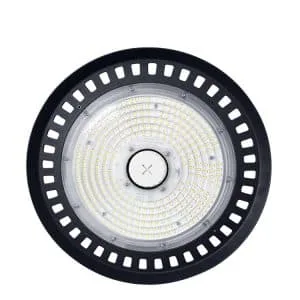

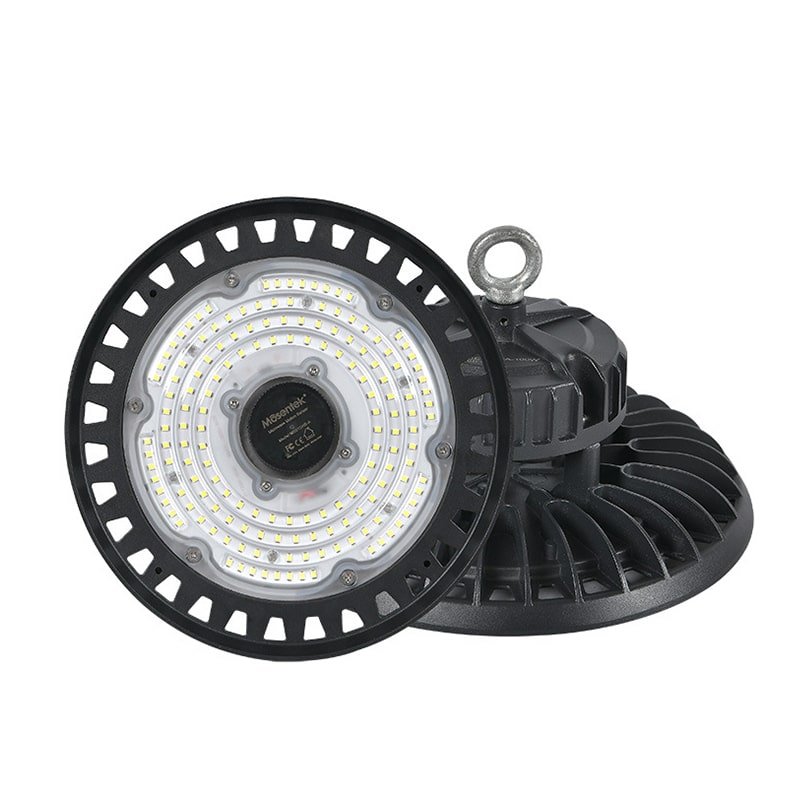

Highbay led lights with motion sensor 100W-200W

This is a high-quality microwave radar motion sensor high bay led light. It uses wireless transmission and microwave sensors. When it senses the movement of the human body or other objects, it can automatically turn on the brightness to 100%. If there is no moving object, the lamp will keep at 20%. -30% brightness, can save energy to the greatest extent.

  • Ref Model: GR-HB-B-02 Series
  • Wattage: 100W 150W 200W
  • Motion sensor type: Microwave radar sensor as standard, PIR sensor optional
  • Sensor distance:10-16meter
  • Lumens:120-150lm/W
  • Sensor beam angle: 120°
  • Lifespan:50000Hrs

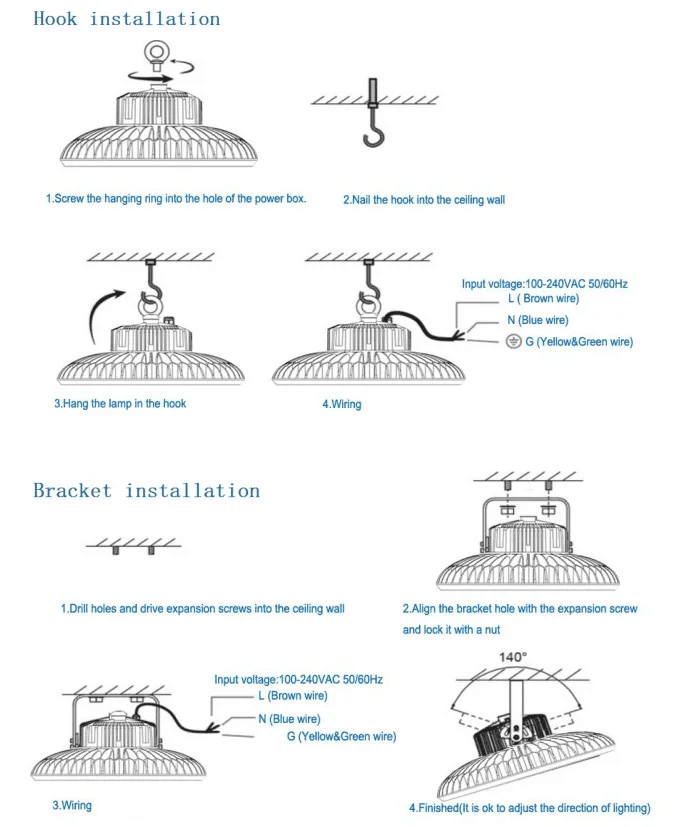

  • Installation: Hook suspension or surface with brackets
  • Certificates: CE RoHS
  • Origin: Made in China
  • Payment way: Bank transfer, Paypal, Western Union
  • MOQ: 20PCS/Model

GRNLED offers the best price in the market. Better quality but a lower price.

Order ModelWattageDimensionLumens Color temperatureMotion sensor distanceBeam angleIK RatingIP RatingDATASHEET
GR-HB-100WB-02100W±5%Ø260*H150mm15000-16000lm3000K, 4000K, 6500K12-16meter90°IK08IP65Download
GR-HB-150WB-02150W±5%Ø310*H156mm22500-24000lm3000K, 4000K, 6500K12-16meter90°IK08IP65Download
GR-HB-200WB-02200W±5%Ø355*H161mm30000-32000lm3000K, 4000K, 6500K12-16meter90°IK08IP65Download

Body & Finished

  • Housing: Die-cast aluminum
  • Finished: Matt black color.
  • Cover: PMMA Lens cover
  • Hook: Steel
  • Bracket: Metal

Motion sensor

  • Sensor Type: Microwave radar sensor as standard; PIR sensor available
  • Sensor distance: 12-16Meter
  • Sensor beam angle: 120°
  • Working mode: light up when motion sensor movement, then light off when no any movement.

Control Gear/ Led driver

  • Brand: Moso/Osram/SUNCOM brand driver as standard, Meanwell/ Philips as optional
  • Built-in surge protection: 4-6KV
  • Input voltage: 100/220-277VAC 50/60Hz
  • Power Factor: >0.95
  • THD: <10%
  • Efficiency: >91%
  • IP Grade: IP66 waterproof
  • Certificates: CE, CB, TUV, TUV, UL
  • Warranty: 5Years


  • Light source: Lumileds(Philips)/Bridgelux
  • LED Type: SMD3030/ SMD2835
  • Lumens:140-180lm/W
  • CRI:>80
  • SDCM: <5
  • Color temp: 3000K, 4000-4500K; 5700-6500K
  • LM80
  • Dimming 0-10V dimmable

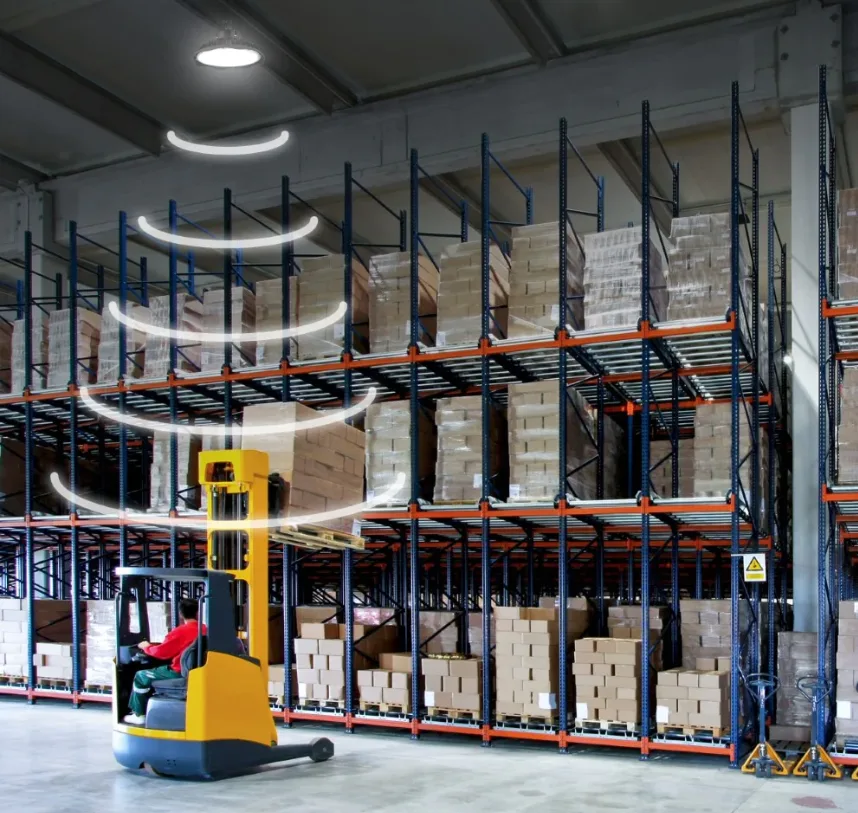

Widely used in the lighting of high-bay factories, workshops, warehouses, exhibition halls, gymnasiums, waiting rooms, stations, airports, outdoor buildings, etc.

Q: Can you put a motion sensor on an LED light?

A: Yes, you can. It is available to work an extra motion sensor with normal LED lights, just do it wiring correctly.

Q: How high can a motion sensor light be?

A: The PIR motion sensor, is about 6-8meter, and the radar sensor will be more sensitive and the distance, is up to 8-12meter.
