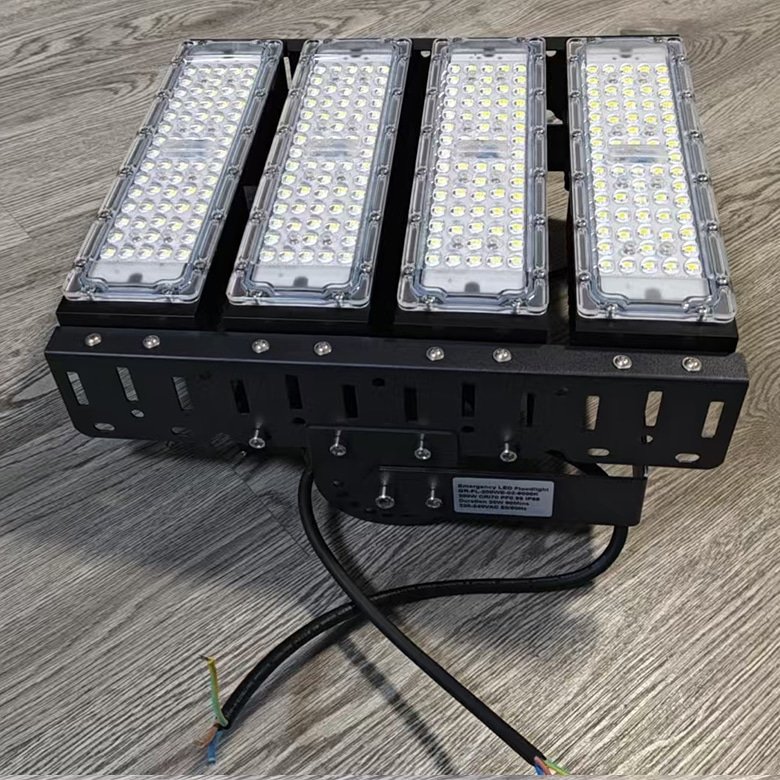

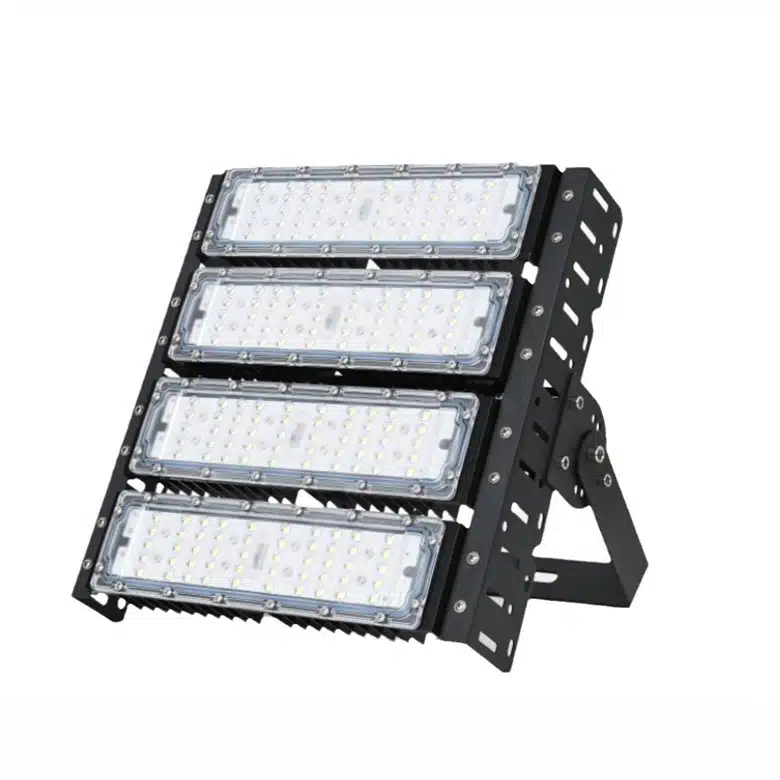

Emergency LED Tunnel Floodlights 50W-250W

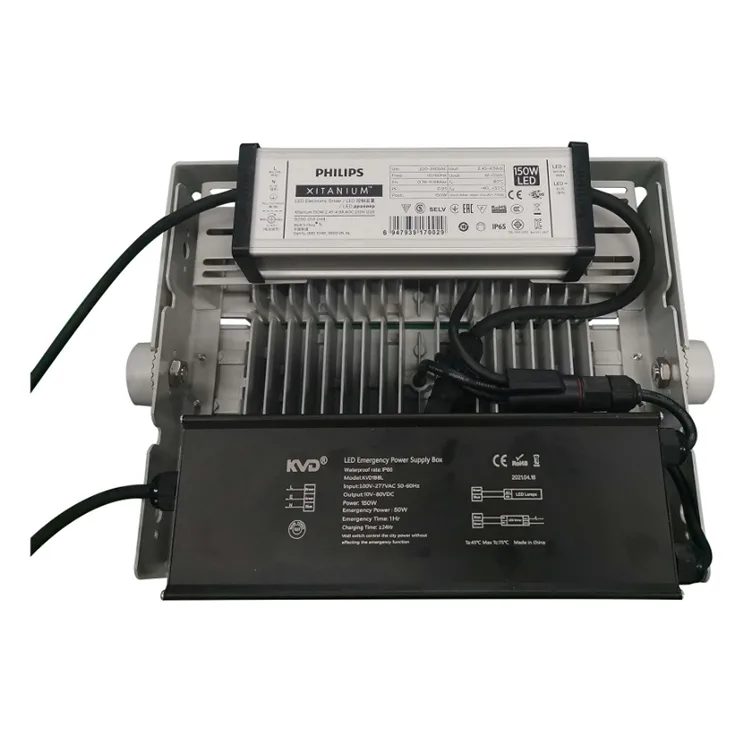

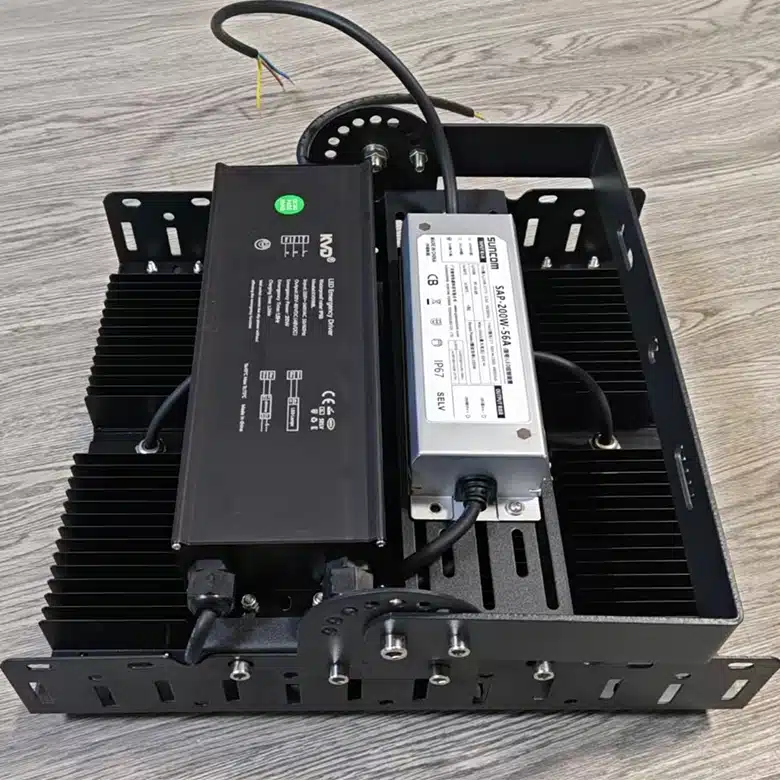

The maintained emergency flood lights are designed for tunnels and other outdoor areas, with battery backup kits, providing essential lighting for motorists and pedestrians during normal and emergencies. The 110V/220V battery backup tunnel flood lights are waterproof with IP65 and IP66 ratings. In an emergency, it lasts 60 minutes-180 minutes with 10W to 50W. It is widely used for different outdoor places such as tunnels, high masts, squares, and stadium fields.
- LED Chip: Lumileds(Philips) SMD
- Luminaire lumens:110-130lm/W output
- Color temperature: 3000K/4000-4500K/ 5700-6000K
- Beam angle: 70*150°/90°
- LED driver: Sosen/Moso/Meanwell/Philips/Suncom/DONE brand options
- Surge protection: 6KV-10KV
- Input voltage: 120-265VAC 50/60Hz
- Emergency time: 1hours, 90minutes, 2hours and 3hours optional
- Battery type: Li-Battery emergency backup
- Charging time: 12-48hours
- IP rating & IK Rating: IP66 & IK08
- Working life:>50000Hrs
- Manufacturer warranty: 5 years for lighting, 3 years for battery backup
- Certificates: CE RoHS
| Ref Number | Wattage | Emergency time | Emergency power | Battery type | Luminous Flux | Download |
|---|---|---|---|---|---|---|

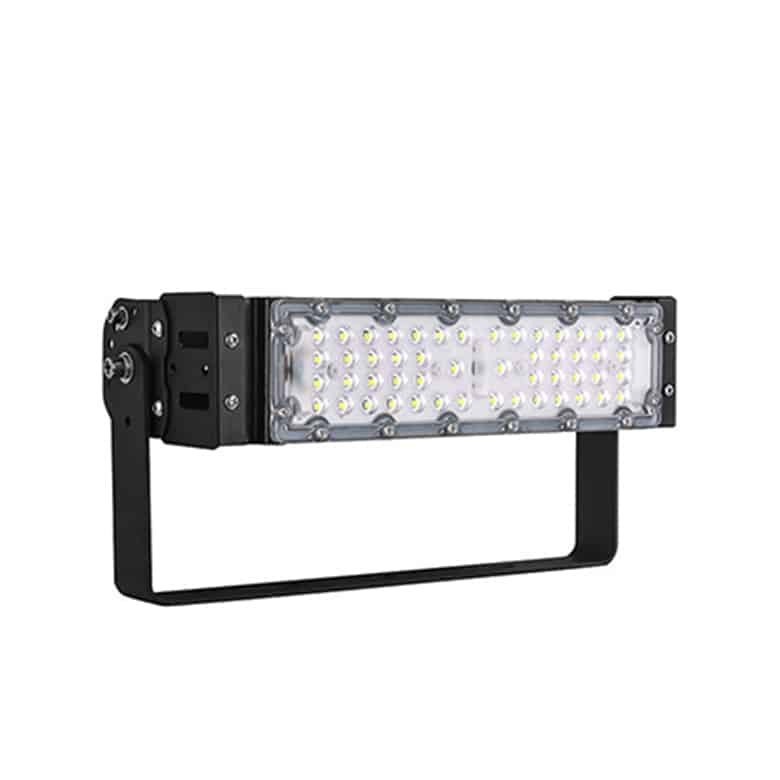

| GR-FL-50WE-02 | 50W±5% | 1-3hours | 10W-20W | Li-battery | 6500lm | Datasheet |

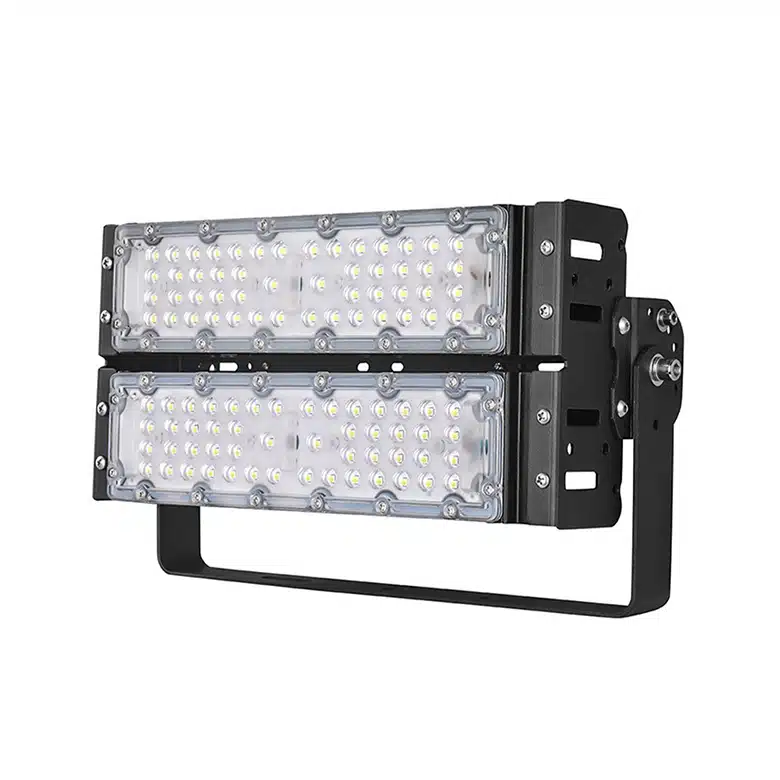

| GR-FL-100WE-02 | 100W±5% | 1-3hours | 10W-30W | Li-battery | 13000lm | Datasheet |

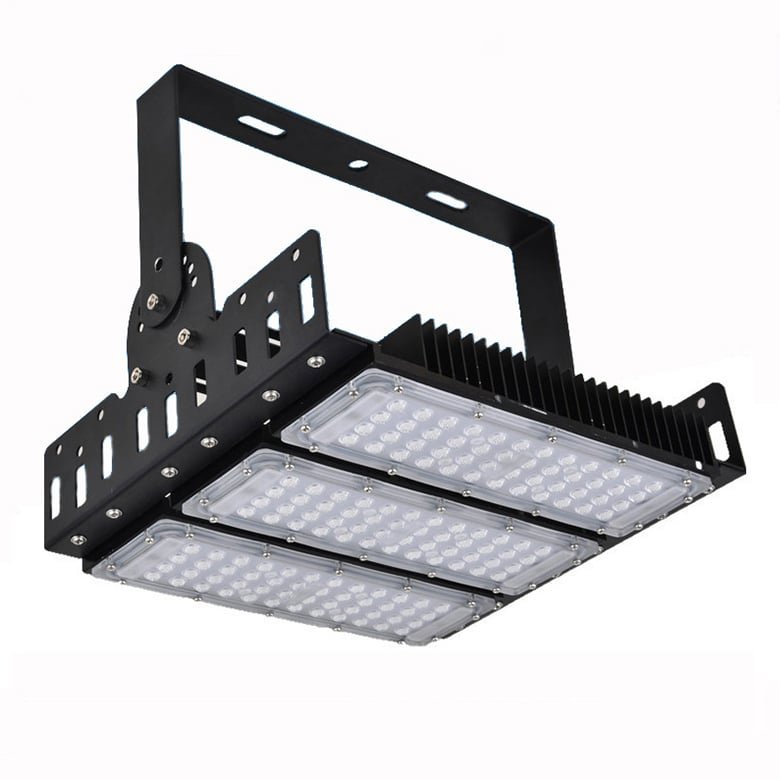

| GR-FL-150WE-02 | 150W±5% | 1-3hours | 10W-30W | Li-battery | 19500lm | Datasheet |

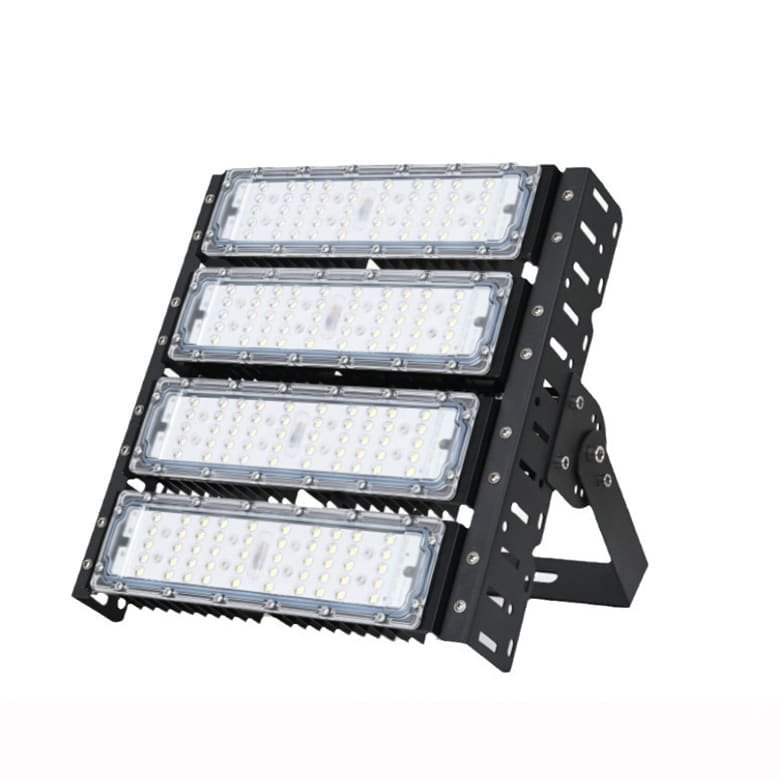

| GR-FL-200WE-02 | 200W±5% | 1-3hours | 10W-40W | Li-battery | 26000lm | Datasheet |

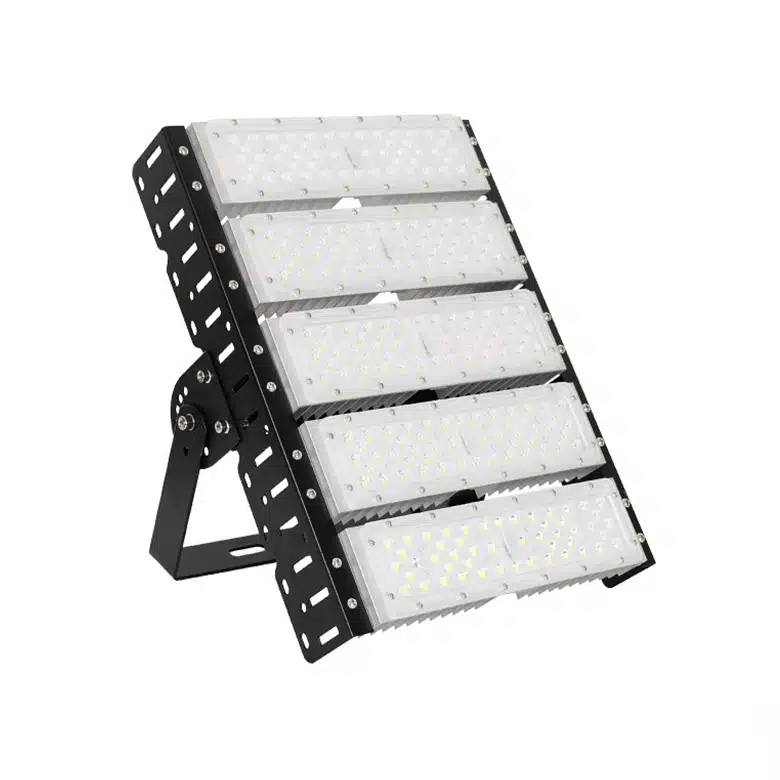

| GR-FL-250WE-02 | 250W±5% | 1-3hours | 10W-50W | Li battery backup | 30000lm | Datasheet |
Surface or wall-mounted Installation onto the tunnel by brackets.

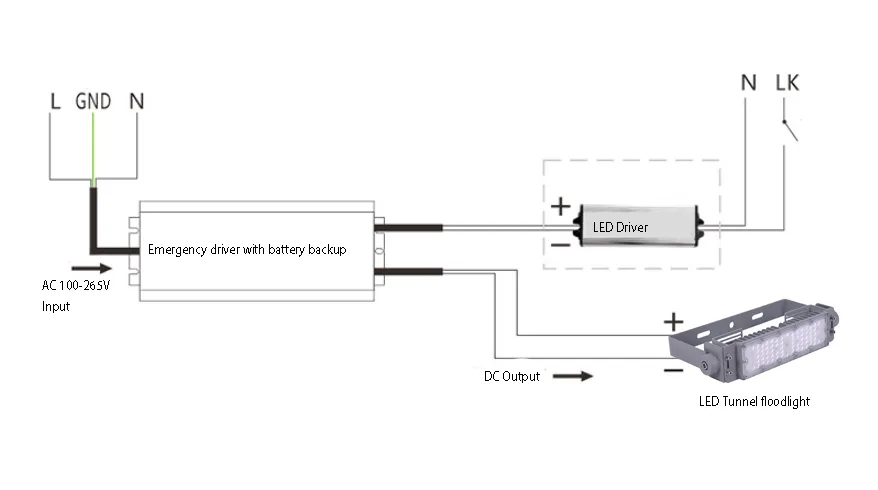

The wiring is as follows:
Q: How do emergency floodlights work?
A: Emergency floodlights are equipped with backup batteries to provide electricity in the event of a power outage. These backup systems ensure that the floodlights remain operational even when the main power supply fails. Meanwhile, these emergency floodlights can keep working when the main power is available. It is a maintained emergency backup lights.
| Operation condition | Lighting operation |
| Mains power available | normal lighting 50-250W |
| Mains power failure | Automatically switches to emergency mode |
| Emergency power | 10-50W |
| Backup duration | 1-3 Hours |
Q: How to replace the emergency flood light battery?
A: 1. cut off all power supply 2. remove the old battery and note the connection 3. install the new battery, which should have identical voltage, capacity, and dimensions as the original. 4. Reassemble and test the emergency function.
Q: Can I customize the emergency duration of the floodlight?
Yes. We can customize the emergency configuration according to project requirements, including backup duration, battery capacity and emergency power. The suitable configuration can be selected based on the required lighting level and emergency duration.
