Outdoor Long Linear Wall Light
These linear wall lights come in two types, with lengths ranging from 300mm to 2400mm (8ft). They can have a waterproof grade of IP65 at max, making them suitable for both interior and exterior applications with recessed or surface-mounted wall installations.
GRNLED offers the best price in the market.
Order Model | Wattages | Dimension | Lumens | IP Rate | IK Rating | Color temperature | Input voltage | Datasheet |
GR-BD-30G-A or B | 6W | A: L300*W50*H45mm B: L300*W85*H45mm | 540-600lm | IP65 | IK08 | 3000K/4000K/6500K | 110-120V/220-240VAC | Download |
GR-BD-40G-A or B | 9W | A: L400*W50*H45mm B: L300*W85*H45mm | 810-900lm | IP65 | IK08 | 3000K/4000K/6500K | 110-120V/220-240VAC | Download |
GR-BD-60G-A or B | 12W | A: L600*W50*H45mm B: L600*W85*H45mm | 1100-1200lm | IP65 | IK08 | 3000K/4000K/6500K | 110-120V/220-240VAC | Download |
GR-BD-80G-A or B | 15W | A: L800*W50*H45mm B: L800*W85*H45mm | 1500-1600lm | IP65 | IK08 | 3000K/4000K/6500K | 110-120V/220-240VAC | Download |
GR-BD-100G-A or B | 20W | A: L1000*W50*H45mm B: L1000*W85*H45mm | 1800-2100lm | IP65 | IK08 | 3000K/4000K/6500K | 110-120V/220-240VAC | Download |
GR-BD-120G-A or B | 24W | A: L1200*W50*H45mm B: L1200*W85*H45mm | 2400-2500lm | IP65 | IK08 | 3000K/4000K/6500K | 110-120V/220-240VAC | Download |
GR-BD-150G-A or B | 28W | A: L1500*W50*H45mm B: L1500*W85*H45mm | 2700-2900lm | IP65 | IK08 | 3000K/4000K/6500K | 110-120V/220-240VAC | Download |
GR-BD-180G-A or B | 35W | A: L1800*W50*H45mm B: L1800*W85*H45mm | 3500-3600lm | IP65 | IK08 | 3000K/4000K/6500K | 110-120V/220-240VAC | Download |
GR-BD-240G-A or B | 48W | A: L2400*W50*H45mm B: L2400*W85*H45mm | 4500-4900lm | IIP65 | IK08 | 3000K/4000K/6500K | 110-120V/220-240VAC | Download |
Materials & Finished
- Housing: Die-cast aluminum body, Matt White/Matt black powdered coated available.
- Led driver: Internal Isolated constant current driver, lifetime up to 100000Hrs
- Light source: SMD LED Chips, 100lm/W output.
Electrical & Optical
- Led driver brand: SUNCOM/DONE/GX
- Driver type: constant current driver
- Input voltage:100-265VAC 50/60Hz
- Installation: Wall mounted
- Power Factor:>0.5
- Color rendering index:>80
- SDCM:<5
- Efficiency:>85%
- Beam angle: 120°
- Color temperature: 3000K Warm white /4000K Daylight /6500K Cold white
- Low voltage DC 12 V / DC 24 V/ DC 36 V / DC 48 V / 60 V
- Motion sensor

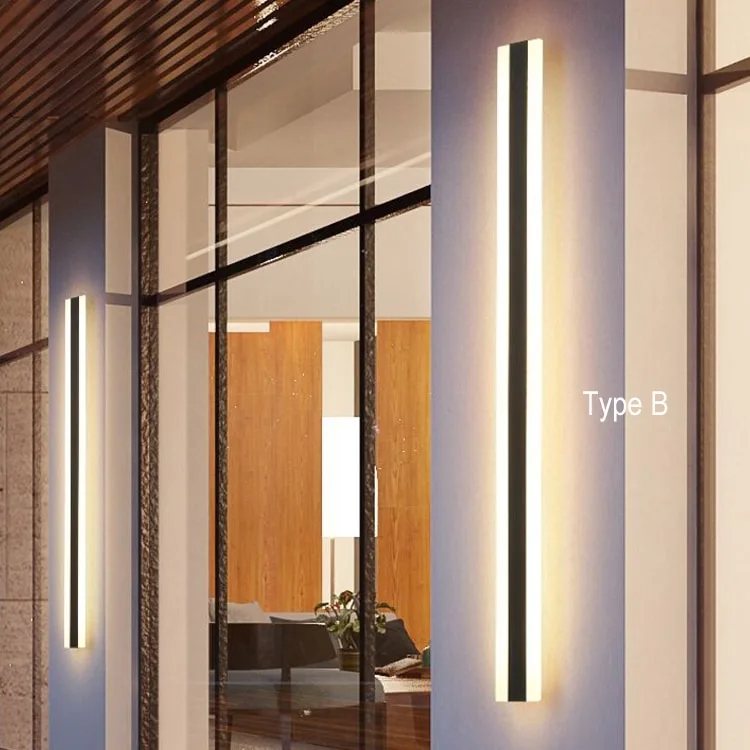

Long wall LED lights can be used for various purposes, including ambient lighting, accentuating architectural features, or highlighting artwork or decorative elements on the wall. They are commonly used in residential, commercial, and hospitality settings to enhance the overall ambiance and aesthetics of the space.
