Recessed Wall Lights | Model: GR-BD-L

GR-BD-L Series wall lights are recessed installation luminaires, including 3 different shapes- square, rectangle, long narrow beam types. Its IP rate can be IP65, working well for indoor or outdoor applications as stairs lighting, step lighting, or façade lighting, etc.

Materials & Finished

  • Housing: Die-cast aluminum body, Matt White/Grey/Matt black/Chrome powdered coated available.
  • Embedded part: ABS recessed parts included.
  • Led driver: Internal Isolated constant current driver, lifetime up to 100000Hrs
  • Light source: SMD LED Chips, 100lm/W output.

Additional Options

  • Low voltage DC12V/DC24V/DC36V/DC48V/60V
  • Photocell (Dusk to Dawn)
  • PIR/Motion Sensor
  • Dimmable (PWM/0-10V/DALI)

Electrical & Optical

  • Input voltage:100-265VAC 50/60Hz
  • Installation: Recessed
  • Power Factor:>0.5
  • Color rendering index:>80
  • SDCM:<5
  • Efficiency:>85%
  • IK level: IK07
  • IP Rating: IP65/ IP66 Max
  • Beam angle: 30°/60°
  • Working life:>50000Hrs
  • Color temperature: 3000K Warm white /4000K Daylight /6500K Cold white
  • Working temperature:-25℃/+60℃
  • Compliance: CE RoHS Certified
  • China Manufacturer Warranty:2/3/5Years.

GRNLED offers the best price in the market.

Models and Details

Order ModelWattagesShapeDimensionCut holeLumensIP RateIK RatingColor temperatureInput voltageDatasheet
GR-BD-3WL-N3WLongL185*W40*H45mmL170*W35*H50mm240-270lmIP65IK073000K/4000K/6500K110-120V/220-240VACDownload
GR-BD-3WL-R3WRectangleL210*W60*H55mmL205*W55*H60mm270-300lmIP65IK073000K/4000K/6500K110-120V/220-240VACDownload

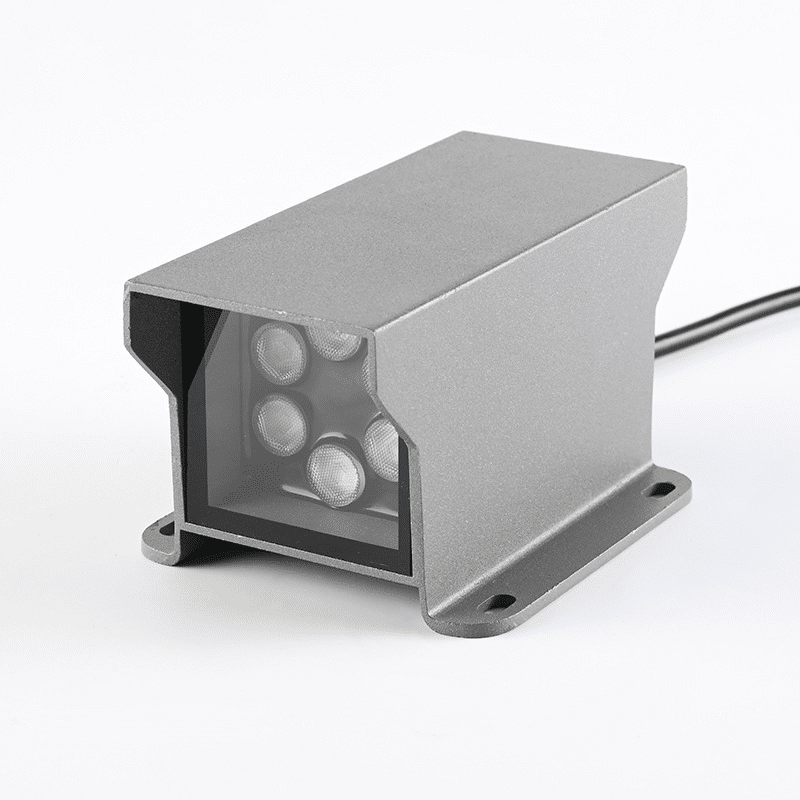

GR-BD-3WL-S3WSquareL86*W86*H45mmL80*W80*H51mm270-300lmIP65IK073000K/4000K/6500K110-120V/220-240VACDownload
