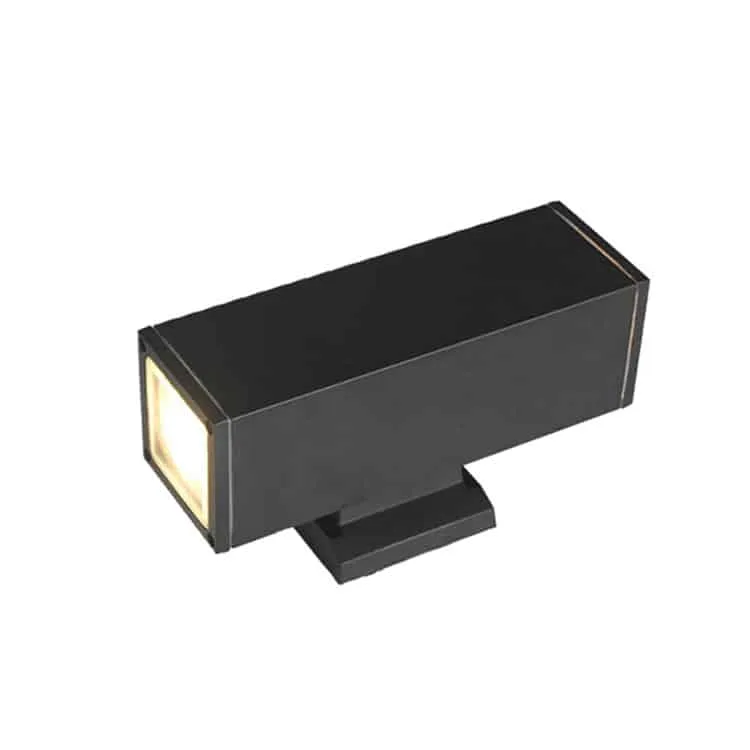

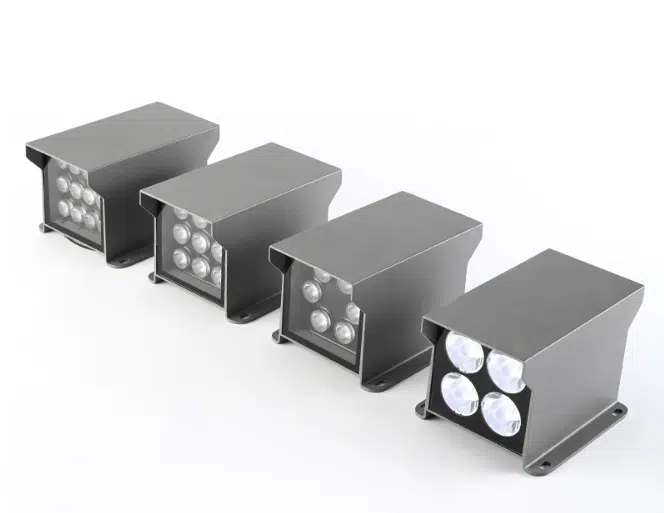

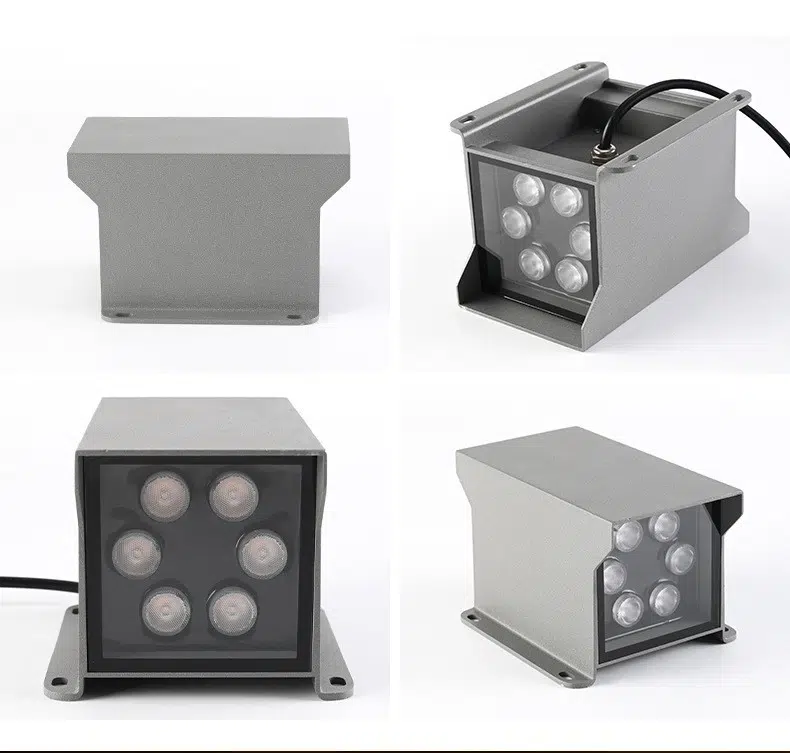

Square Wall Lights | Model: GR-BD-B

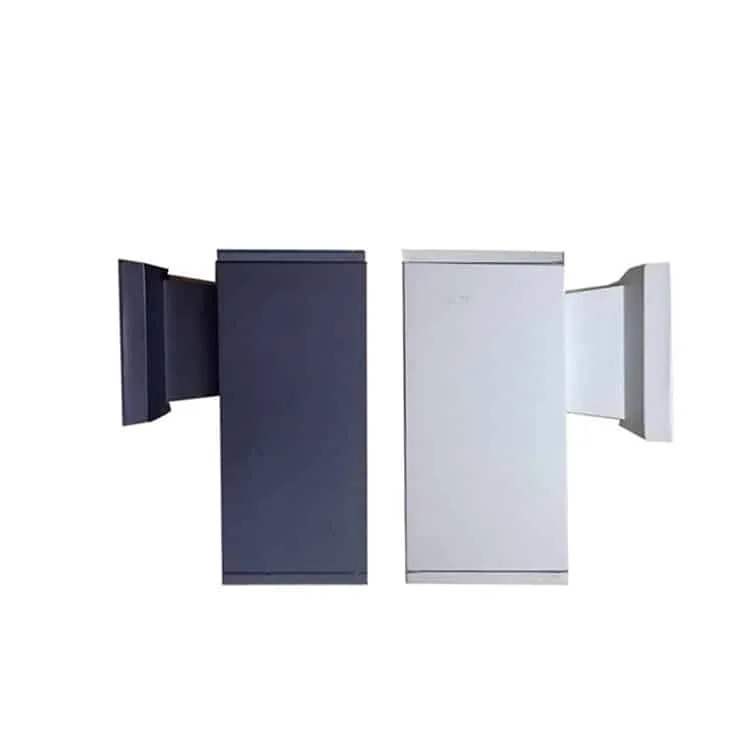

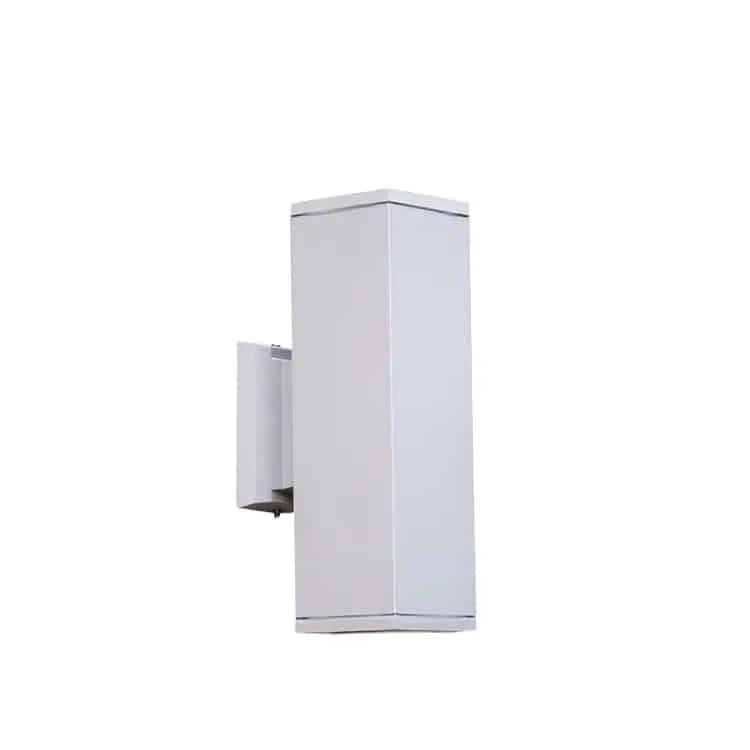

GR-BD-B Series is our square shape external directional wall light, which include single heads and double heads type. it is designed to provide up or downward lighting for outdoor terraces or charming environments. It is made of die-cast aluminum with transparent tempered glass, integrated 120-240volt electronic LED driver. The wall lamp is sealed, suitable for all-weather types.

Materials & Finished

  • Housing: Die-cast aluminum body, Grey/Matt black finished.
  • Cover: 3mm thickness toughed glass cover, clear type.
  • Transformer: Built-in Isolated constant current driver.
  • Light source: Bridgelux high power led chip, High brightness.
  • Mounting parts: Wall mounted part included.

Additional Options

  • Low voltage input voltage DC12V/DC24V/DC36V/DC48V/60V
  • Photocell (Dusk to Dawn)
  • PIR/Motion Sensor
  • Dimmable (PWM/0-10V/DALI)

Electrical & Optical

  • Input voltage:110-120V/220V-240VAC 50/60Hz
  • Shape: Square (up down lighting)
  • Power Factor:>0.9
  • Color rendering index:>80
  • SDCM:<5
  • Efficiency:>88%
  • IK level: IK07
  • IP Rating: IP65/ IP66 Max
  • Beam angle: 30°/60°
  • Working life:>50000Hrs
  • Color temperature: 3000K Warm white /4000K Daylight /6500K Cold white
  • Working temperature:-25℃/+60℃
  • Compliance: CE RoHS Certified
  • China Manufacturer Warranty:2/3/5Years.


Widely used for façade lighting for buildings, gardens, backyards, etc.

GRNLED offers the best price in the market.

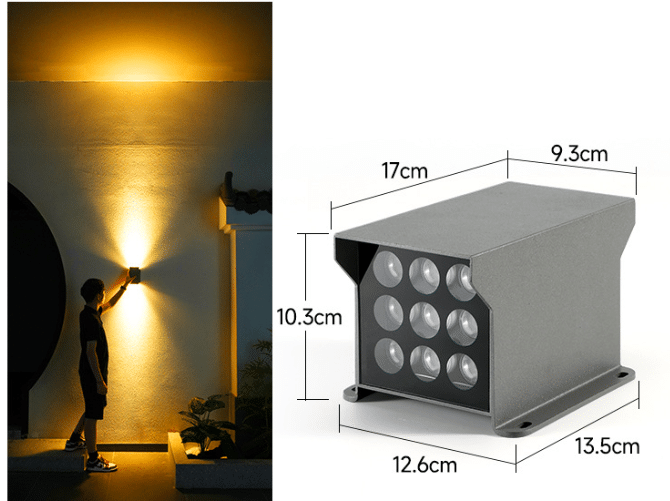

Models and Details

Order ModelWattagesDimensionLumensIP RateIK RatingColor temperatureInput voltageCRIDatasheet
GR-BD-6WB6WL90*W90*H160mm540-600lmIP66IK073000K/4000K/6500K110-120V/220-240VAC or DC12V 24V>80Download
GR-BD-9WB9WL120*W120*H200mm810-900lmIP66IK073000K/4000K/6500K110-120V/220-240VAC or DC12V 24V>80Download
GR-BD-18WB18WL150*W150*H200mm1600-1800lmIP66IK073000K/4000K/6500K110-120V/220-240VAC or DC12V 24V>80Download
GR-BD-2*6WB2*6W(12W)L90*W90*H160mm1050-1200lmIP66IK073000K/4000K/6500K110-120V/220-240VAC or DC12V 24V>80Download
GR-BD-2*9WB2*9W(18W)L120*W120*H300mm1600-1800lmIP66IK073000K/4000K/6500K110-120V/220-240VAC or DC12V 24V>80Download
GR-BD-2*18WB2*18W(36W)L150*W150*H300mm3200-3600lmIP66IK073000K/4000K/6500K110-120V/220-240VAC or DC12V 24V>80Download
