Up Down Wall Lights | Model: GR-BD-A

GR-BD-A series modern outdoor wall light with up down lighting. The cylindrical body is equipped with two glass lampshades, and each lampshade emits a powerful LED light through the open end of Everly. The dual light source is designed to provide bold directional lighting, in addition to more direct lighting, it also helps to create useful general luminescence

Materials & Finished

  • Housing: Die-cast aluminum body, Grey/Matt black finished.
  • Cover: 3mm thickness toughed glass cover, clear type.
  • Led driver: Built-in Isolated constant current driver.
  • Light source: CREE or Bridgelux COB led chips, High CRI.
  • Mounting parts: Wall mounted part included

Additional Options

  • Low voltage input voltage DC12V/DC24V/DC36V/DC48V/60V
  • Photocell (Dusk to Dawn)
  • PIR/Motion Sensor

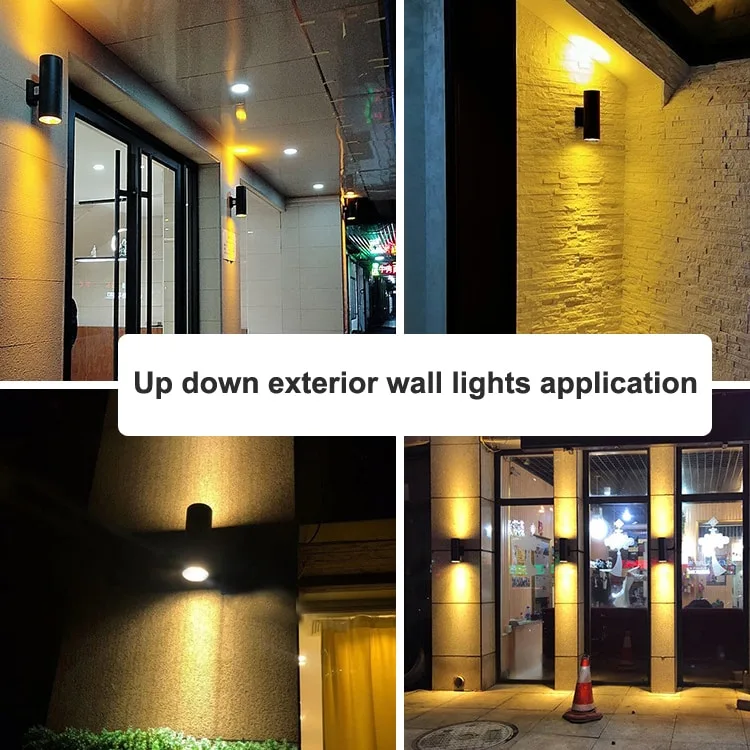

Widely used for façade lighting for building, garden, backyards, etc.

Electrical & Optical

  • Input voltage:110-120V/220V-240VAC 50/60Hz
  • Power Factor:>0.9
  • Color rendering index:>90
  • SDCM:<5
  • Efficiency:>88%
  • IK level: IK07
  • IP Rating: IP66
  • Beam angle: 30°/60°
  • Working life:>50000Hrs
  • Color temperature: 3000K Warm white /4000K Daylight /6500K Cold white
  • Working temperature:-25℃/+60℃
  • Compliance: CE RoHS Certified
  • China Manufacturer Warranty:2/3/5Years.

GRNLED offers the best price in the market.

Models and Details

Order ModelWattagesDimensionLumensIP RateIK RatingColor temperatureInput voltageCRIDatasheet
GR-BD-2*7WA2*7W(14W)Φ90*H260mm1250-1400lmIP66IK073000K/6500K110-120V/220-240VAC or DC12V 24V>90Download
GR-BD-2*10WA2*10W(20W)Φ108*H300mm1800-2000lmIP66IK073000K/6500K110-120V/220-240VAC or DC12V 24V>90Download
GR-BD-2*15WA2*15W(30W)Φ145*H300mm2700-3000lmIP66IK073000K/6500K110-120V/220-240VAC or DC12V 24V>90Download
GR-BD-2*20WA2*20W(40W)Φ160*H300mm3660-4000lmIP66IK073000K/6500K110-120V/220-240VAC or DC12V 24V>90Download
