Slim LED Downlight |Recessed Backlit |3inch-8inch

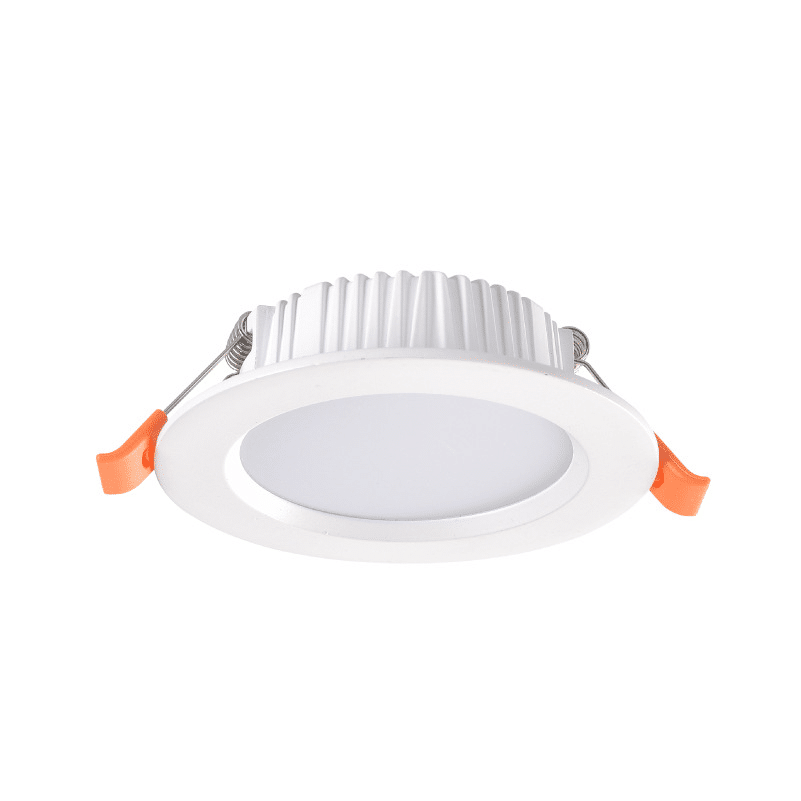

recessed slim led downlights
slim recessed downlights with white/black finished

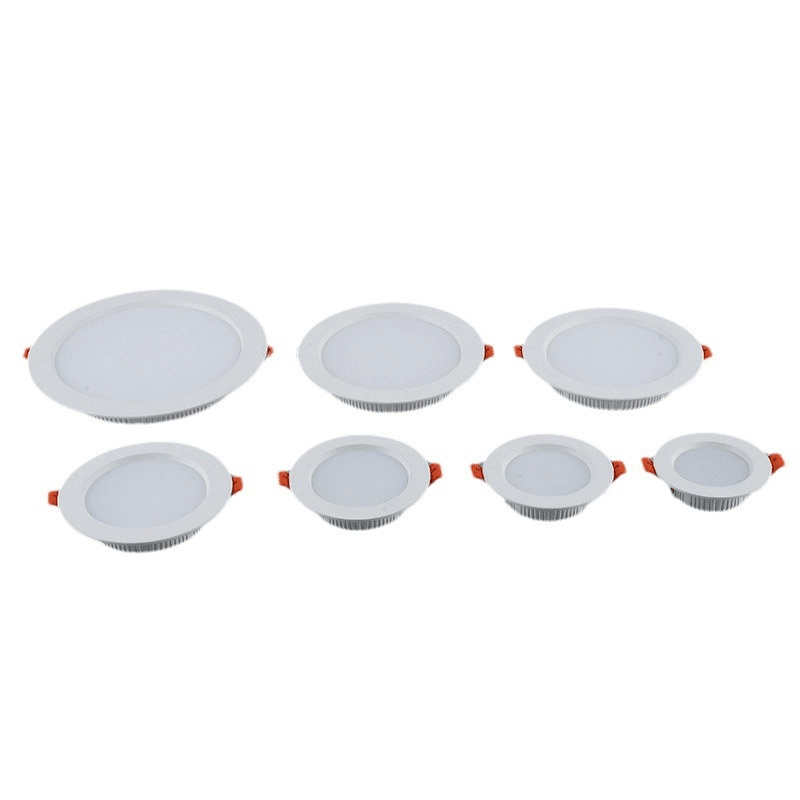

slim LED downlight with backlit emmision
recessed slim downlights
slim downlights
  • recessed slim led downlights
  • slim recessed downlights with white/black finished
  • slim LED downlight with backlit emmision
  • recessed slim downlights
  • slim downlights

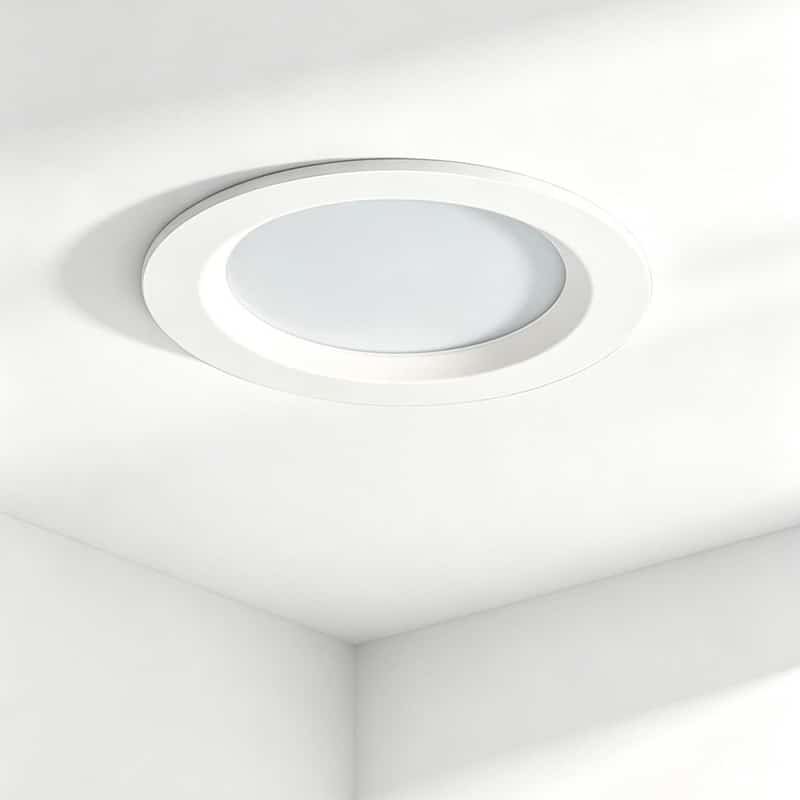

    • This slim recessed downlight features an ultra-thin body design, only 35mm height, perfectly fitting shallow ceiling cavities without compromising lighting performance. The backlit emission will ensure better heat performance and higher lumen output. With a compact and sleek structure, it achieves neat installation while delivering soft, uniform illumination, a practical and stylish lighting pick for various interior projects.

    • Inch: 3inch 4inch 5inch 6inch
    • IP Rate: IP20 indoor use
    • Material: Die-cast aluminum +frosted pc cover
    • Beam angle: 120°
    • LED driver: Eagleries/LiFud/Osram/Philips driver, free flicker
    • THD:<15%
    • Power factor:>0.5 or 0.9
    • LED chips: Bridgelux or Osram SMD2835
    • CRI:>80 or 90
    • SDCM:<3
    • Input voltage: 110/220-240VAC 50/60Hz
    • Working life: >50000Hrs
    • Warranty: 2/3years
    • Certificates: CE RoHS
    • Color temperature: 2700K-3000K/4000K-45000K/5700K-6500K
    Get a Quote

    Ref NumberWattageDimensionCut outLuminous fluxDownload
    GR-DL-7WY7W±5%Φ100*H33mmΦ75-80mm600-700lmDatasheet
    GR-DL-10WY10W±5%Φ120*H33mmΦ95-105mm810-1000lmDatasheet
    GR-DL-12WE12W±5%Φ145*H34mmΦ115-125mm1100-1200mmDatasheet
    GR-DL-15WE15W±5%Ø165*H34mmΦ145-150mm1450-1600lmDatasheet
    GR-DL-20WE20W±5%Ø180*H35mmΦ165-170mm1850-2000lmDatasheet
    GR-DL-30WE30W±5%Ø220*H36mmΦ195-200mm2700-3000lmDatasheet

    • Emergency backup (2-5W with 1-3hours)
    • Dimmable ( phasing dimmable, 0-10V, and DALI dimmable optional)
