Architectural Recessed Lighting Curved Downlight| Narrow Beam 15°/24°/36°/50°
The architectural recessed lighting is crafted with a precision-formed aluminum curved trim to eliminate direct glare and create a smooth, diffused light output. Merging clean lines with advanced anti-glare technology, it offers a balanced, eye-friendly lighting solution for premium interiors. Available in six finishes — silver, rose gold, gold, white, black, and gun black-this recessed downlight complements a variety of interior styles. Widely used for commercial lighting for hotels, offices and residential lighting for living rooms.
- Installation: Recessed or trimless
- Control way: ON/OFF, DALI/0-10V dimmable optional
- Beam angle: 15/24/36/50°
- Body: Die-cast aluminum.

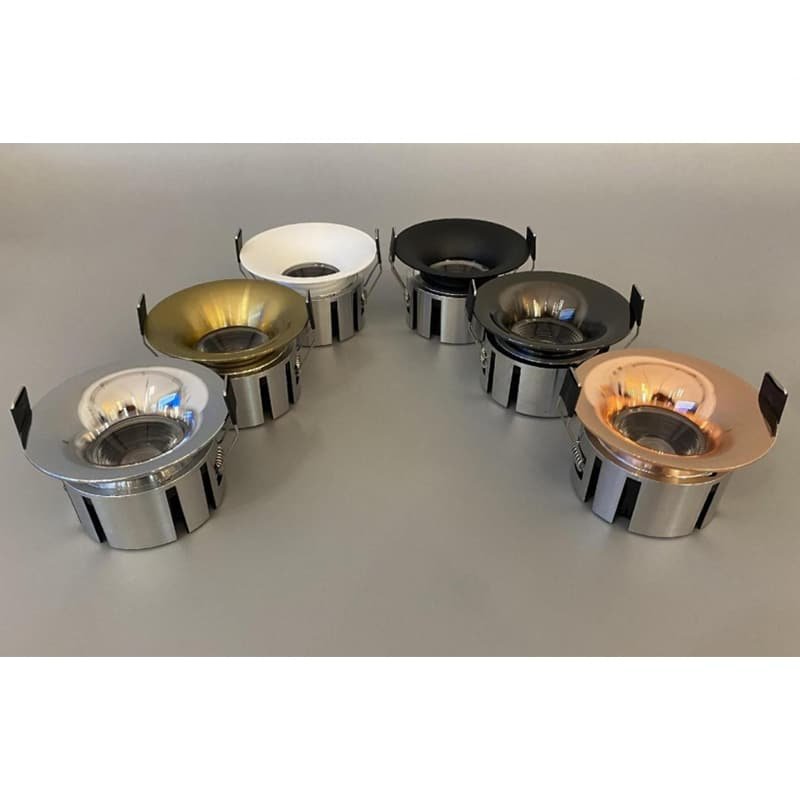

- Trim color: white/black/gun black/shining silver/gold options
- Input voltage: 110/220-240VAC 50/60Hz
- Power factor:>0.5 or 0.9
- THD:<19
- LED chips: Bridgelux / Osram COB with CRI92, SDCM<3.
- Working life: 50000Hrs
- IP rating: IP20 indoor use
- UGR:<19 anti-glare
- Color temperature: 2800K-3200K/ 4000K-4500K/ 5500-6500K
- Certificate: CE LVD EMC RoHS
- Warranty: 3/5Years
| Ref Number | Wattages | Dimension | Cut out | Luminous flux | Download |
|---|---|---|---|---|---|
| GR-DL-55B | 7W±5% | Φ64*H47mm | Φ55mm | 600-700lm | Datasheet |
| GR-DL-75B(9W) | 9W±5% | Φ84*52mm | Φ75mm | 830-900lm | Datasheet |
| GR-DL-75B(12W) | 12W±5% | Φ84*52mm | Φ75mm | 1000-1200lm | Datasheet |
| GR-DL-95B(15W) | 15W±5% | Φ104*57mm | Φ95mm | 1300-1500lm | Datasheet |
| GR-DL-95B(18W) | 18W±5% | Φ104*57mm | Φ95mm | 1550-1800lm | Datasheet |
- Emergency backup kits
- 0-10V/ Phase triac dimming/DALI dimming
- 3CCT color changing
- Zigbee smart downlight

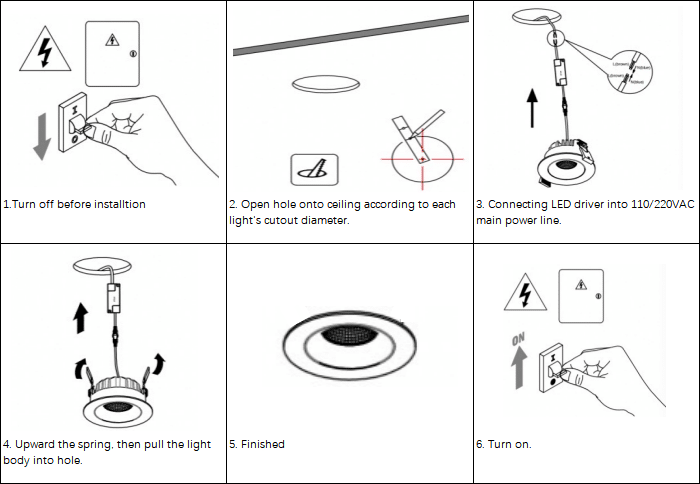

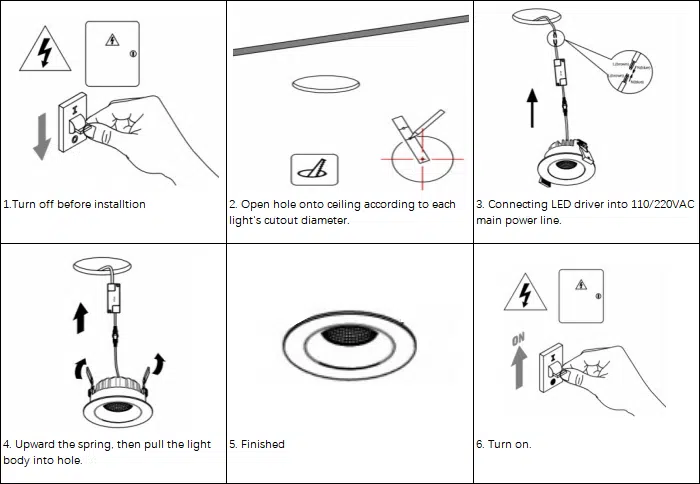

The installation drawing is as follows
