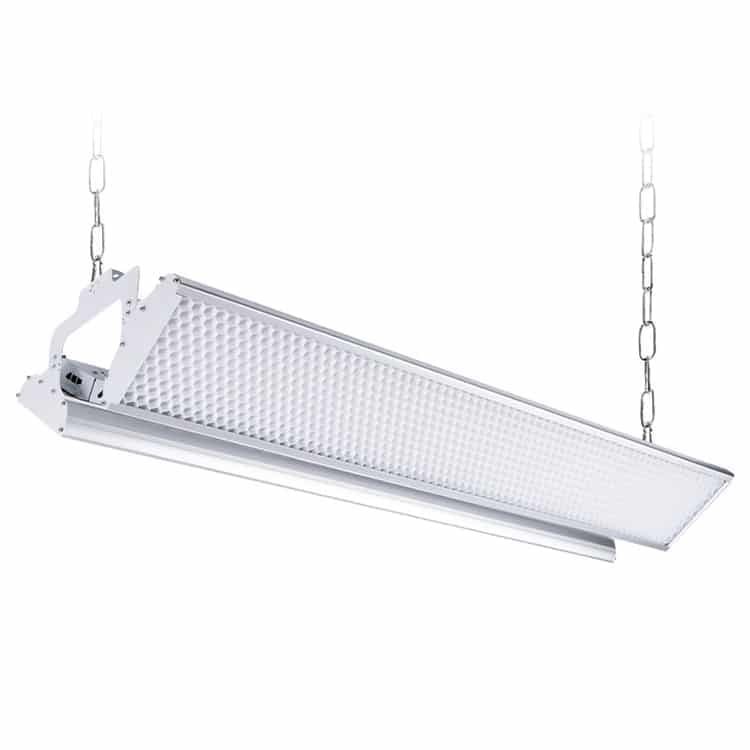

  • 4ft LED flat highbay lights

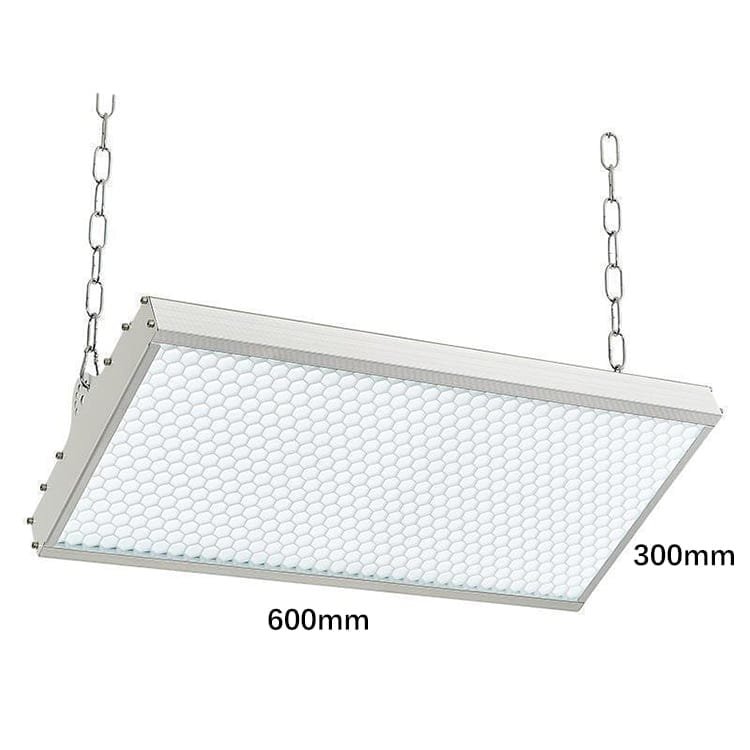

  • 60cm led high bay lights

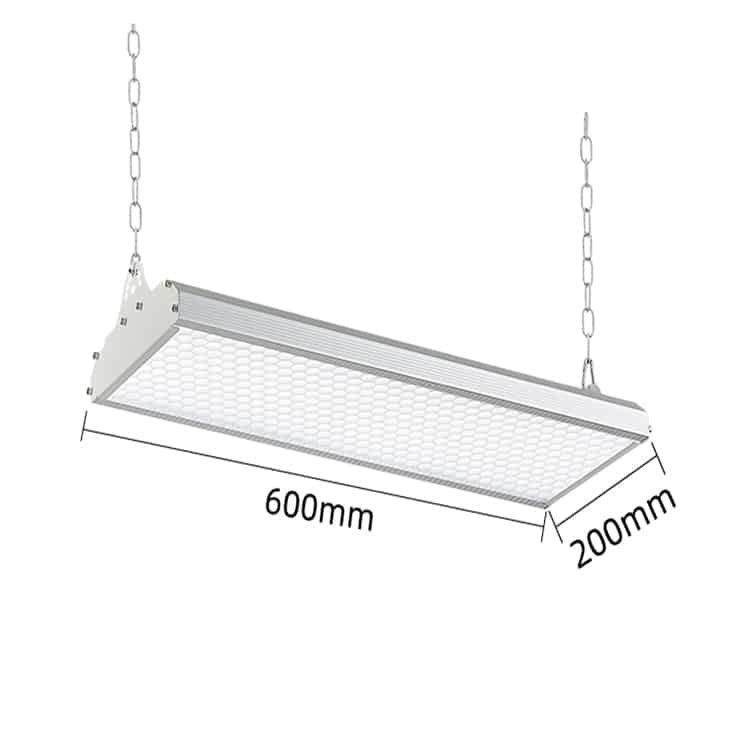

  • 600mm led high bay lights

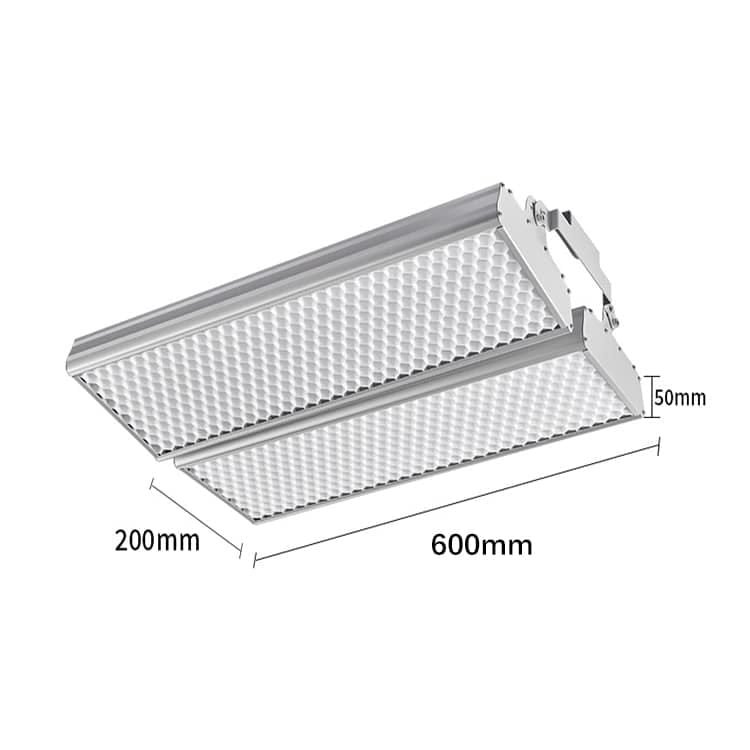

  • 2x2 led high bay lights

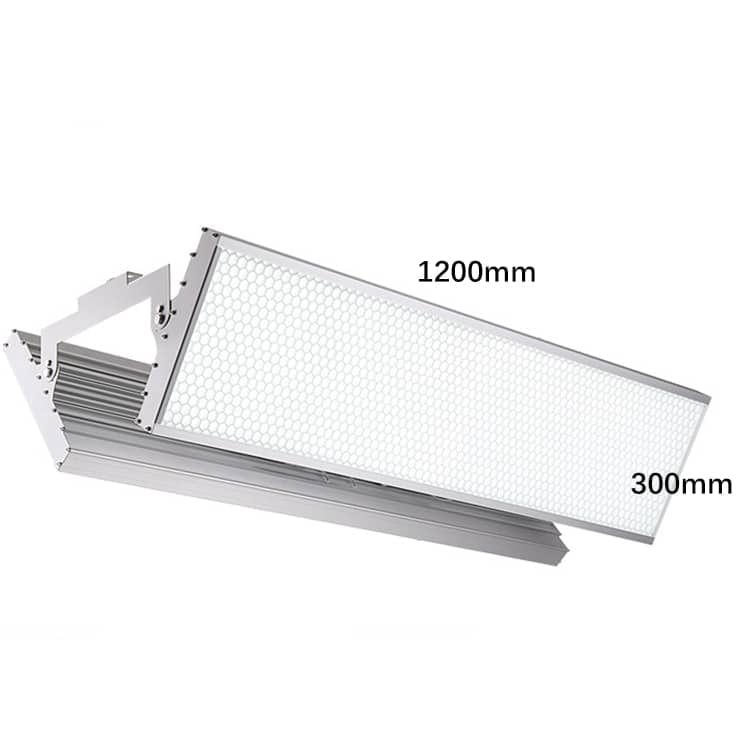

  • 2x4 led high bay lights

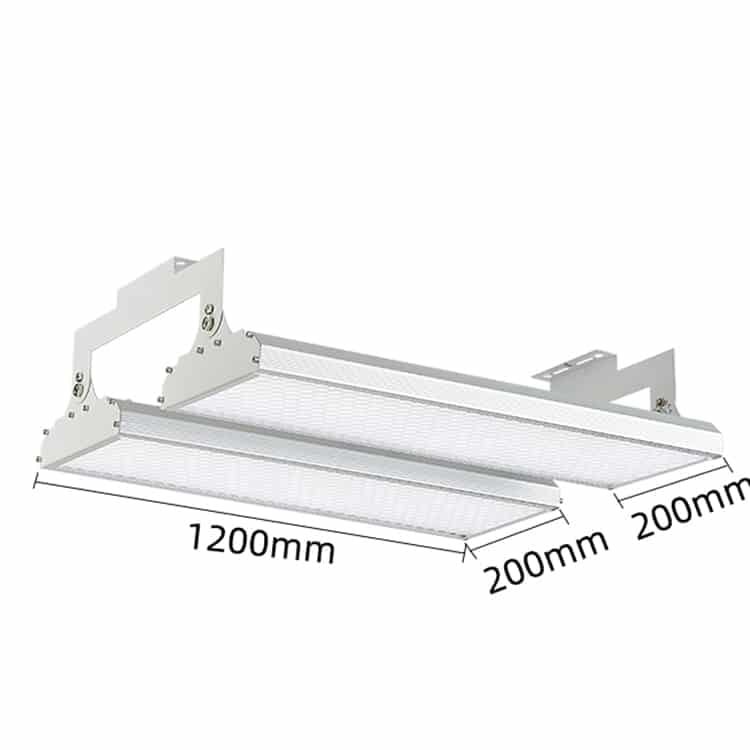

  • 2x4 led linear high bay lights

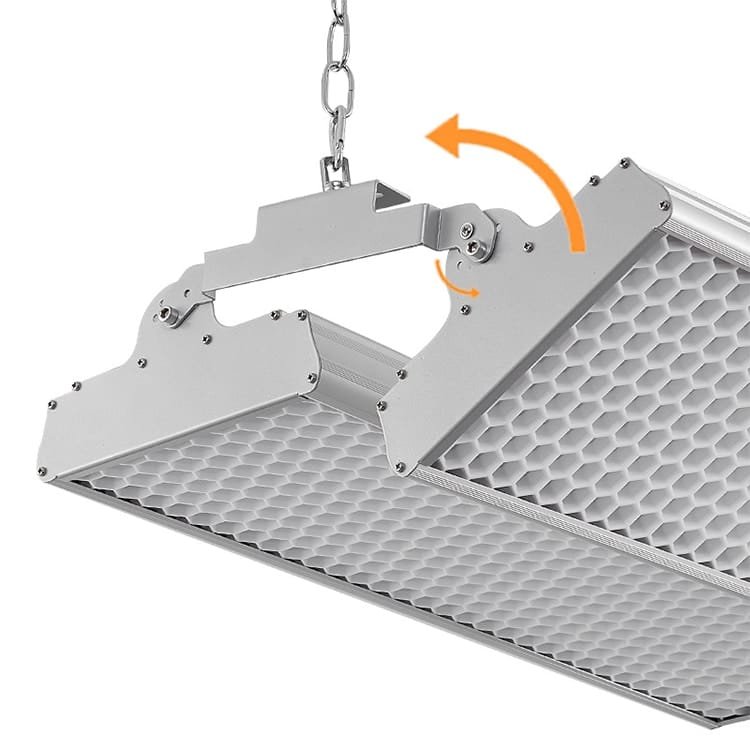

  • anti glare led high bay lights

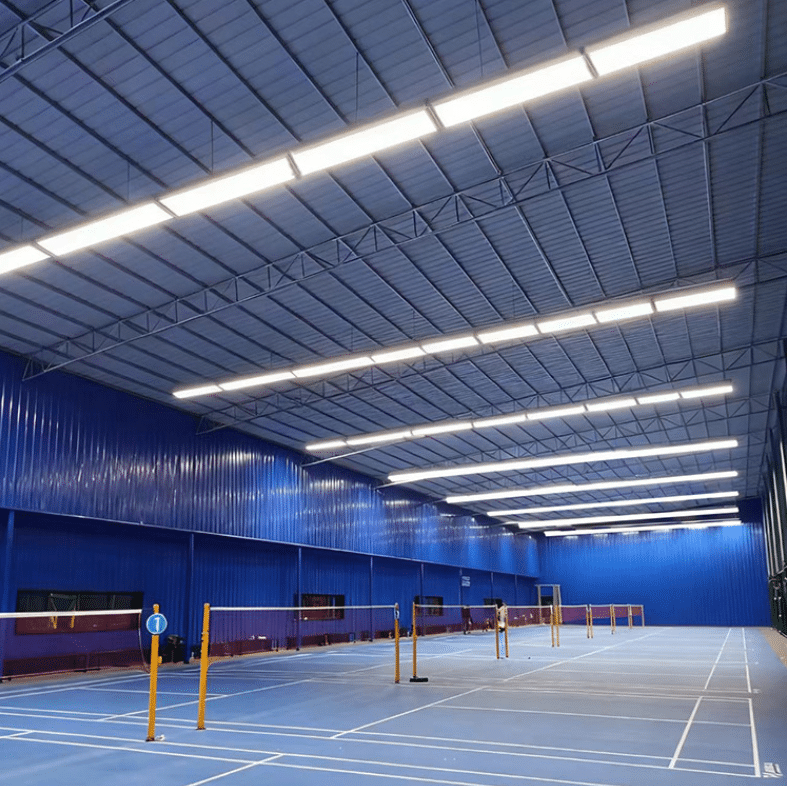

    • This linear high bay LED light is flat type with an anti-glare honeycomb cover, including 2ft and 4ft length, and can be surface mounted, wall mounted, and suspension mounted installation, offering options in 50W-500Watt. widely used for industrial lighting for workshops, factories, warehouses, and indoor stadium lighting for indoor basketball fields, badminton courts, table tennis halls, etc.

    • Ref Model: GR-HB-L-06Series
    • Wattage: 50W 100W 150W 200W 250W 300W 400W 500W
    • Length: 2ft 4ft
    • Color finished: Grey as standard; black finished available.
    • Installation: Surface mounted/ Suspended / Wall mounted optional
    • Lumens:100-120lm/W
    • Protect grade: IP44 IK08
    • Certificates: CE RoHS
    • Working temperature: -30/+60℃
    • Manufacturer warranty: 3/5years
    • Origin: Made in China
    • MOQ: 50PCS/Model

    GRNLED offers the best price in the market. Better quality but at a lower price.

    QUOTE
    GR-HB-6020L-061 row50W-100WL600*W200mm100lm-120lm/W3000K-6500K120°>70IP44IK08100-265VAC 50/60HzDownload
    GR-HB-6030L-061 row100W-150WL600*W300mm (2ft)100lm-120lm/W3000K-6500K120°>70IP44IK08100-265VAC 50/60HzDownload
    GR-HB-12020L-061 row100W-200WL1200*W200mm (4ft)100lm-120lm/W3000K-6500K120°>70IP44IK08100-265VAC 50/60HzDownload
    GR-HB-12030L-061 row200W-250WL1200*W300mm100lm-120lm/W3000K-6500K120°>70IP44IK08100-265VAC 50/60HzDownload
    GR-HB-6020L2-062 row100W-200WL600*W400mm100lm-120lm/W3000K-6500K120°>70IP44IK08100-265VAC 50/60HzDownload
    GR-HB-6030L2-062 row200W-300WL600*W600mm100lm-120lm/W3000K-6500K120°>70IP44IK08100-265VAC 50/60HzDownload
    GR-HB-12020L2-062 row200W-400WL1200*W400mm100lm-120lm/W3000K-6500K120°>70IP44IK08100-265VAC 50/60HzDownload
    GR-HB-12030L2-062 row400W-500WL1200*W600mm100lm-120lm/W3000K-6500K120°>70IP44IK08100-265VAC 50/60HzDownload

    Body & Finished

    • Body: Die-cast aluminum body, good heat performance, anti-UV.
    • Color: aluminum color.
    • Cover: PMMA Cover, anti-UV, and honeycomb cover.
    • Suspension rope: Steel, 1M length
    • Surface part: metal ( optional)

    Control Gear/led driver

    • Brand: Suncom as standard; Moso/Meanwell/Osram/Philips/LiFud driver optional
    • Input voltage:100/220-265VAC 50/60Hz
    • Output voltage: 36VDC
    • Efficiency:>89%
    • THD:<15%
    • Built-in surge protection: 4-6/10KV
    • Power factor:>0.95
    • IP Grade: IP65 waterproof
    • Working life: 50000hrs
    • Certificates: CE RoHS ENEC
    • Warranty: 3/5Years

    Optical

    • Led chips brand: Lumileds/Bridgelux
    • Light source type: SMD3030/2835
    • Lumens:140-180lm/W
    • Color temp: 3000K, 4000-4200K, 5700-6200K
    • SDCM:<5
    • LM80
    • Emergency backup (1hrs,2hrs duration)
    • Dimming (PWM/0-10V/DALI dimmable)
    • Surface bracket

    The installation includes wall mounted installation, suspended installation and surface mounted installation. The drawing as following:

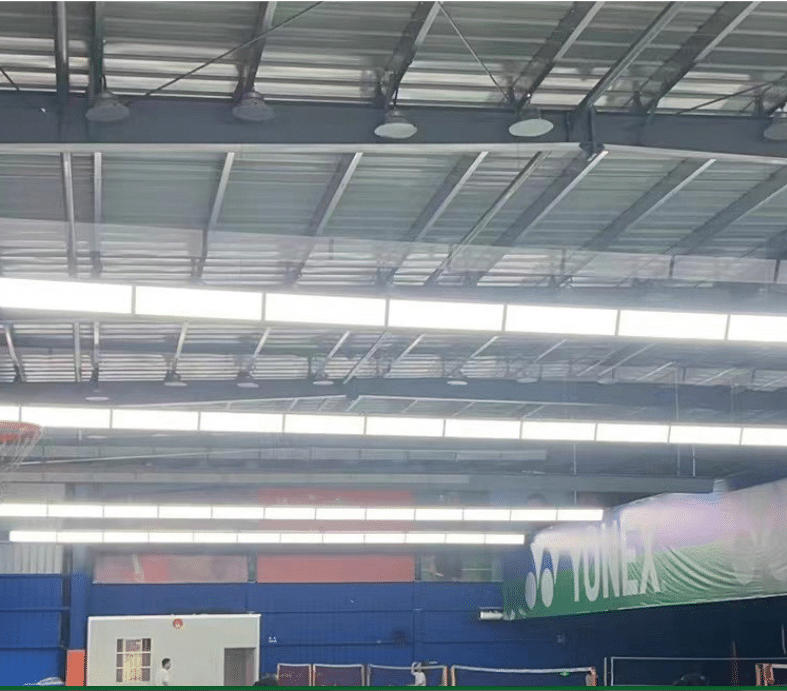

    Warehouse, gym, factory, workshop, indoor basketball field, etc.
