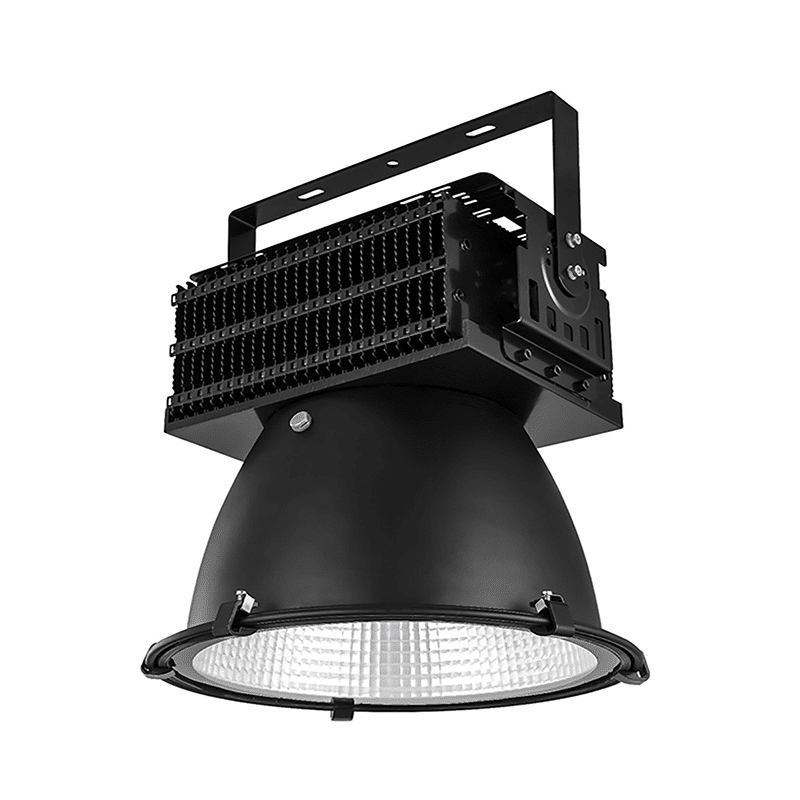

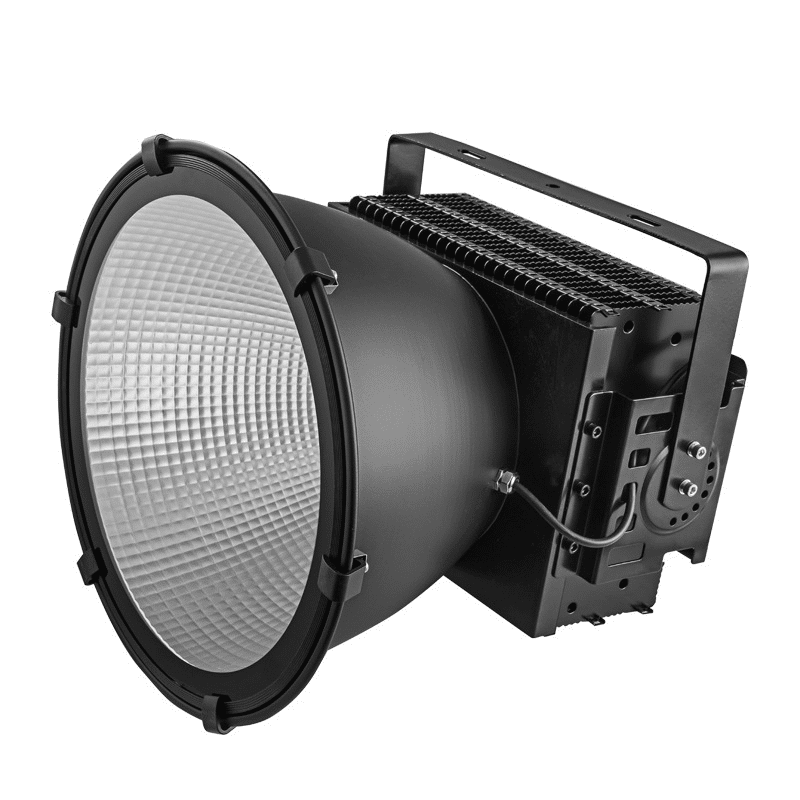

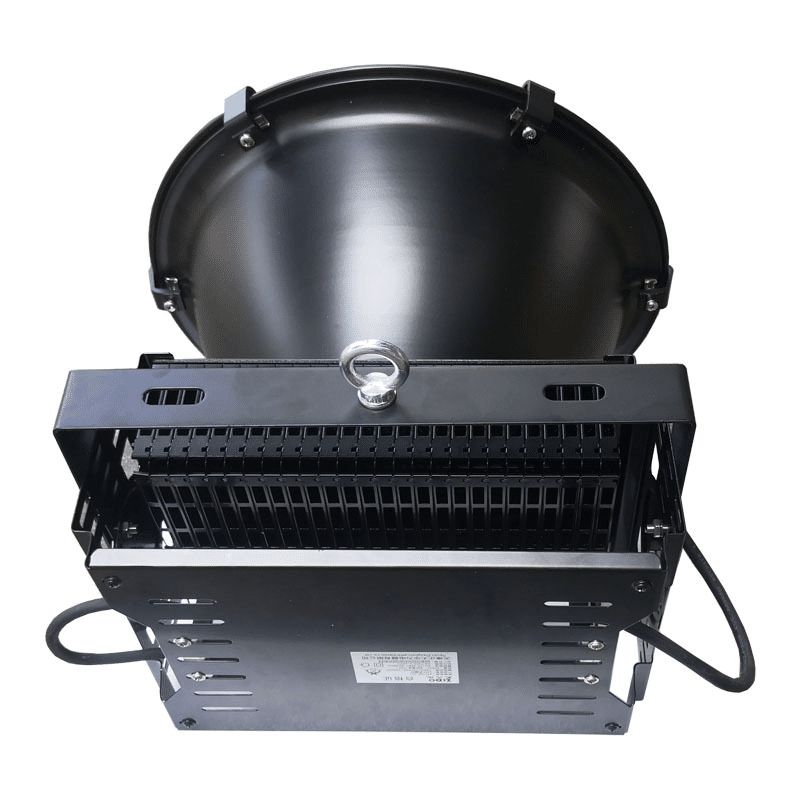

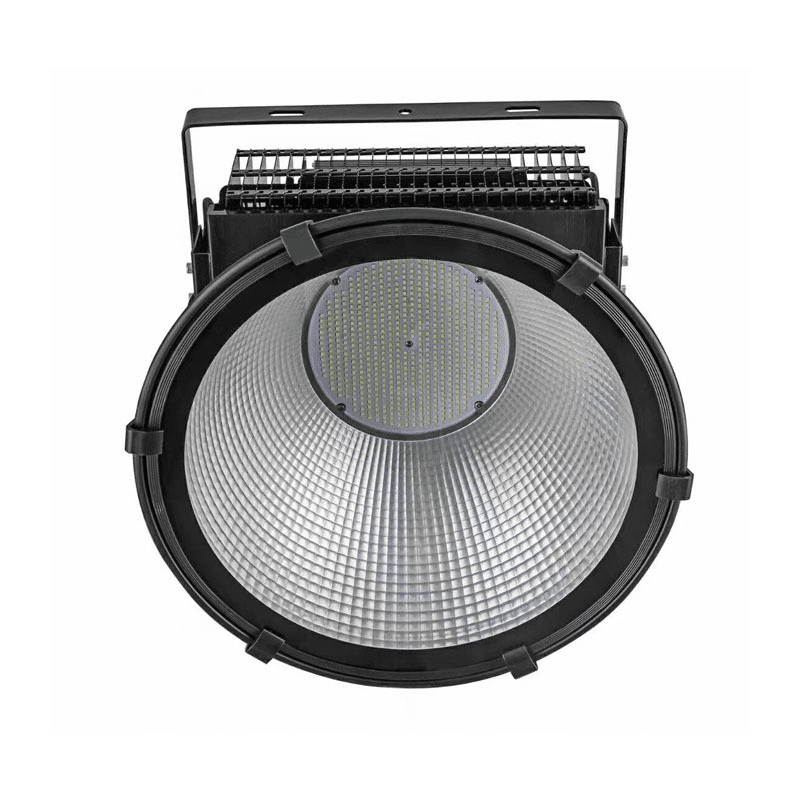

LED Flood Light for Tower Crane 300W-1000Watt | Model: GR-FL-G
This LED flood light has a shockproof & durable design. Super bright long-distance illumination, waterproof, dustproof. Perfect as a tower crane light for construction sites, building engineering, and night-working lighting, and for outdoor area lighting for a football field light or high-mast light.
- LED chips: Philips SMD3030
- CRI: >70, or 80 options
- Color temperature: 2700-6000K
- SDCM:<5
- LED power supply: Sosen/Moso/Meanwell/Philips/Suncom driver brand options
- Input voltage: 110-277VAC 50/60Hz
- Luminous flux: 110-130lm/W output
- Power factor: >0.95
- THD: <10%
- Material: Die-cast aluminum body + Toughed glass cover + 180° rotation bracket
- Finished: Matt black
- IP rating: IP65
- IK rating: IK08
- Working temp: -25/+55℃
- Working life: > 50000Hrs
- Certificate: CE RoHS
- Manufacturer warranty: 3/5 years
| Ref Model | Wattage | Dimension | Beam angle | Luminous flux | Datasheet |
|---|---|---|---|---|---|
| GR-FL-300WG | 300Watt ±5% | Ø367*H379mm | 25° / 60° | 36000-39000lm | Download |
| GR-FL-400WG | 400 Watt ±5% | Ø426*H488mm | 60° | 48000-50000lm | Download |
| GR-FL-500WG | 500 Watt±5% | Ø426*H488mm | 60° | 60000-6500lm | Download |
| GR-FL-800WG | 800Watt ± 5% | Ø448*H573mm | 60° | 90000-10000lm | Download |
| GR-FL-1000WG | 1000Watt ± 5% | Ø508*H573mm | 60° | 110000-12000lm | Download |
- PWM/0-10V/DALI dimmable
- Emergency backup kit
- Football Field lighting
- Warehouse lighting
- High-mast lighting
- Tower crane lighting
- Football field lighting

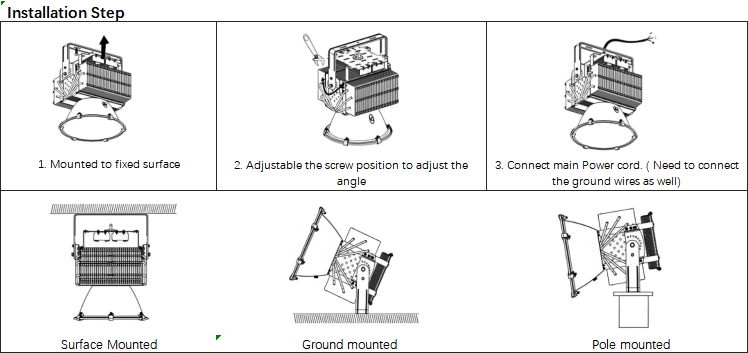

The following is an installation step drawing. You can also download the PDF for the user manual for this LED floodlight.
