Adjustable Beam Angle Track Light | Model: GR-TL-D

GR-TL-D Series track light boasts an adjustable beam angle facilitated by the rotation of the front ring. This single light offers four beam angles – 15°, 24°, 38°, and 60° – providing versatile lighting options. Additionally, the light head can be rotated 360° or 90°, enhancing flexibility in directing light.
Designed for both basic and localized lighting needs, this track lighting fixture is particularly well-suited for high-end commercial spaces like museums, supermarkets, and clothing stores. The fixture is crafted using CRI90 COB LED Chips and a reliable LiFud Brand driver, ensuring a long-lasting performance with minimal maintenance concerns.

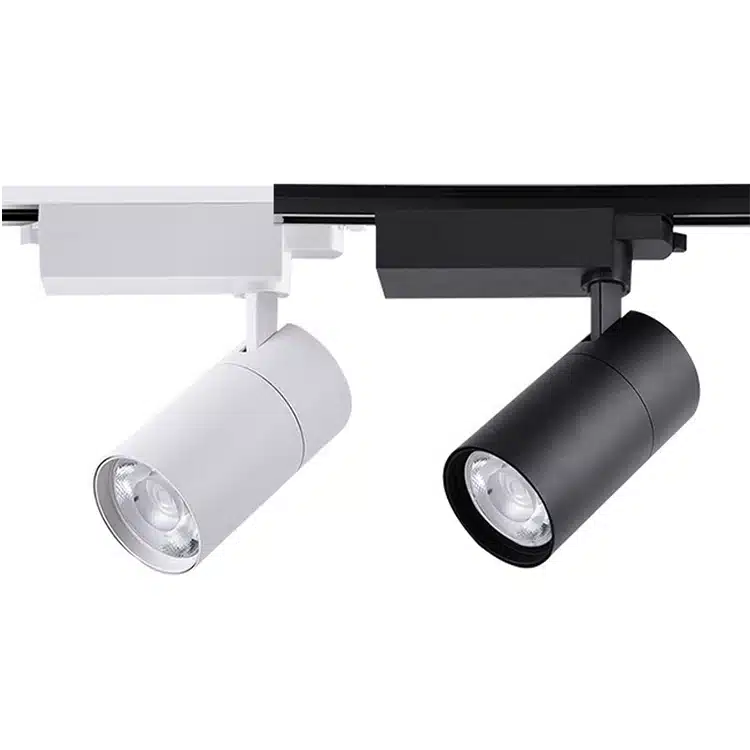

  • Track head: 2 wires (1 circuit) as standard; 4wires ( 3 circuits) optional.
  • Power: 10W 15W 20W 25W 30Watt
  • Beam Angle: 15/24/38/60°adjustable
  • Control way: ON/OFF as standard; Triac/0-10V/DALI options
  • Working temperature:-25℃/+55℃
  • Lifetime: 50000hrs
  • Warranty: 3/5 years
  • Certificate: CE RoHS
  • MOQ: 30pcs/model

GRNLED offers the best price in the market.

Order modelWattageDimensionLumensColor temperatureSDCMCRI(Ra)Track headBeam angleInput voltageDATASHEET
GR-TL-10WD10W±5%Φ55*135mm900-1100mm3000K 4000K 6000K<5>902/3/4wiresAdjustable from 15° to 60°110/220-240VAC 50/60HzDownload
GR-TL-15WD15W±5%Φ65*165mm1350-1600lm3000K 4000K 6000K<5>902/3/4wiresAdjustable from 15° to 60°110/220-240VAC 50/60HzDownload
GR-TL-20WD20W±5%Φ75*170mm1800-2200lm3000K 4000K 6000K<5>902/3/4wiresAdjustable from 15° to 60°110/220-240VAC 50/60HzDownload
GR-TL-25WD25W±5%Φ75*170mm2300-2600lm3000K 4000K 6000K<5>902/3/4wiresAdjustable from 15° to 60°110/220-240VAC 50/60HzDownload
GR-TL-30WD30W±5%Ø80*L200mm2800-3200lm3000K 4000K 6000K<5>902/3/4wiresAdjustable from 15° to 60°110/220-240VAC 50/60HzDownload

Material & Finished

  • Housing (heat sink): Aluminum body, black/ white powder coated. The internal radiator and the shell are integrally die-casted, and the heat dissipation effect is more.
  • Front ring: Aluminum ring, rotation for changing the beam angle.
  • Lens/reflector: Optical lens, good secondary light distribution effect
  • LED Power Supply: DONE driver or LIFUD driver as standard. Philips/Osram driver option.
  • Light source: Bridgelux LED COB chips with gold wires & copper brackets, top quality.
  • Track heads: Plastic body, white/black finished, 2 wires track head as standard, the 3wires or 4 wires(3-circuits) can be optional

Photometric Data

  • Input voltage:100-265VAC 50/60Hz or 220-240VAC for LIFUD /Philips
  • Power Factor:>0.5 for DONE; >0.9 for LIFUD/Philips/Osram driver
  • Color rendering index:>90
  • Lumens:90lm-100lm/W output.
  • SDCM:<3
  • Efficiency:>88%
  • Color temperature: 3000K/4000K/6500K
  • Compliance: CE RoHS Certified
  • Manufacturer Warranty:3/5Years.
  • Zigbee Intelligent control by Phone APP, Google home, AMAZON Alexa.
  • Dimming ( selecting the triac dimmable or 0-10V, DALI dimmable driver to be dimmable track lights)
  • 3Phases(4Wires)

Before installing the track spot light, first reserve the wiring position, then punch a mounting hole in the ceiling, connect the power cord to the track light, and wrap the insulating tape, then use a screwdriver and screws to fix the light and the track, and Adjust the illumination direction of the lamp. After installation, you can turn on the track light to check its lighting effect.

Q: What is beam angle in led lights?

A: The beam angle in LED lights refers to the angle at which the light source or lamp emitted. That is, the angle formed by the boundary of a certain intensity range of the beam. It determines the spread of light and the area that the light can cover.

Usually, beam angle reflects the light spot and illuminance on the illuminated surface. When other conditions are same, the larger the beam angle is, the smaller the central light intensity is, the larger the spot is, and the smaller the illuminance is, and vice versa.

For example, a spotlight may have a narrow beam angle of around 15-30 degrees, ideal for directing light to a specific object or area. On the other hand, a floodlight might have a wider beam angle of 90 degrees or more, suitable for illuminating a larger space.

Q:Are track lights movable?

A: Yes ,of course. Track light is a kind of lighting fixture installed on a track rail. Both normal track light and magnetic track light are all movable.
