Outdoor Wall Lights GU10/COB 5W 10W | Model: GR-BD-F

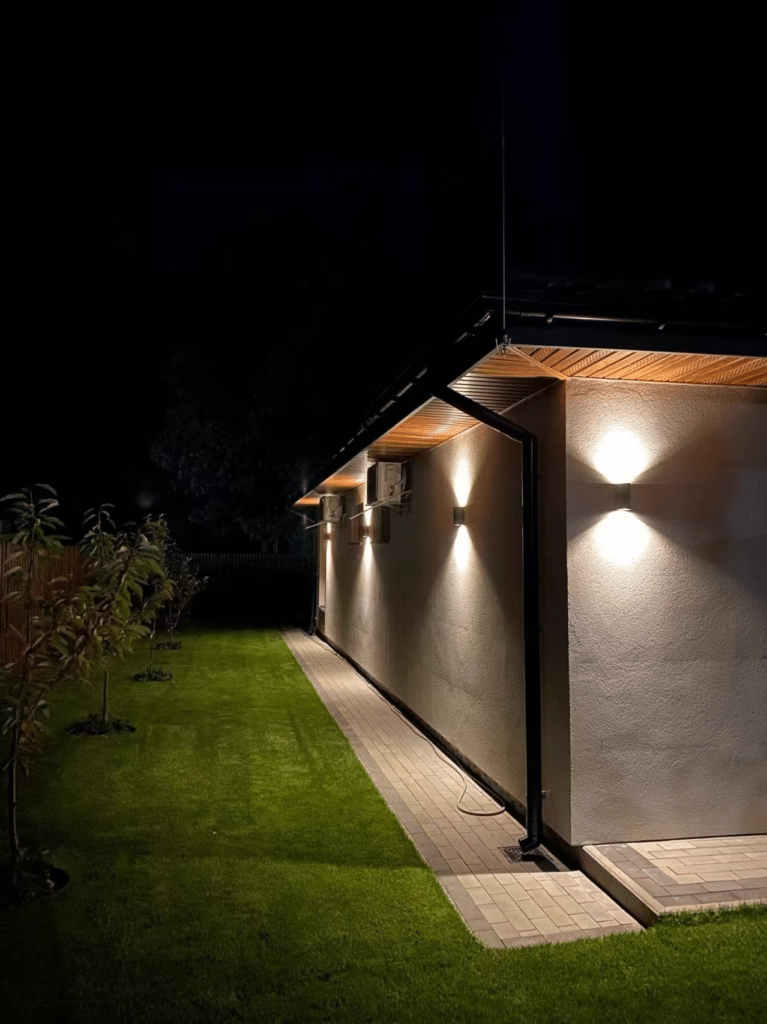

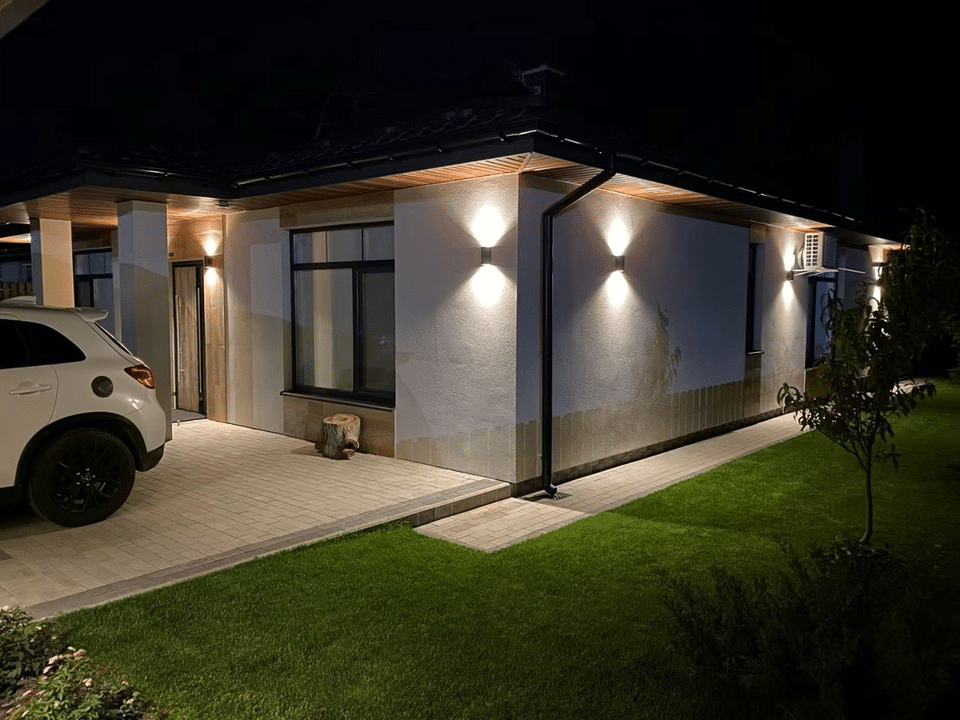

GR-BD-F Series external wall light fixture contains two appearances of square and semi-circle, each has two options of one-way lighting and up-down two-way lighting. They use a COB light source as the standard version, and can also be made into GU10 Bulbs. Widely used for gardens, building exterior wall, etc.
Materials & Finished
- Housing: Die-cast aluminum body, Grey/Matt black powdered coated.
- Heat sink: Pure aluminum heat sink parts.
- Cover: toughed glass cover, clear type.
- Transformer: Internal Isolated constant current driver.
- Light source: Bridgelux high power COB led chip, or GU10 LED bulb source.
Additional Options
- Low voltage DC12V/DC24V/DC36V/DC48V/60V
- Photocell (Dusk to Dawn)
- PIR/Motion Sensor
- Dimmable (PWM/0-10V/DALI)
Electrical & Optical
- Input voltage:110-120V/220V-240VAC 50/60Hz
- Power Factor:>0.5
- Base: GU10 option
- Color rendering index:>80
- SDCM:<5
- Efficiency:>85%
- IK level: IK07
- IP Rating: IP65/ IP66 Max
- Beam angle: 30°/60°
- Working life:>50000Hrs
- Color temperature: 3000K Warm white /4000K Daylight /6500K Cold white
- Working temperature:-25℃/+60℃
- Compliance: CE RoHS Certified
- China Manufacturer Warranty:2/3/5Years.
Models and Details
| Order Model | Wattages | Shape | Dimension | Lumens | IP Rate | IK Rating | Color temperature | Input voltage | CRI | Datasheet |
| GR-BD-5WF-R | 5W | semi-circle | L80*W70*H80mm | 450-500lm | IP66 | IK07 | 3000K/4000K/6500K | 110-120V/220-240VAC | >80 | Download |
| GR-BD-5WF-S | 5W | Square | L80*W70*H80mm | 450-500lm | IP66 | IK07 | 3000K/4000K/6500K | 110-120V/220-240VAC | >80 | Download |
| GR-BD-2*5WF-R | 2*5W(10W) | semi-round | L80*W70*H150mm | 900-1000lm | IP66 | IK07 | 3000K/4000K/6500K | 110-120V/220-240VAC | >80 | Download |
| GR-BD-2*5WF-S | 2*5W(10W) | Square | L80*W70*H150mm | 900-1000lm | IP66 | IK07 | 3000K/4000K/6500K | 110-120V/220-240VAC | >80 | Download |
