Inground Light 1W – 48W
GR-GL-A series is top-quality outdoor inground light for landscape lighting, come with warm white, cool white, red, green, and blue colors, or RGB. Realize the waterproof level up to IP67 through epoxy resin and a waterproof rubber ring. Available 1W 3W 6W 9W 12W 15W 18W 24W 36W 48W in wattages.Widely used for plazas, public places, commercial lighting for parks, backyards, gardens, etc.
GRNLED offers the best price in the market.
| Order Model | Wattages | Hole cut | Lumens | IP Rate | IK Rating | Color temperature | Input voltage | Datasheet |
| GR-GL-1WA | 1W | Ø58mm | 90-100lm | IP67 | IK07 | 3000K/6500K/R/G/B/RGB | 110-120V/220-240VAC | Download |
| GR-GL-3WA | 3W | Ø105mm | 270-300lm | IP67 | IK07 | 3000K/6500K/R/G/B/RGB | 110-120V/220-240VAC | Download |
| GR-GL-6WA | 6W | Ø115mm | 540-600lm | IP67 | IK07 | 3000K/6500K/R/G/B/RGB | 110-120V/220-240VAC | Download |
| GR-GL-9WA | 9W | Ø150mm | 810-900lm | IP67 | IK07 | 3000K/6500K/R/G/B/RGB | 110-120V/220-240VAC | Download |
| GR-GL-12WA | 12W | Ø150mm | 1060-1200lm | IP67 | IK07 | 3000K/6500K/R/G/B/RGB | 110-120V/220-240VAC | Download |
| GR-GL-15WA | 15W | Ø175mm | 1350-1500lm | IP67 | IK07 | 3000K/6500K/R/G/B/RGB | 110-120V/220-240VAC | Download |
| GR-GL-18WA | 18W | Ø 195mm | 1600-1800lm | IP67 | IK07 | 3000K/6500K/R/G/B/RGB | 110-120V/220-240VAC | Download |
| GR-GL-24WA | 24W | Ø210mm | 2200-2400lm | IP67 | IK07 | 3000K/6500K/R/G/B/RGB | 110-120V/220-240VAC | Download |
| GR-GL-36WA | 36W | Ø240mm | 3300-3600lm | IP67 | IK07 | 3000K/6500K/R/G/B/RGB | 110-120V/220-240VAC | Download |
| GR-GL-48WA | 48W | Ø290mm | 4400-4800lm | IP67 | IK07 | 3000K/6500K/R/G/B/RGB | 110-120V/220-240VAC | Download |
Body & Finished
- Trim: 304 stainless steel frame.
- Housing: Aluminum body, good heat performance.
- Lens: PMMA lens, 30° beam angle
- Cover: High temperature and explosion-proof toughed glass. Clear/Frosted option.
- Transformer: Isolated led power supply, high surge protection level.
- LED Chips: high power Bridgelux led chips, high CRI, and brightness.
- Screws: Stainless steel screws included.
- Embedded parts: ABS materials, High strength, and corrosion resistance
Control Gearl/Optical
- Input voltage:110-120V/220V-240VAC 50/60Hz
- Power Factor:>0.9
- Color rendering index:>80
- SDCM:<5
- Efficiency:>88%
- IP Rating: IP67 Waterproof
- Beam angle: 30°
- Working life:>50000Hrs
- Color temperature: 3000K/4000K/6500K/Red/Green/Blue/RGB
- Working temperature:-25℃/+60℃
- Compliance: CE RoHS Certified
- Manufacturer Warranty:2/3/5Years.
- Low voltage input voltage DC12V/DC24V/DC36V/DC48V/60V
- DMX512 Control

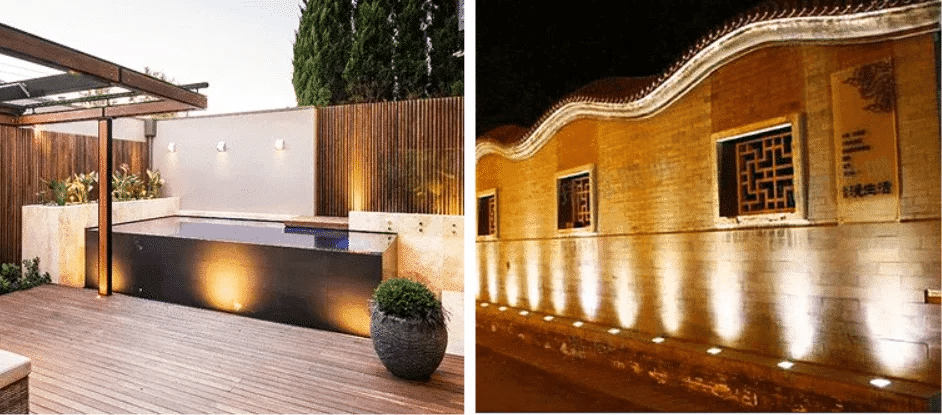

The inground light fixtures only are recessed installation into the ground, there is including ABS embedded parts for easy and quick installation. It can be connected in series or parallel.
Download the installation file, please.
Q: What is inground lights?
A: LED underground lights are a new type of inground decorative lights that use ultra-bright LEDs as the light source and LED constant current drive as power supply. The lamp body and cover are made of pressed adze or 304# precision cast stainless steel, which are sturdy, durable with IP67 waterproof level. With high-strength tempered glass , inground light has a strong light transmission and wide light radiation area, widely used for outdoor lighting in squares, outdoor parks, recreational areas, as well as for park landscaping, lawns, squares, courtyards, flower beds, pedestrian streets decoration, waterfall, fountain, and other places for night scenery lighting, adding brilliance to life.
