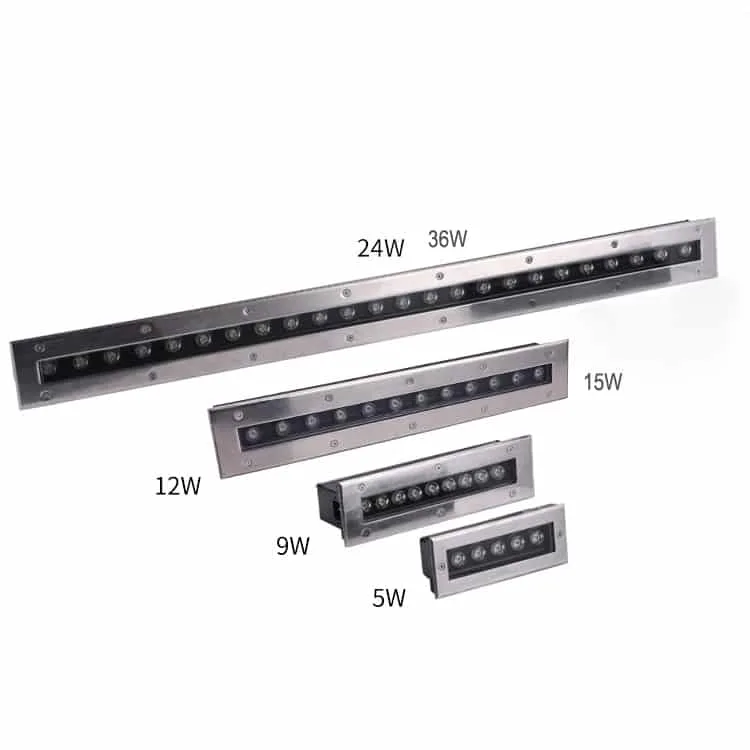

Linear Inground Uplights 6W 9W 12W 24W 36W

GR-GL-L series are linear inground lights, also called outdoor linear uplights, designed to meet the outdoor lighting needs of embedded installations and provide lighting designers with more choices. Contributed to its materials, the lamp has good rust and salt resistance and can be used in outdoor landscape lighting.

  • Ref Model: GR-GL- L series
  • Wattages: 3W 6W 9W 12W 24W 36W
  • Length: 200mm 300mm 500mm 1000mm
  • Installation: Recessed Inground
  • Lumens: 90-100lm/W
  • Light color: 3000K/4000K/6500K/Red/Green/Blue/RGB optional
  • Control Way: ON/OFF
  • Working life:>50000Hrs
  • Working temperature: -25/55℃
  • Storage temperature: -30/60℃
  • Manufacturer warranty: 2/3/5years
  • Origin: China
  • Lead time:7-15days
  • MOQ: 30pcs/model

Order ModelWattagesHole cutLumensIP RatedIK RatingBeam angleColor temperatureInput voltageDatasheet
GR-GL-3WL3WL190*W75mm270-300lmIP67IK0830°3000K/6500K/R/G/B/RGB110-120V/220-240VAC or DC12V 24VDownload
GR-GL-6WL6WL290*W85mm540-600lmIP67IK0830°3000K/6500K/R/G/B/RGB110-120V/220-240VAC or DC12V 24VDownload
GR-GL-9WL9WL290*W85mm810-900lmIP67IK0830°3000K/6500K/R/G/B/RGB110-120V/220-240VAC or DC12V 24VDownload
GR-GL-12WL12WL490*W85mm1060-1200lmIP67IK0830°3000K/6500K/R/G/B/RGB110-120V/220-240VAC or DC12V 24VDownload
GR-GL-24WL24WL990*W85mm2200-2400lmIP67IK0830°3000K/6500K/R/G/B/RGB110-120V/220-240VAC or DC12V 24VDownload
GR-GL-36WL36WL990*W85mm3300-3600lmIP67 IK0830°3000K/6500K/R/G/B/RGB110-120V/220-240VAC or DC12V 24VDownload

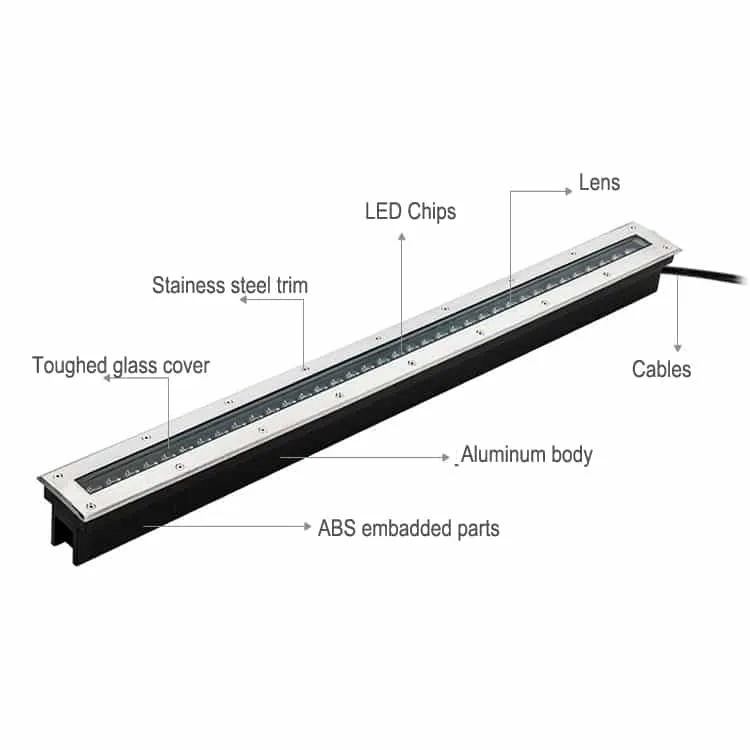

Body & Finished

  • Trim: 304 stainless steel frame.
  • Housing: Aluminum body, good heat performance.
  • Lens: PMMA lens, 30° beam angle
  • Cover: High temperature and explosion-proof toughed glass.
  • Screws: Stainless steel screws included.
  • Embedded parts: ABS materials, High strength, and corrosion resistance

Control Gearl

  • Led driver type: Isolated
  • Input voltage:110-120V/220V-240VAC 50/60Hz as standard, the DC12V 24V input optional
  • Power Factor:>0.9
  • Color rendering index:>80
  • SDCM:<5
  • Efficiency:>88%
  • IP Rating: IP67 Waterproof
  • Working life:>50000Hrs
  • Color temperature: 3000K/4000K/6500K/Red/Green/Blue/RGB
  • Working temperature:-25℃/+60℃
  • Compliance: CE RoHS Certified
  • Manufacturer Warranty:2/3/5Years.
  • Low voltage input voltage DC12V/DC24V/DC36V/DC48V/60V
  • DMX512 Control
  • Single color or RGB
