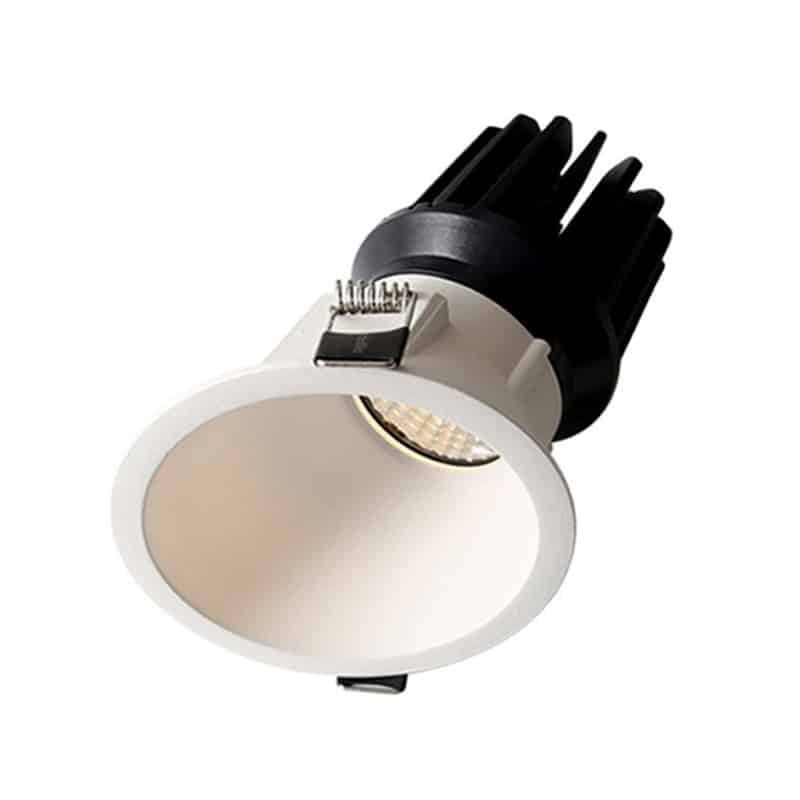

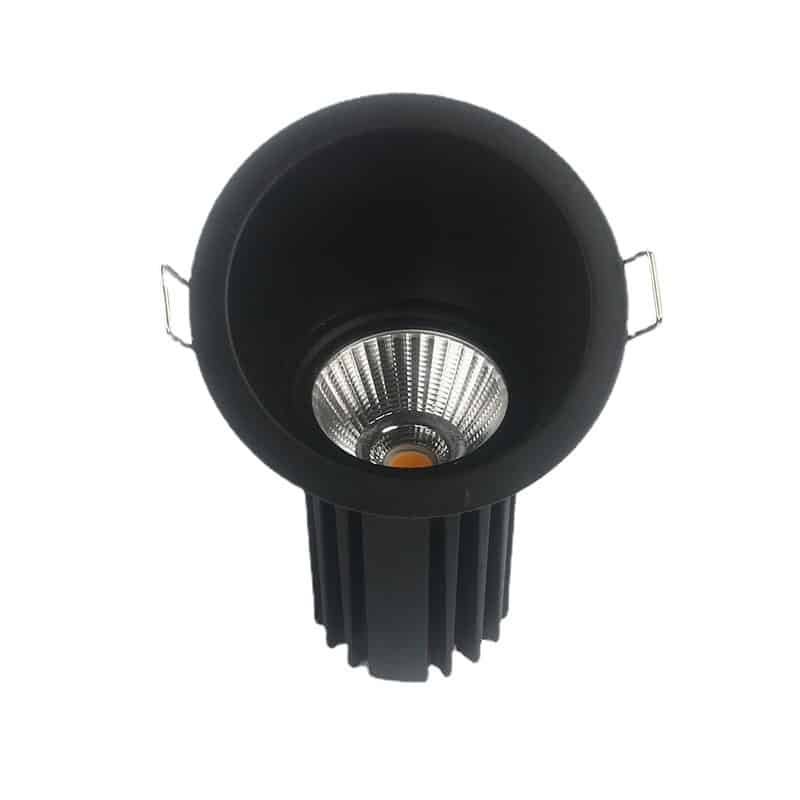

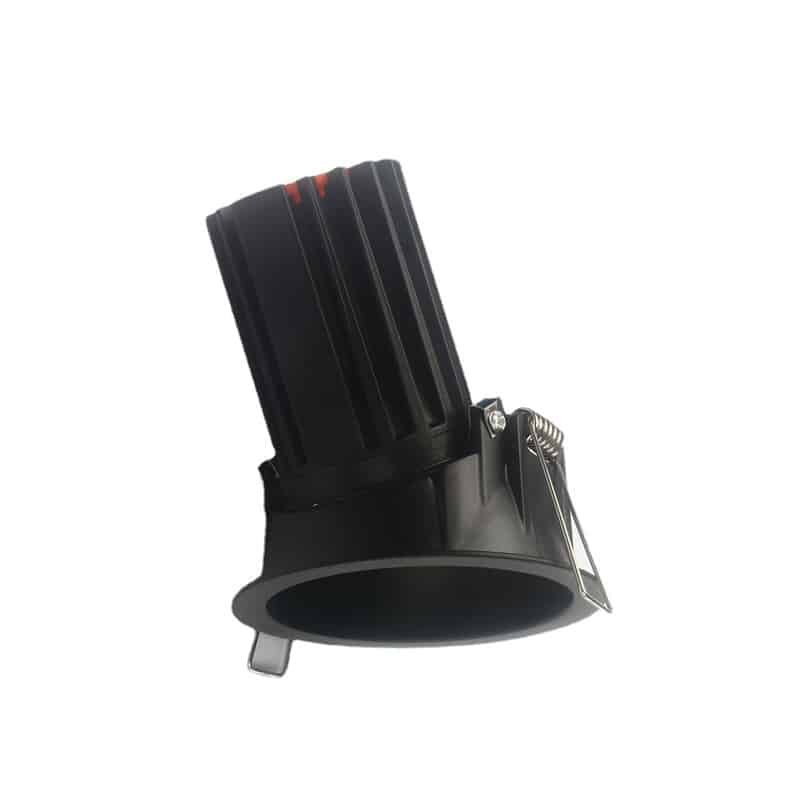

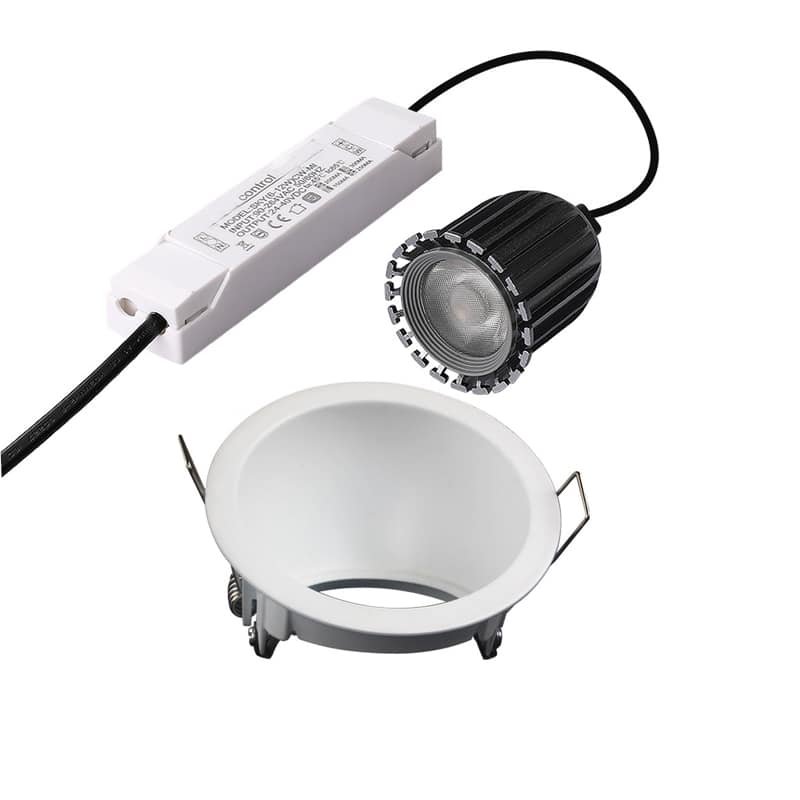

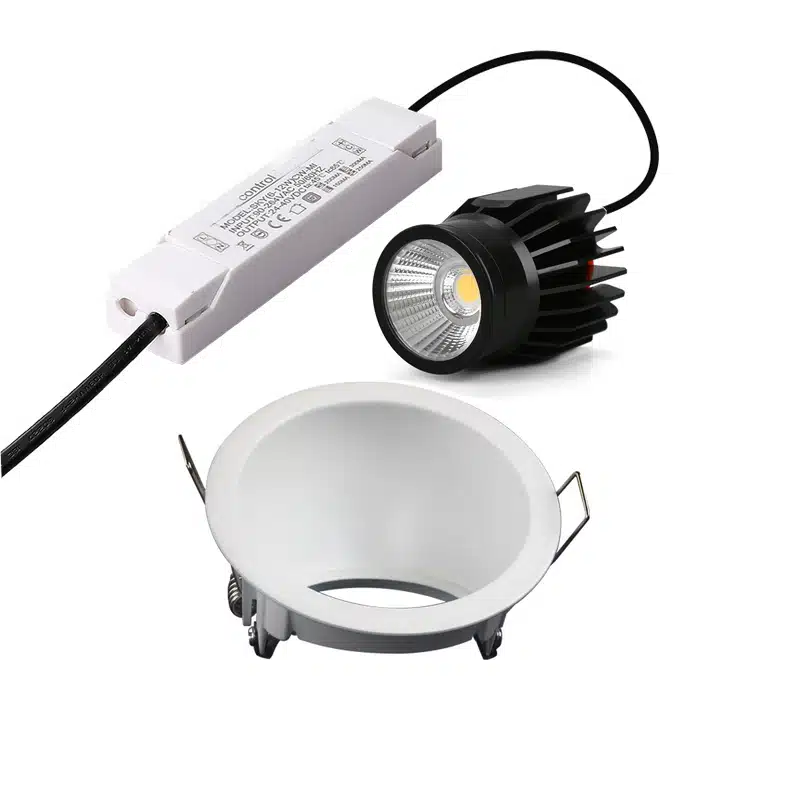

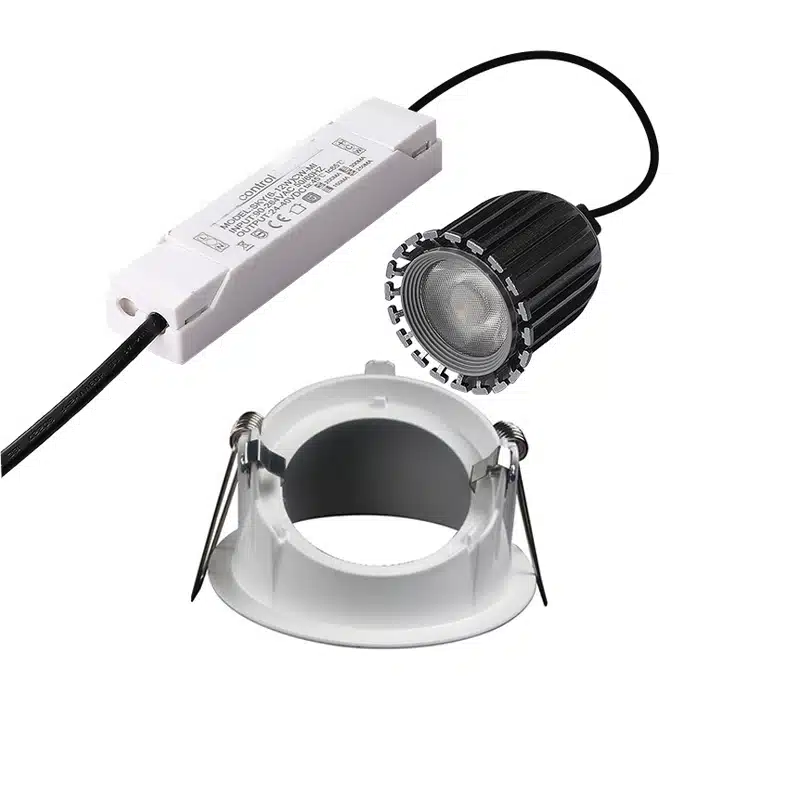

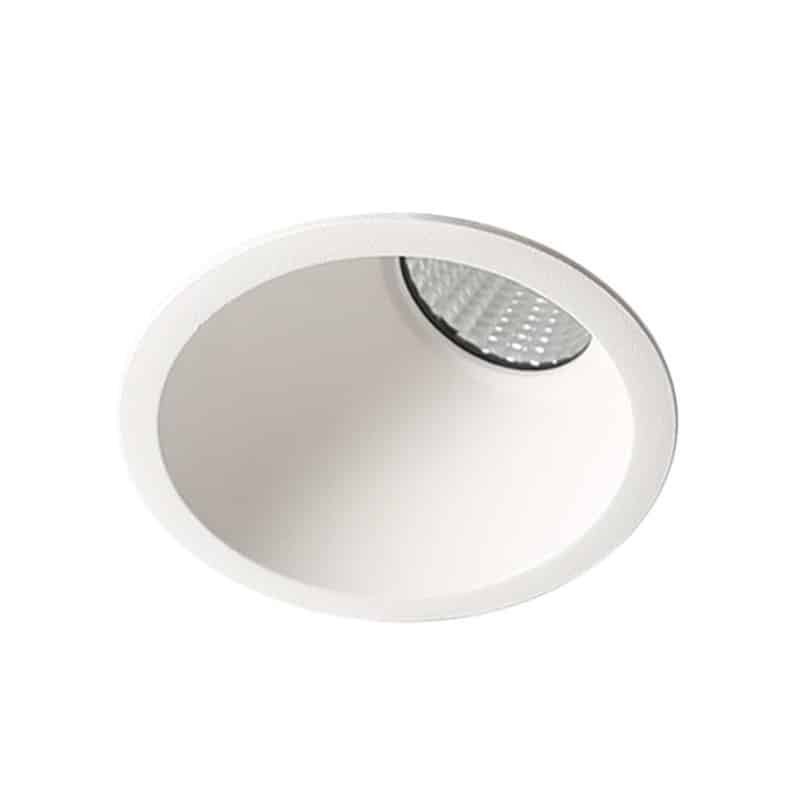

    • This is a recessed commercial spotlight with a tilt-shape design; the trim is tilted, the complete lights include two parts, one is a tilt frame, the second is an LED module with an LED driver or a GU10 LED bulb. Available in matt white and black in finished colors. Widely used wall washer lighting for commercial areas such as hotels, hospitals, and offices.

    • Adjustable: No, it is only fixed
    • Beam angle: 15/24/36/60° options
    • UGR:<17 anti-glare
    • Free flicker: Yes
    • Certificates: CE RoHS
    • Working life: 50000Hrs
    • Warranty: 3/5 Years
    • IP Rating: IP20
    • Input voltage: 110-240VAC 50/60Hz
    • Power factor:>0.5 or 0.8
    • Insulation class: Class 2
    • Materials: Die-cast aluminum, matt white finish
    • LED chips: Osram/ Bridgelux COB
    • CRI:>92; SDCM:<5
    • Color temperature: 3000K warm white/ 4000k natural white/ 6000-6500k cold white
    Get a Quote

    Ref NumberWattagesDimensionCutoutLuminous fluxDownload
    GR-DL-7WGU7W±5%Φ85 mmΦ75mm630-700lmDatasheet
    GR-DL-10WGU10W±5%Φ85mmΦ75mm900-1100lmDatasheet
    GR-DL-15WGU15W±5%Φ110mmΦ100mm1350-1600lmDatasheet
    GR-DL-18WGU18W±5%Φ 110mmΦ100mm1800-2200lmDatasheet

    • Phase dimming; 0/1-10V, DALI Dimmable
    • Low voltage input voltage DC12V/DC24V/DC36V/DC48W
    • Emergency backup (30% power with 1hours 2hours 3hours last)
    • 3CCT by Tuya Zigbee or by a dial switch
