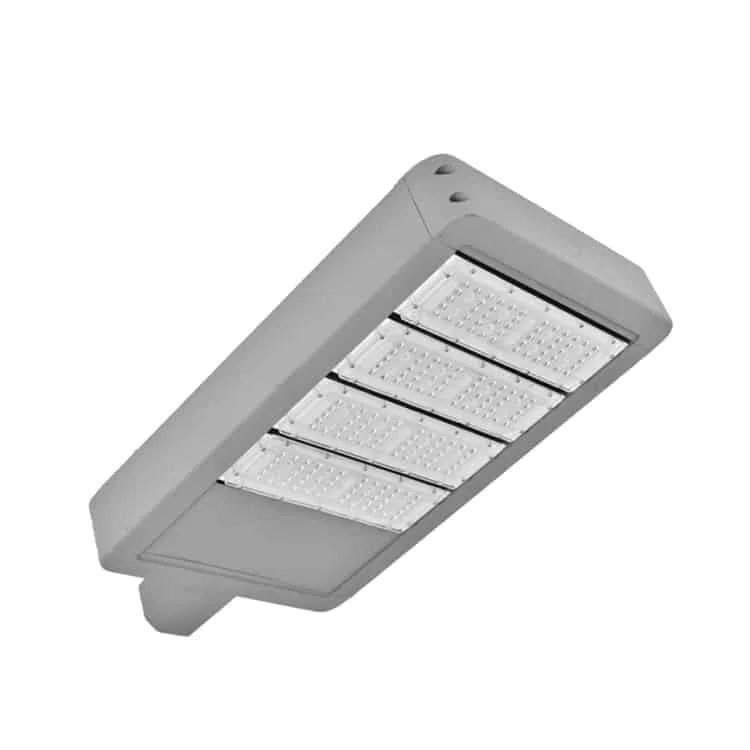

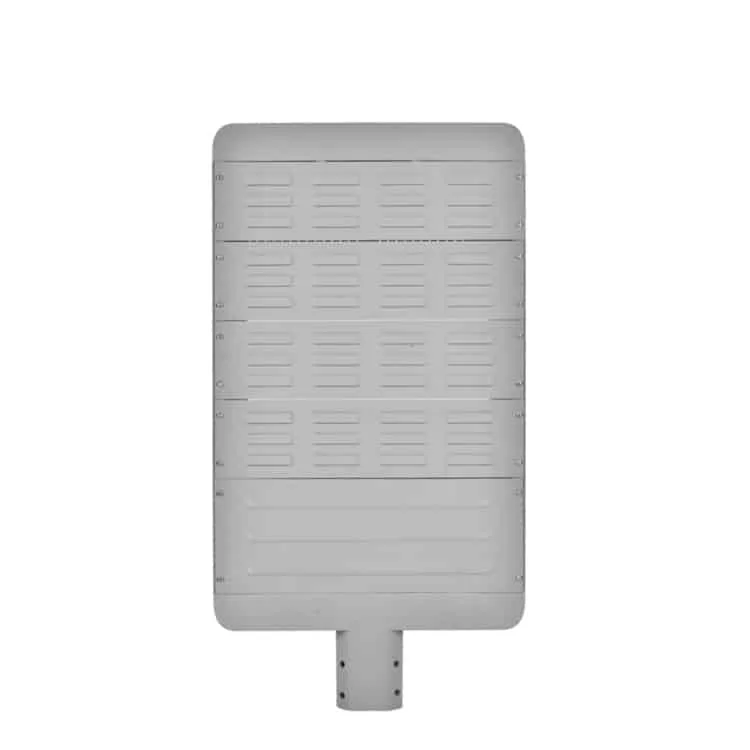

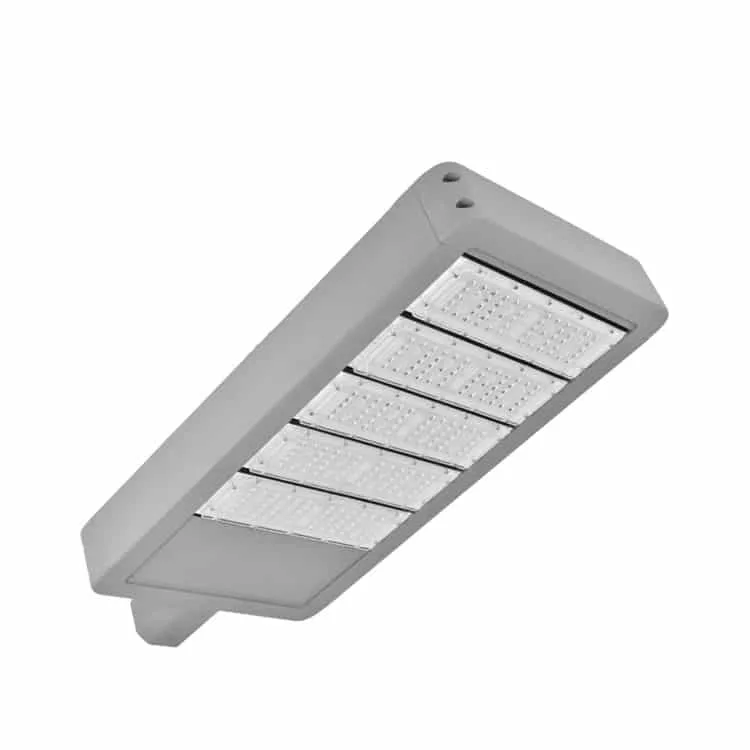

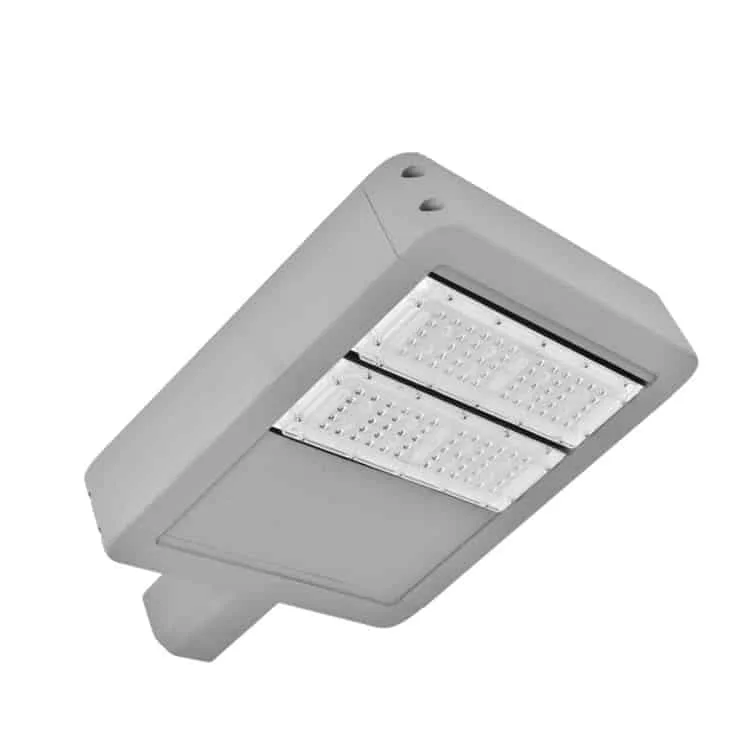

Top Quality LED Street Lighting 100W-400W | Model: GR-SL-Y
GR-SL-Y series is our top grade street lighting, Philips types ( Philips housing, Philips chips, Philips driver available), but without Philips Logo, not from original Philips. Available 90W 100W 120W 150W 200W 250W 300W 400W in wattage. It is knob-style for a light body and easy to do replacement or repair. And available to use cut-off switch for it as well. The surge protection is up to 6-20KV. Widely used for the government roadway project.
Materials
- Body: Aluminum with grey powder-coated finished.
- Reflector: Stainless steel reflector and nano reflector optional.
- Light source: Philips SMD3030 chips, LM70/80. High lumens output.
- Lens: PMMA materials, high quality.
- Control gear: Philips driver, Meanwell, DONE, Moso, SOSEN driver available,3/5Years warranty.
- Tool-free open for easy installation, replacement, and maintenance.
Additional Options
- Time control/Photocell control
- Dimming (PWM/0-10V/DALI Dimmable)
- Cut-off Switch device
- 10KV/20KV SPD Device
Parameters
- Lumens: 110-130lm/W output
- Power Factor:>0.93
- Surge protection: 6KV-20KV
- THD:<10%
- Working life:>50000Hrs
- Efficiency:>90%
- Beam angle:70*140°
- Installation pole dia: 60-65mm
- Installation pole height:6-15meter
- CE RoHS approval
- 3/5Years warranty
Installation and Mounting
- Installation hole: φ60mm
- Recommended mounting height: 6m to 16m
GRNLED offers the best price in the market. Better quality but lower price.
Models and Details
| Order model | Wattage | Dimension | Input voltage | Led Lumens | Color temperature | Beam angle | CRI | IP Rating | IK Rating | Working life | Install hole | DATASHEET |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| GR-SL-100WY | 100W±5% | 422*318*132mm | 100-240VAC 50/60Hz | 11000-14500lm | 2700K-3000K Warm white, 4000K-4500K Daylight, 5700-6000K Cool White | 70*140° | >70 | IP65 | IK08 | >50000Hrs | φ60 | Download |
| GR-SL-150WY | 150W±5% | 522*318*132mm | 100-240VAC 50/60Hz | 16500-20000lm | 2700K-3000K Warm white, 4000K-4500K Daylight, 5700-6000K Cool White | 70*140° | >70 | IP65 | IK08 | >50000Hrs | φ60 | Download |
| GR-SL-200WY | 200W±5% | 522*318*132mm | 100-240VAC 50/60Hz | 22000-28000lm | 2700K-3000K Warm white, 4000K-4500K Daylight, 5700-6000K Cool White | 70*140° | >70 | IP65 | IK08 | >50000Hrs | φ60 | Download |
| GR-SL-250WY | 250W±5% | 655*318*132mm | 100-240VAC 50/60Hz | 27000-30000lm | 2700K-3000K Warm white, 4000K-4500K Daylight, 5700-6000K Cool White | 70*140° | >70 | IP65 | IK08 | >50000Hrs | φ60 | Download |
| GR-SL-300WY | 300W±5% | 655*318*132mm | 100-240VAC 50/60Hz | 30000-32000lm | 2700K-3000K Warm white, 4000K-4500K Daylight, 5700-6000K Cool White | 70*140° | >70 | IP65 | IK08 | >50000Hrs | φ60 | Download |
| GR-SL-400WY | 400W±5% | 855*318*132mm | 100-240VAC 50/60Hz | 40000-45000lm | 2700K-3000K Warm white, 4000K-4500K Daylight, 5700-6000K Cool White | 70*140° | >70 | IP65 | IK08 | >50000Hrs | φ60 | Download |
*Order Model: GR-SL-100WY = GR-SL-Y Model for 100 Wattage.
