Low Voltage Bollard Lights 12VDC 24VDC

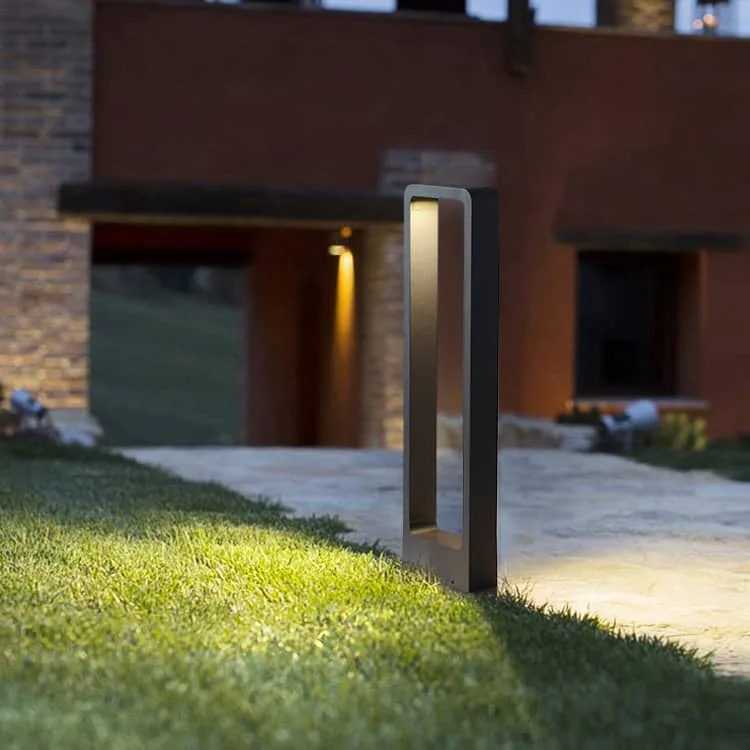

GR-BL-E Series is a decorative landscape bollard light fixture with low voltage DC12V 24V input, it will be safer applied at exterior landscape places than 110V 220V input types.
GRNLED offers the best price in the market.

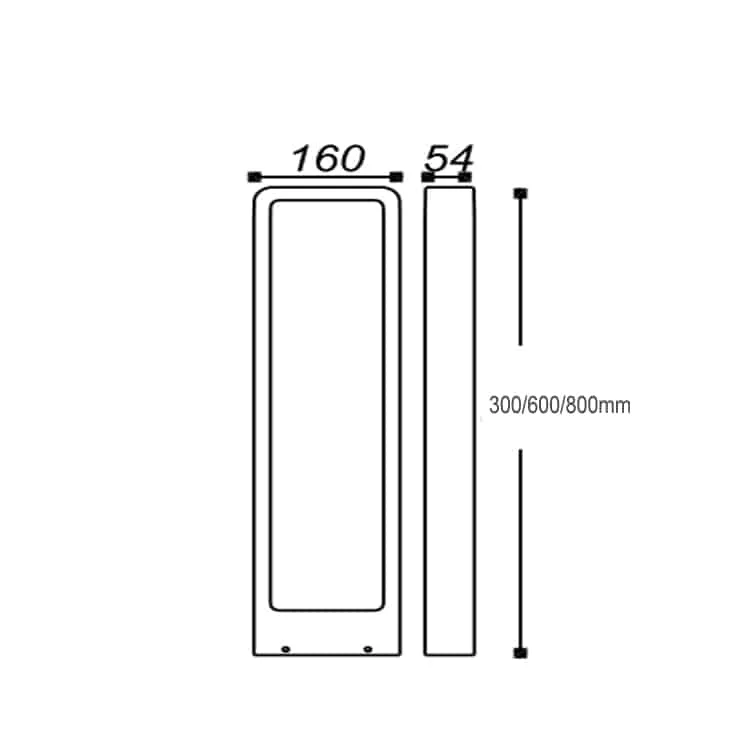

Order Model | Wattages | Dimension | Lumens | Color temperature | IP Rated | Body color | CRI | Input voltage | Datasheet |
GR-BL-300B | 7W | Ø160*H300mm | 600-700lm | 3000K-6500K | IP65 | Matt black | >80 | 12V or 24V DC | Download |
GR-BL-600B | 7W | Ø160*H600mm | 600-700lm | 3000K-6500K | IP65 | Matt black | >80 | 12V or 24V DC | Download |
Body & Finished
- Housing (Heat sink): Die-cast aluminum body, black finished as standard.
- Light source: SMD LED light module or COB LED Chips, high brightness.
- Led driver: Built-in AC/DC12V 24V operation driver. Overload, overvoltage, short circuit protection.

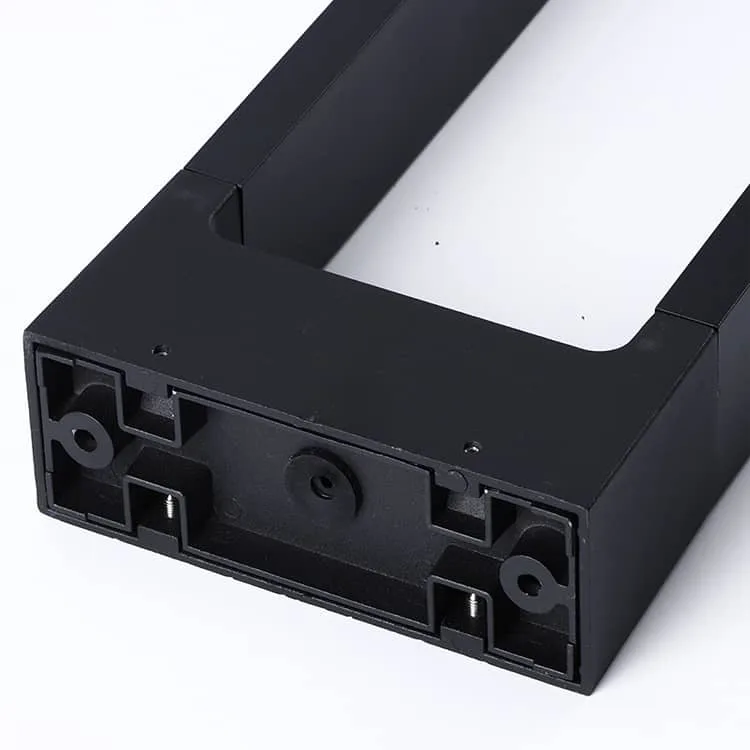

- Mounting parts: Surface mounting on ground with screws.
- Cables & wires: 150mm long cable as standard. # 22AWG-24AWG, 600V, 105℃.
Electrical & Optical
- Control gear: Built-in led driver
- Input voltage: 24VDC or 12VDC
- THD:<25%
- IP Rated: IP65 waterproof
- Efficiency:>80%
- Warranty: 2/3years
- Led chips: Bridgelux COB
- CRI:>90
- Color temperature: 3000K, 4000K, 6500K
- SDCM:<5
- LM80 report
High voltage input such as 110V-120Volt AC, Or 220-240VAC 50/60Hz.
