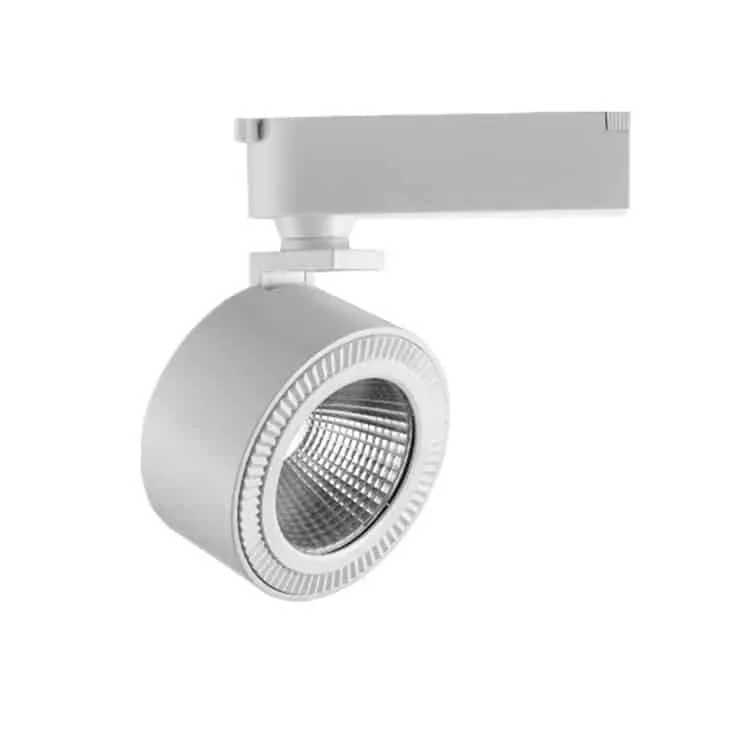

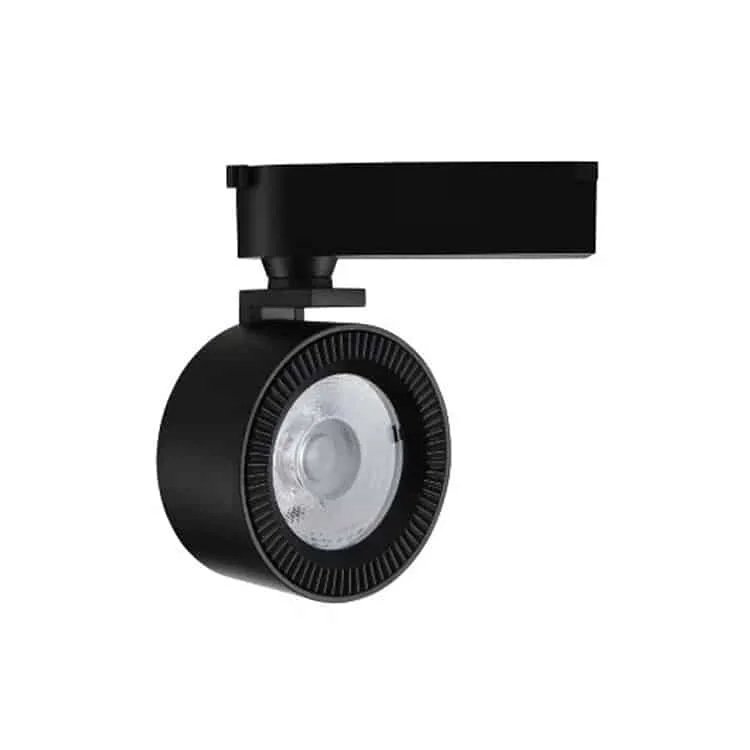

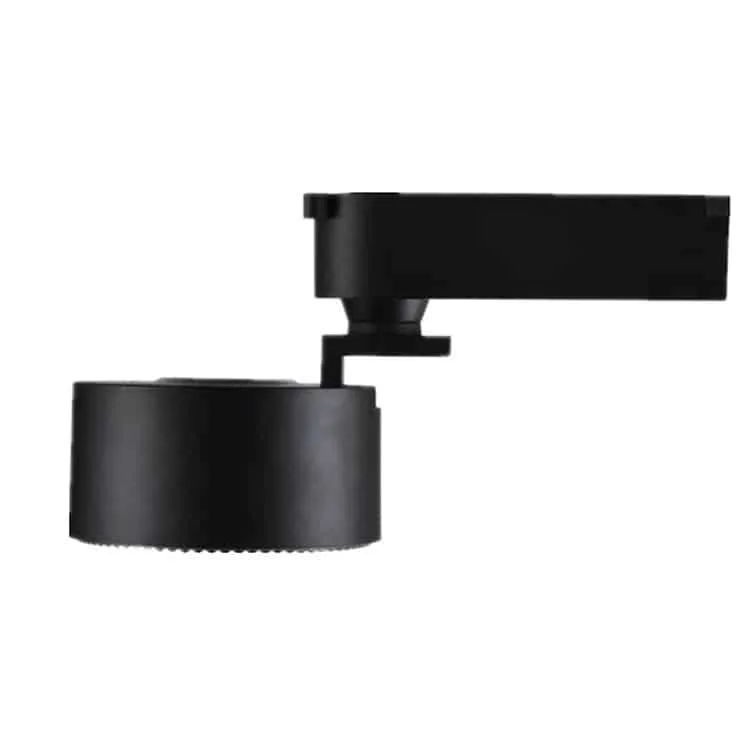

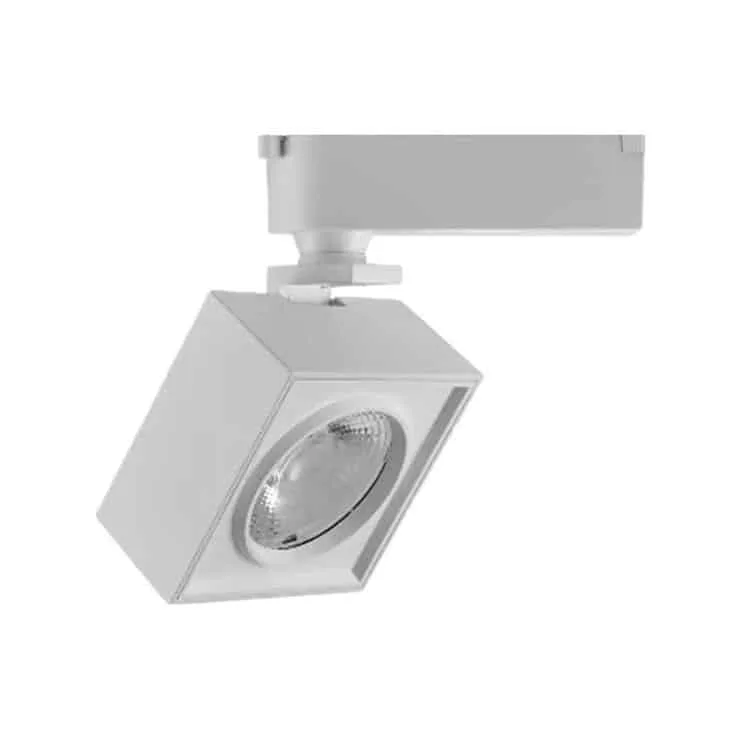

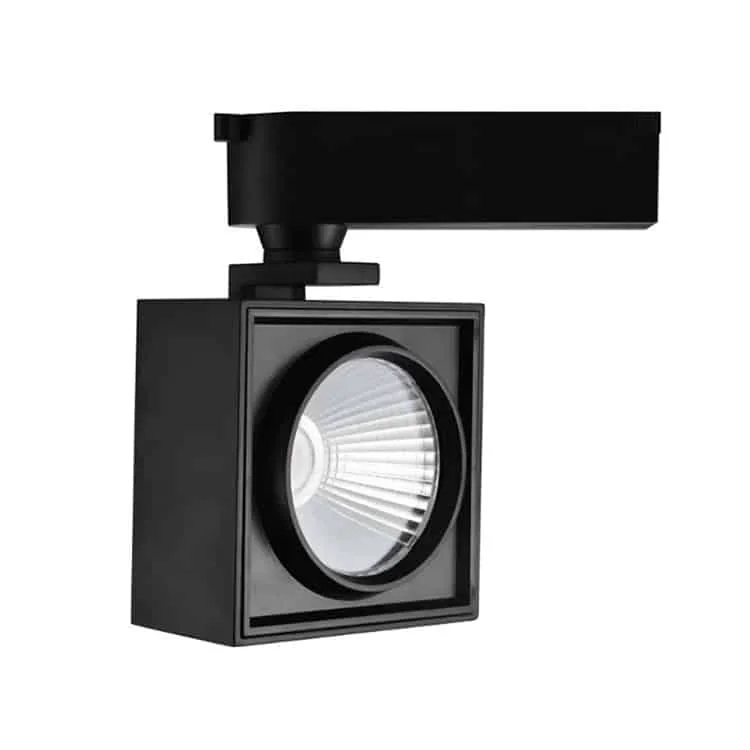

White /Black Modern Track Lighting| Model: GR-TL-C

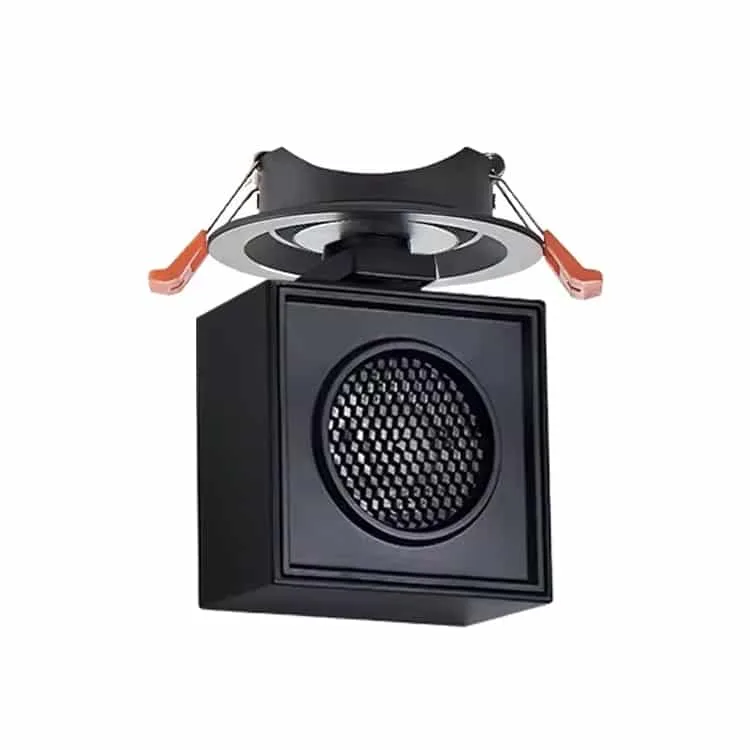

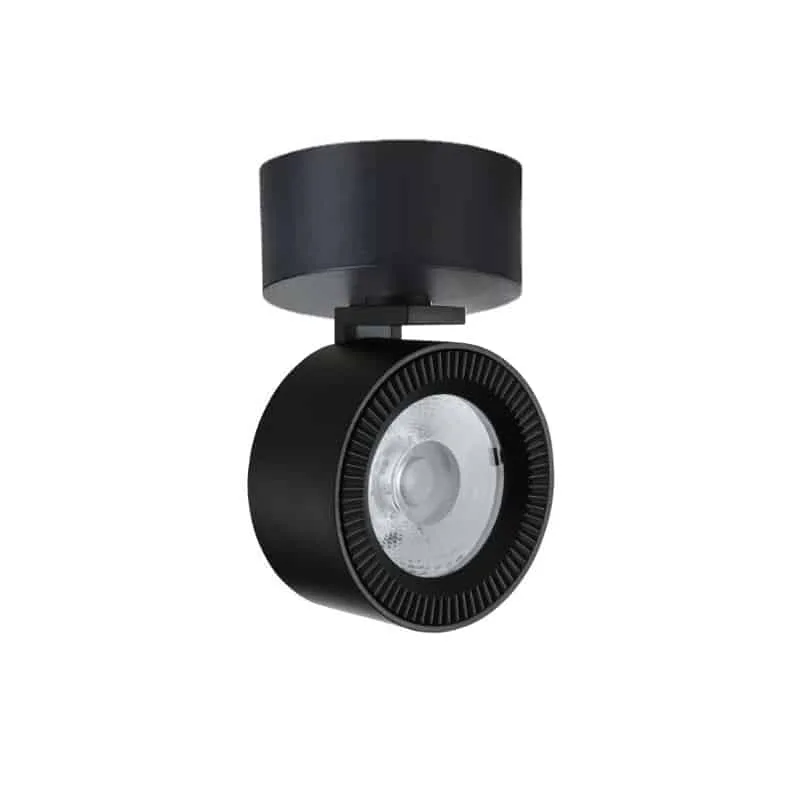

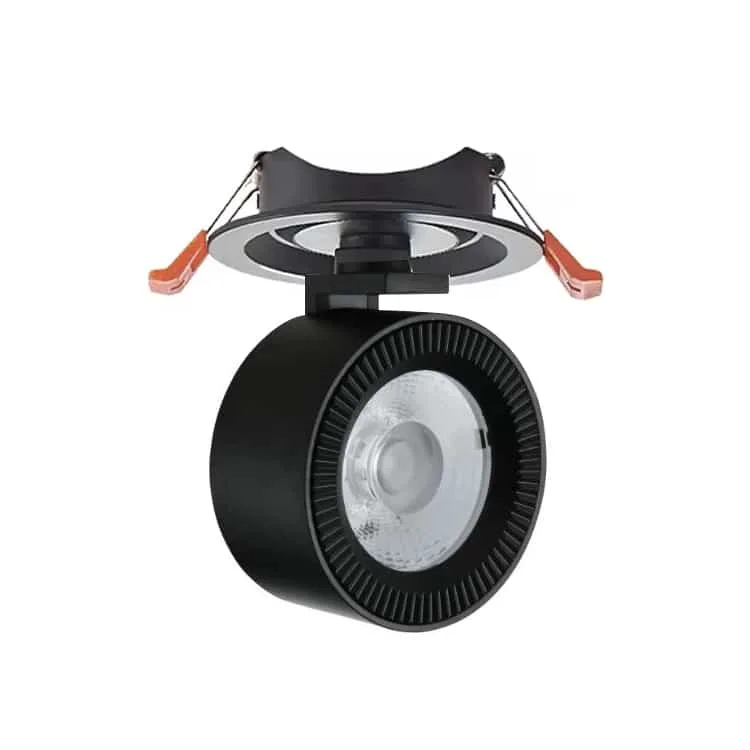

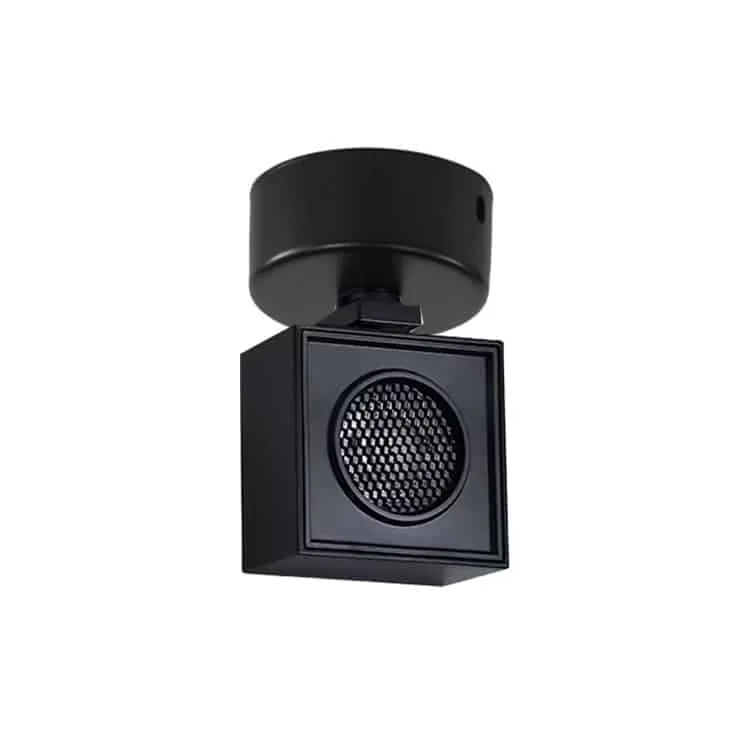

GR-TL-C LED track lighting, features a modern and tiny design available in both round and square shapes with track-mounted, surface-mounted, and recessed-mounted options This minimalist track lighting offers a medium/wide light distribution akin to floodlights. The matte white or black powder-coated finish adds a touch of modern elegance, making it the best choice for spaces such as tile shops, showrooms, supermarkets, museums, and more.

  • Order model: GR-TL-C

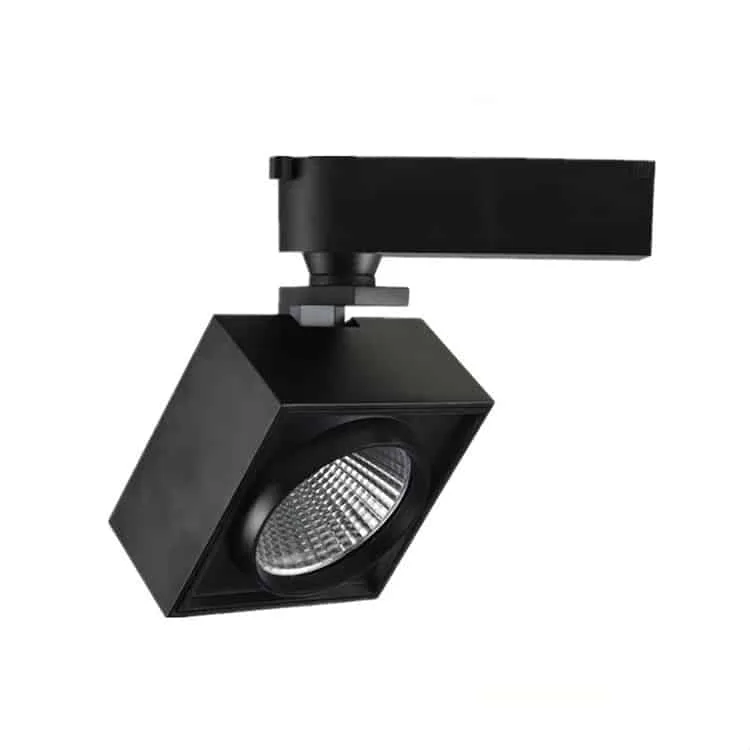

  • Shape: Round & Square optional
  • Wattages: 10W 20W 30W
  • Track head: 2 wires ( single circuit) as standard, the three-phase track is optional
  • Control way: ON/OFF
  • Free flicker: Yes
  • Manufacturer warranty: 3/5 years
  • Origin: Made in China
  • Certificates: CE RoHS
  • MOQ: 100pcs/ Model

GRNLED offers the best price in the market.


Order ModelShapeWattageDimensionLumensCRIColor temperatureMountingPower factorInput voltageDatasheets
GR-TL-10WC-RRound10W ±5%Φ80*L50mm1000lm>923000/4000/6000KTrack mounted/Surface/Recessed>0.5 or 0.9110/220-240VACDownload
GR-TL-20WC-RRound20W ±5%Φ100*L55mm2000lm>923000/4000/6000KTrack mounted/Surface/Recessed>0.5 or 0.9110/220-240VACDownload
GR-TL-30WC-RRound30W ±5%Φ120*L63mm3000lm>923000/4000/6000KTrack mounted/Surface/Recessed>0.5 or 0.9110/220-240VACDownload
GR-TL-10WC-SSquare10W ±5%LW82*L50mm1000lm>923000/4000/6000KTrack mounted/Surface/Recessed>0.5 or 0.9110/220-240VACDownload
GR-TL-20WC-SSquare20W ±5%LW100*L55mm2000lm>923000/4000/6000KTrack mounted/Surface/Recessed>0.5 or 0.9110/220-240VACDownload
GR-TL-30WC-SSquare30W ±5%LW120*L63mm3000lm>923000/4000/6000KTrack mounted/Surface/Recessed>0.5 or 0.9110/220-240VACDownload

Materials & Finished

  • Body: Pure aluminum, matt black/ white powder-coated
  • Reflector: PC, silver finished, low glare
  • Lens: Optical lens, good secondary light distribution effect
  • Track adapter: 2wires track head, Plastic

Control Gear/ Led driver

  • Brand: LiFud/ Eagleries/ Philips driver brand optional
  • Dimmable: No
  • Input voltage: 220-240VAC 50/60Hz
  • PF:>0.9
  • Efficiency:>88%
  • THD: <15%
  • Free flicker: Yes
  • IP grade: IP20
  • Certificates: CE ENEC TUV ROHS CB
  • Warranty: 3/5 years

Optical

  • Led chips brand: Bridgelux / Osram COB chips
  • Lumens: 120-140lm/W
  • CRI:>92
  • Color temp: 3000K warm white, 4000-4500k cold white, 5700-6200k cold white
  • LM80
  • Lifetime: >100000hrs
  • Zigbee Intelligent control by Phone APP, Google Home, AMAZON Alexa.
  • PWM /0-10V/ DALI Dimmable track light

There is the installation guide for 1 circuit / 2 wires led track lights, you can view the 3 phase track light if you request the guide for 3 circuit types.
