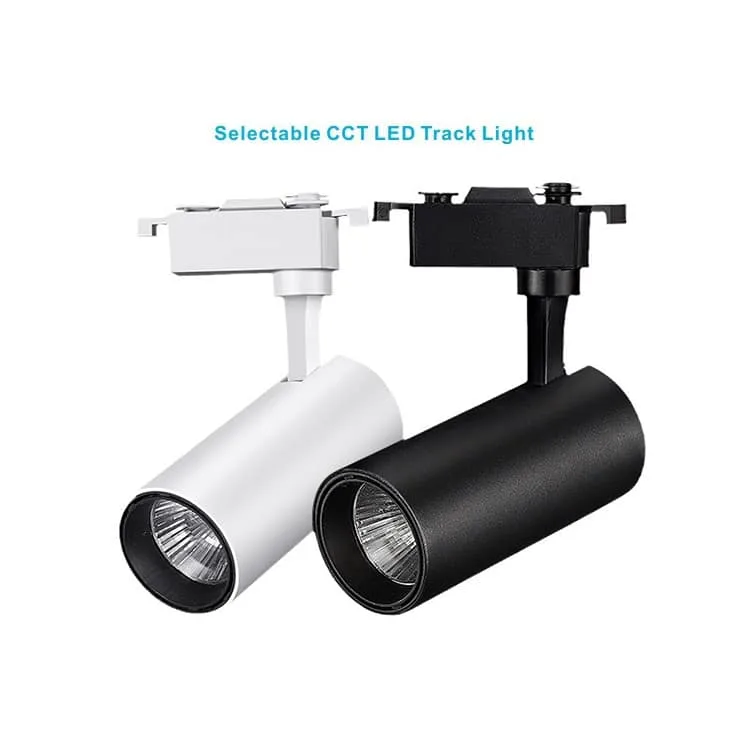

DIP Switch 3CCT Tunable color changing Track Light| Model: GR-TL-F

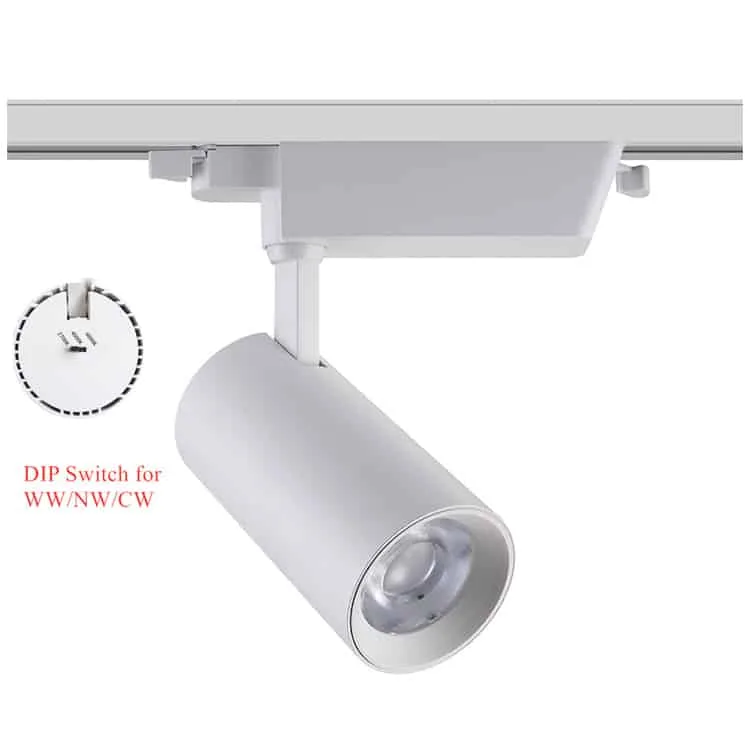

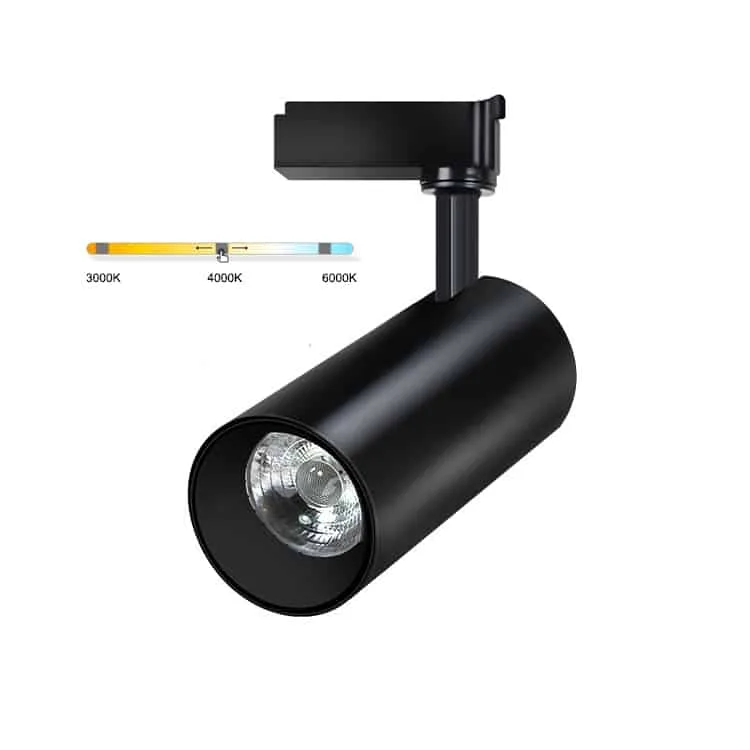

This is the latest design with an integrated driver and DIP switch for 3CCT Tunable This latest tunable LED track lighting with an integrated driver and a user-friendly DIP switch empowers users to effortlessly select color temperatures ranging from a warm 3000K to a neutral 4000K or a pure 6000K, catering to diverse moods and activities. And the track head is available in two options: 2 wire (1 phase) or 4 wire (3 phases), providing flexibility to suit different electrical systems.
| Order model | Wattage | Dimension | Lumens | Color temperature | PF | CRI(Ra) | Beam angle | Track heads | Input voltage | DATASHEET |
| GR-TL-20WF | 20W±5% | Φ91*110mm | 1800-2000lm | 3000K, 4000K,6500K Selectable | >0.9 | >90 | 15/24/36/60° | 2wires or 3 phases | 110/120V-240VAC | Download |
| GR-TL-25WF | 25W±5% | Φ91*110mm | 2200-2500mm | 3000K, 4000K,6500K Selectable | >0.9 | >90 | 15/24/36/60° | 2wires or 3 phases | 110/120V-240VAC | Download |
| GR-TL-30WF | 30W±5% | Φ91*110mm | 2750-3000lm | 3000K, 4000K,6500K Selectable | >0.9 | >90 | 15/24/36/60° | 2wires or 3 phases | 110/120V-240VAC | Download |
| GR-TL-35WF | 35W±5% | Φ91*110mm | 3300-3500lm | 3000K, 4000K,6500K Selectable | >0.9 | >90 | 15/24/36/60° | 2wires or 3 phases | 110/120V-240VAC | Download |
| GR-TL-40WF | 40W±5% | Φ105*130mm | 3600-4000lm | 3000K, 4000K,6500K Selectable | >0.9 | >90 | 15/24/36/60° | 2wires or 3 phases | 110/120V-240VAC | Download |
Body & Finished
- Heat sink: die-cast aluminum body, black/white powder-coated.
- Reflector: deep design, silver
- Lens: PMMA lens, 15/24/36°.
- Track head: plastic
Control Gear/Led driver
- Control Gear brand: ALLOOKING/LiFud/Eagleries/PHILIPS
- Input voltage: 220-240VAC 50/60Hz
- THD:<10%
- Power Factor: >0.9
- Efficiency:>88%
- Certificates: CE TUV CB, ENEC
- Warranty: 3/ 5 years
Optical
- Led chips brand: Bridgelux / Osram COB chips
- Lumens: 120-140lm/W
- CRI:>90
- Color temp: 3000K-6000k Selectable
- LM80
- Lifetime: >100000hrs
- Phase triac dimmable/ 0-10v/DALI dimmable
Before installing the track lights, you must install the correct rails on the ceiling or wall, or you can hang the track. The 2-wire track head adapts to the 2-wire track strip, 3-wire 4-wire track strip corresponds to lamps with a 3-wire track head and 4-wire track head respectively.
- Supermarkets
- Shopping mall
- Offices
- hotels, restaurants
- bars
