Surface/Pendant LED Linear Track Lighting 9W-30W| Model: GR-TL-L

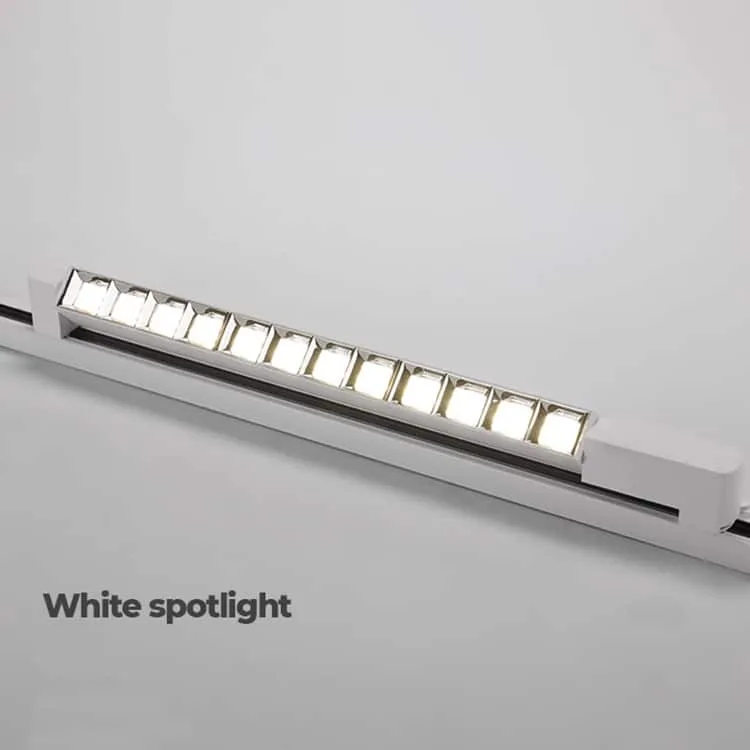

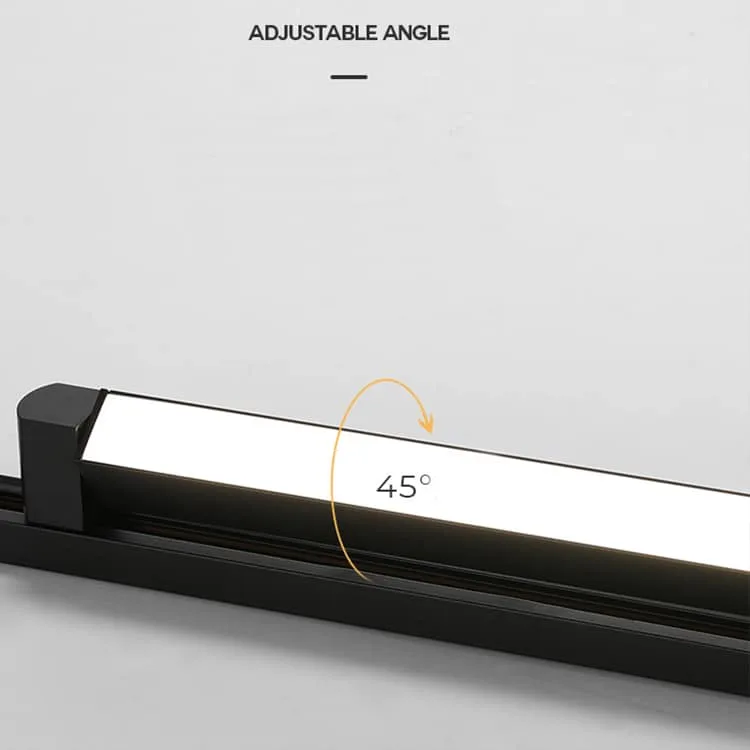

This linear led track lighting includes two types of light fitting- grille spotlight, and profile floodlight. spotlight to be narrow beam angle for directional lighting, and the profile light to be wide distribution like 120° for basic lighting. They are all to be with a rotation (45°)structure and a very modern DIY track lighting system.

  • Order Model: GR-TL-L Series
  • Wattage: 9W 18W 27W 32W
  • Control way: ON/OFF
  • Installation: Track-mounted
  • Track head type: 2 wires
  • Adjustable beam: Yes
  • Free flicker: Yes
  • Working temp: -20/+50℃
  • Manufacturer warranty: 2/3years
  • Origin: Made in China
  • MOQ: 50pcs/model

GRNLED offers the best price in the market.

Order modelTypeWattageDimensionColor temperatureCRI(Ra)Track headInput voltageDATASHEET
GR-TL-9WL-01Spotlight 5*2W9W±5%214*33mm2700K-6500K>902 wires100-240VAC 50/60HzDownload
GR-TL-18WL-01Spotlight 10*2W18W±5%346*33mm2700K-6500K>902 wires100-240VAC 50/60HzDownload
GR-TL-25WL-01Spotlight 15*2W25W±5%478*33mm2700K-6500K>902 wires100-240VAC 50/60HzDownload
GR-TL-32WL-01Spotlight 20W*232W±5%611*33m2700K-6500K>902 wires100-240VAC 50/60HzDownload

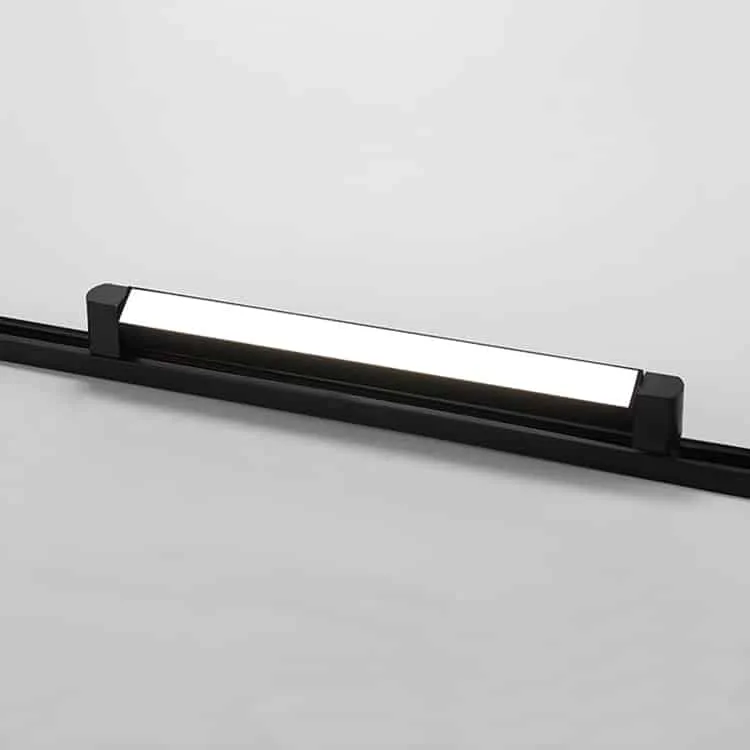

GR-TL-9WL-02Profile light9W±5%214*33mm2700K-6500K>902 wires100-240VAC 50/60HzDownload
GR-TL-18WL-02Profile light18W±5%346*33mm2700K-6500K>902 wires100-240VAC 50/60HzDownload
GR-TL-25WL-02Profile light25W±5%478*33mm2700K-6500K>902 wires100-240VAC 50/60HzDownload
GR-TL-32WL-02Profile light32W±5%611*33mm2700K-6500K>902 wires100-240VAC 50/60HzDownload

Body & Finished

  • Heat sink: die-cast aluminum body, black/white powder-coated.
  • Reflector for track spotlight: deep design, silver
  • Diffuser plate: PC Cover, frosted
  • Track head: Plastic, 2wires standard

Control Gear/Led driver

  • Control Gear brand: GuanX isolated driver as standard
  • Dimmable: No
  • Input voltage: 100-240VAC 50/60Hz
  • IP Rate: IP20
  • Power Factor: >0.5
  • Efficiency:>87%
  • Warranty: 3years

Optical

  • Led chips brand: Bridgelux smd chips
  • Lumens: 120-140lm/W
  • CRI:>90
  • Color temp: 3000K warm white, 4000-4500k cold white, 5700-6200k cold white
  • LM80
  • Lifetime: >50000hrs

The installation step is just the same as the normal LED track lighting as follows:
