Underground Light COB LED | Model: GR-GL-H
GR-GL-H series outdoor underground light is a floor lamp with COB LED Chips, stainless steel trim, and toughed glass cover. It can be IP67 waterproof level for exterior environments as landscape lighting.
Materials & Finished

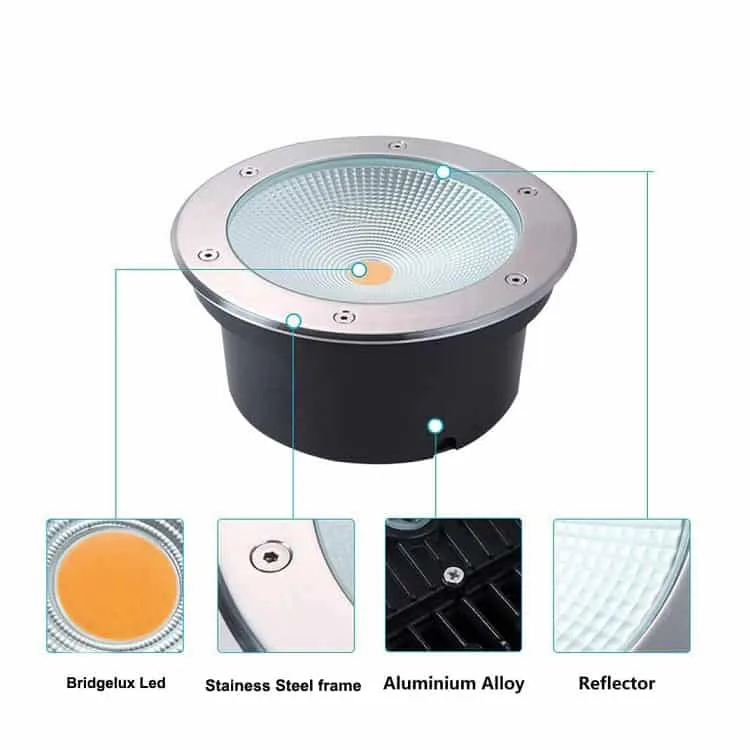

- Frame: 304 stainless steel trim. Round shape.

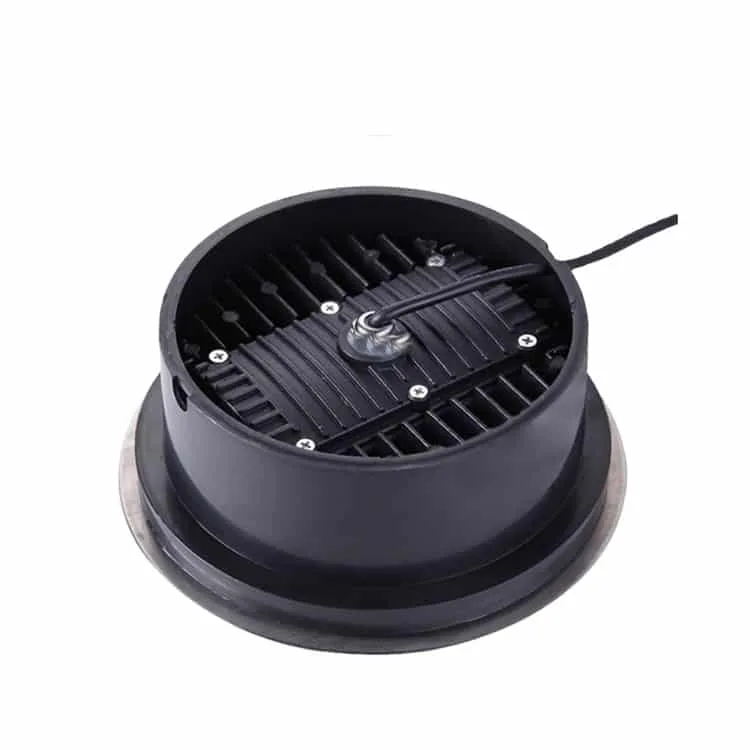

- Housing: Aluminum body and heat sink, good heat performance.
- Cover: 3mm thickness toughed glass cover.
- Led driver: Isolated constant current driver as standard, low voltage driver as an option.
- Light source: high power Bridgelux led chips, 3000-6500k or RGB color available
- Screws: Stainless steel screws included.
- Embedded parts: ABS materials, High strength, and corrosion resistance
- Cable: Electrical cable with 15-50cm length, it is ok to be with plug.
Additional Options
- DC12V/DC24V/DC36V/DC48V/60V
- DMX512 Control
- Single color or RGB
Electrical & Optical
- Input voltage:110-120V/220V-240VAC 50/60Hz
- Power Factor:>0.9
- Color rendering index:>80
- SDCM:<5
- Efficiency:>88%
- IK level: IK07
- THD:<20%
- IP Rating: IP67 Waterproof
- Beam angle: 120°
- Working life:>50000Hrs
- Color temperature: 3000K/4000K/6500K/Red/Green/Blue/RGB
- Working temperature:-25℃/+60℃
- Compliance: CE RoHS Certified
- China Manufacturer Warranty:2/3/5Years.
GRNLED offers the best price in the market.
Models and Details
| Order Model | Wattages | Hole cut | Lumens | IP Rate | IK Rating | Color temperature | Input voltage | Lifetime | Datasheet |
| GR-GL-10WH | 10W | Φ140mm | 900-1000lm | IP67 | IK07 | 3000K/6500K/R/G/B/RGB | 110-120V/220-240VAC or DC12V 24V | >50000Hrs | Download |
| GR-GL-20WH | 20W | Φ170mm | 1800-2000lm | IP67 | IK07 | 3000K/6500K/R/G/B/RGB | 110-120V/220-240VAC or DC12V 24V | >50000Hrs | Download |
| GR-GL-30WH | 30W | Φ210mm | 2700-3000lm | IP67 | IK07 | 3000K/6500K/R/G/B/RGB | 110-120V/220-240VAC or DC12V 24V | >50000Hrs | Download |
| GR-GL-50WH | 50W | Φ240mm | 4500-5000lm | IP67 | IK07 | 3000K/6500K/R/G/B/RGB | 110-120V/220-240VAC or DC12V 24V | >50000Hrs | Download |
