Anti-glare Ceiling Spot Lights 12W-20W | Model: GR-DL-G-19

recessed low glare spot lights
anti glare spot lights

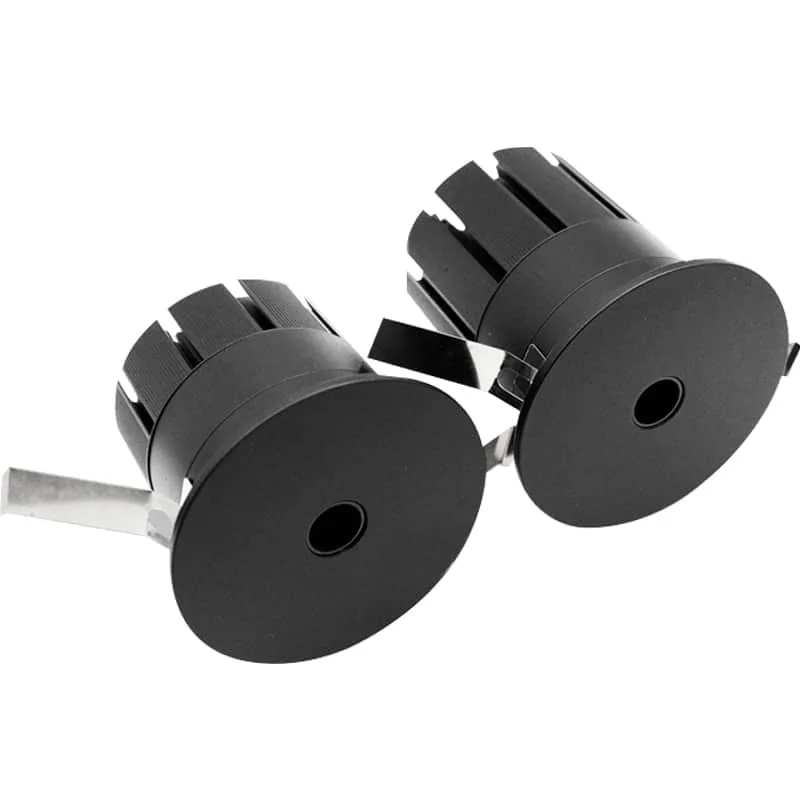

narrow beam downlights
small hole spotlights
  • recessed low glare spot lights
  • anti glare spot lights
  • narrow beam downlights
  • small hole spotlights

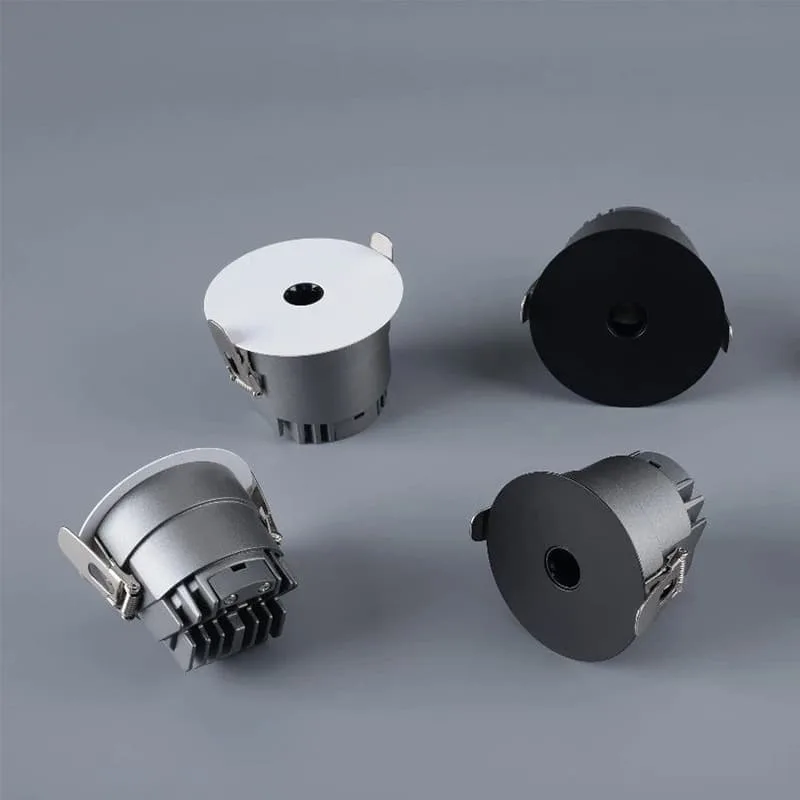

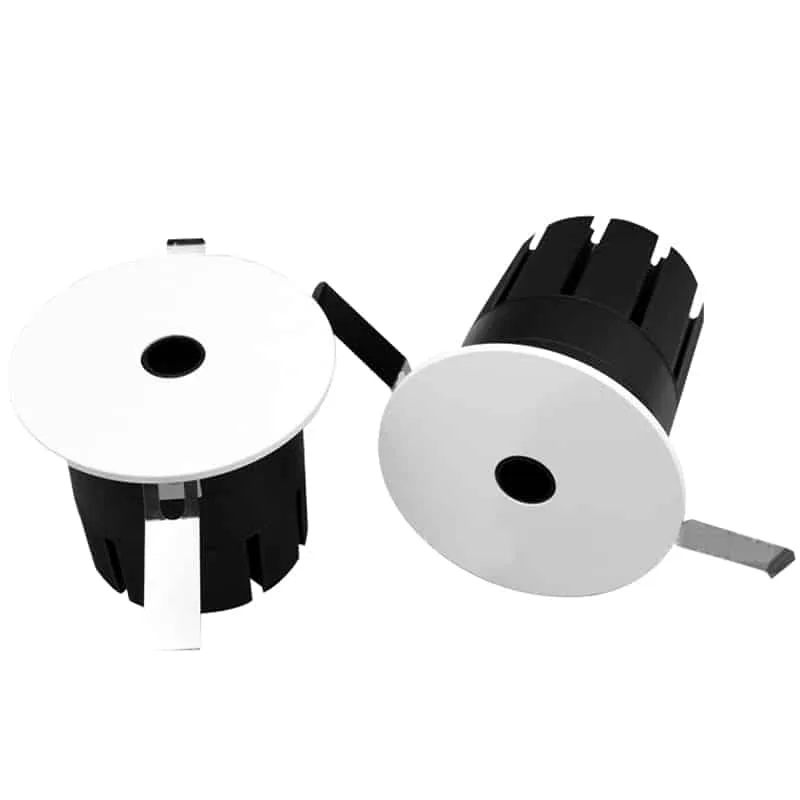

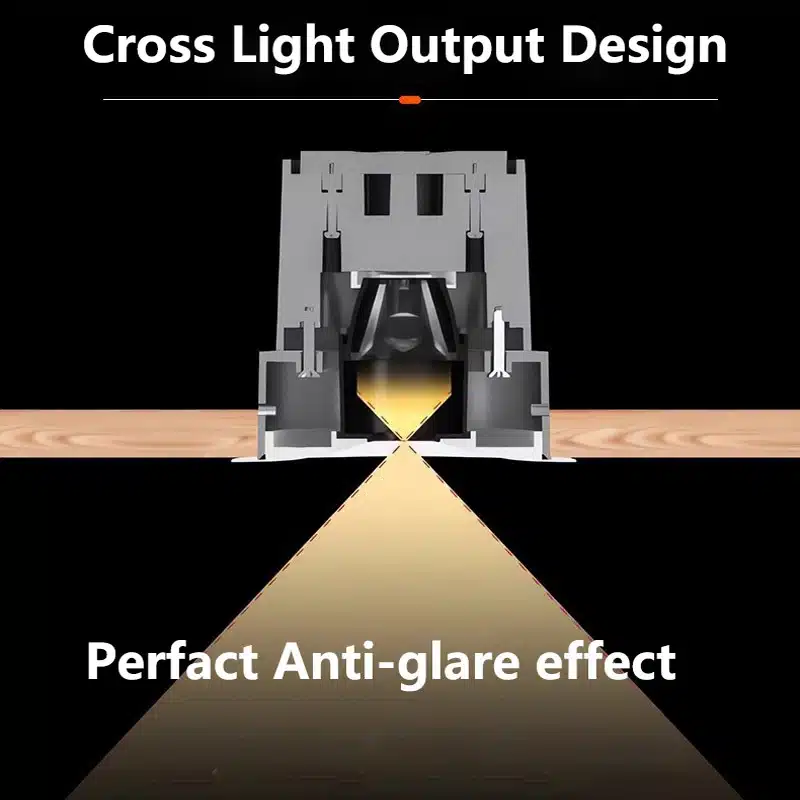

    • These recessed ceiling spotlights adopt a cross-lighting and small-hole anti-glare design. They offer super anti-glare performance with a deep reflector and an 8mm width Luminous surface. It can be dimmable ceiling spotlights, 3CCT downlights, or Zigbee smart spotlights. It is available for commercial lighting, hotel and shopping mall, Villa lighting, and home lighting

    • Mounting: Recessed
    • Finished: Matt white/ matt black
    • Cut out: 75mm
    • Shape: Round
    • Light source: COB
    • Control way: ON/OFF, dimmable/ CCT selectable options
    • UGR:<10
    • Working temp: -30/+60℃
    • Manufacturer warranty: 3/5 years
    • Certificates: CE RoHS LVD EMC
    • Origin: Made in China
    • MOQ: 50PCS/ model

    QUOTE
    Order ModelWattageDimensionCut outLumensColor temperatureBeam angleGlare ValueCRIInput voltageDatasheet
    GR-DL-12WG-1912W ±5%Ø90*H75mmø 75mm1000-1300lm2700-6500K or 3CCT24/36°<10>90110/220-240VAC 50/60HzDownload
    GR-DL-14WG-1914W±5%Ø90*H75mmø 75mm1400-1500lm2700-6500K or 3CCT24/36°<10>90110/220-240VAC 50/60HzDownload
    GR-DL-18WG-1918W ±5%Ø90*H105mmø 75mm1800-1900lm2700-6500K or 3CCT24/36°<10>90110/220-240VAC 50/60HzDownload
    GR-DL-20WG-1920W ±5%Ø90*H105mmø 75mm2000-2200lm2700-6500K or 3CCT24/36°<10>90110/220-240VAC 50/60HzDownload

    Materials & Finished

    • Trim frame: aluminum body, matt white/black.
    • Lens: PMMA materials, black finish
    • Springs/Clips: Steel, high strength to fix onto the ceiling.
    • Heat sink: Aluminum, black color finished

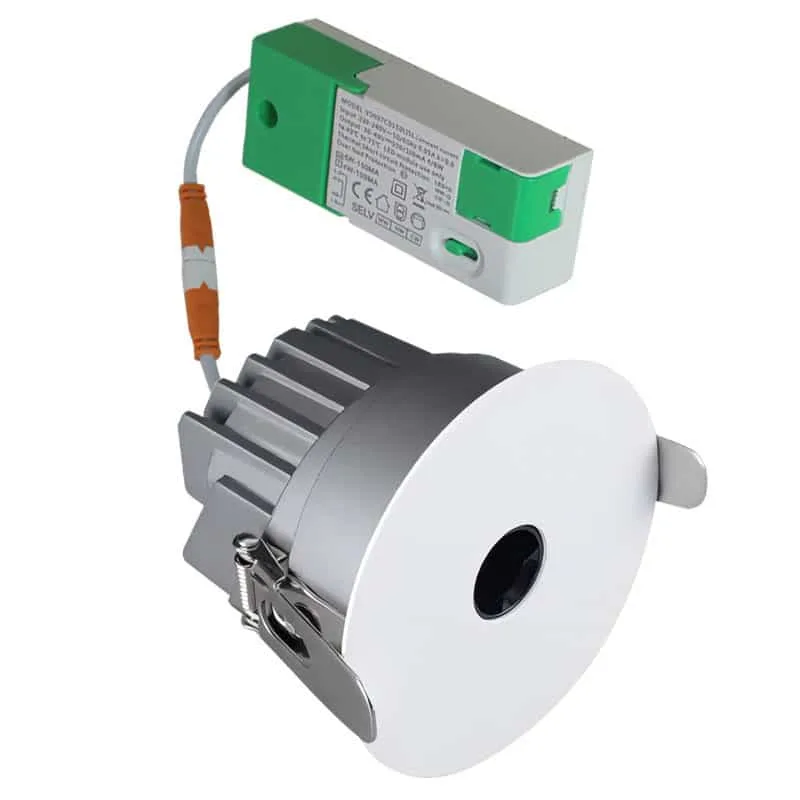

    Control Gear / Led driver

    • Driver brand: Eagleries/LiFud/Guanx/Osram/Philips are optional.
    • Input voltage: 110/220-240VAC 50/60Hz
    • Output Voltage: 36VDC
    • Power factor:>0.5 or 0.9
    • Free flicker: Yes
    • THD:<15%
    • Efficiency:>87%
    • IP Rating: IP44
    • Certificates: BIS CE RoHS ENEC CB
    • Warranty: 3/5Years

    Optical

    • Light source brand: Bridgelux as standard, Osram/Citizen available
    • Color rendering index:>90 (97max)
    • Lumens:100lm-120lm/W output.
    • SDCM:<5 or <3
    • Beam angle: 24/36°.
    • Lifetime:>50000Hrs
    • Low glare value: UGR<10
    • Color temperature:2700-2900K; 3000-3200K; 4000-4500K; 5700-6000K; 6000-6500K
    • Lumens maintenance: 99.9%@1000hrs/ 99%@3000hrs /98%@10000hrs. (LM80).
    • Emergency battery packs. ( emergency kits for 1-3Hours for 2-5Watt)
    • Zigbee smarting downlight
    • Triac phase dimmable/ 0-10V dimmable/ DALI dimmable

    Quick tool-free installation design, the downlighter has a strong fixing bracket, which can be quickly installed on a 1-40mm thick ceiling. Check the installation drawing here, please.

    • Commercial lighting: Hotels, offices, shopping malls, schools, hospitals, supermarkets.
    • Residential lighting: Living room, bedroom, kitchen room, etc..
