LED Batten Strip Lights IP65 1500/1200/600mm | GR-TP-E

GR-TP-E Series LED batten strip lights are IP65 rated with a durable plastic body and built-in aluminum heat sink. The SMD LED batten offers compact size, excellent heat dissipation, and a sleek, modern appearance. Available in 2ft, 4ft, and 5ft lengths, these batten strip lights support both surface-mounted and suspended installations. Widely used in garages, bus stations, railway stations, warehouses, tunnels, factories, and other industrial or commercial spaces.

  • Input voltage:100-240VAC 50/60Hz
  • Power : 18W 36W 44W
  • Size: 5ft 5ft 2ft
  • IP rating: IP65 waterproof
  • Installation: Surface mounted/ Suspended installation
  • Sample: available
  • Delivery time: 3-5days for samples, 7-20days for order
  • Payment: T/T, PayPal
  • Certificate: ROHS CE
  • Warranty: 2/3Years

GRNLED offers the best price in the market.

Order ModelWattageDimensionLumensColor temperatureBeam angleIP ratingInput voltageDatasheet
GR-TP-2F1E18WL620*W58*H53mm900-1000lm3000K,400K,6500K120°IP65100-240VAC 50/60HzDownload
GR-TP-4F1E36WL1230*W58*H53mm1700-1900lm3000K,400K,6500K120°IP65100-240VAC 50/60HzDownload
GR-TP-5F1E44WL1530*W58*H53mm2100-2300lm3000K,400K,6500K120°IP65100-240VAC 50/60HzDownload

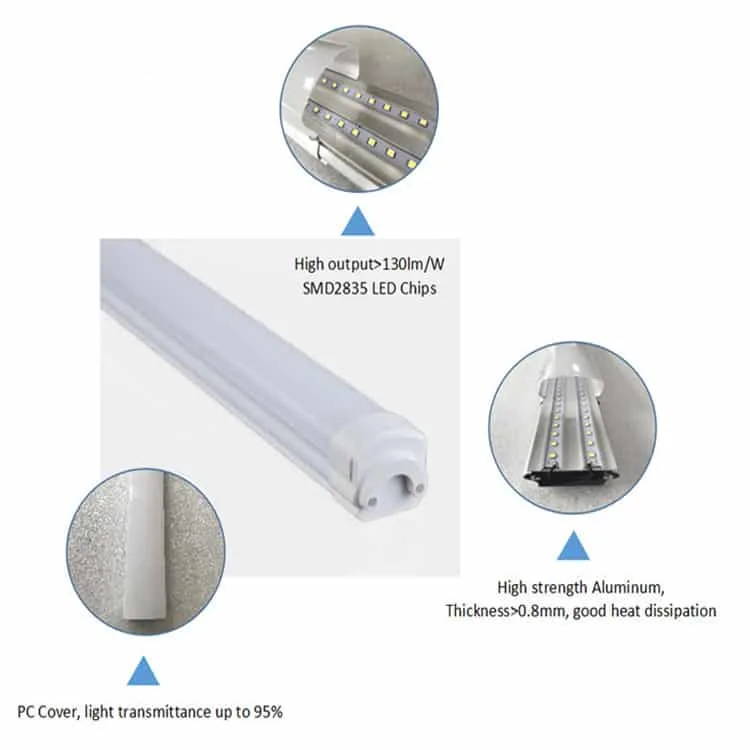

Materials & Finished

  • Body: Plastic housing, white finished
  • Heat sink: Aluminum heat sink, top quality heat performance.
  • LED Chips: Sumsang/Epistar SMD2835 chips, 100lm/W output, CRI80. LM80.
  • Driver: Non-isolated constant current driver, high power factor, and efficiency.
  • Accessories: Steel stainless surface parts as standard. available steel ropes for suspension installation.

Electrical & Optical

  • Power Factor:>0.95
  • CRI(Ra):>80
  • SDCM:<5
  • Efficiency:>88%
  • Color temperature: 3000K Warm white; 4500K Natural white, 6000K cool white.
  • Beam angle: 120°
  • Lifetime:>50000Hrs
  • Working temperature:-30℃/+55℃

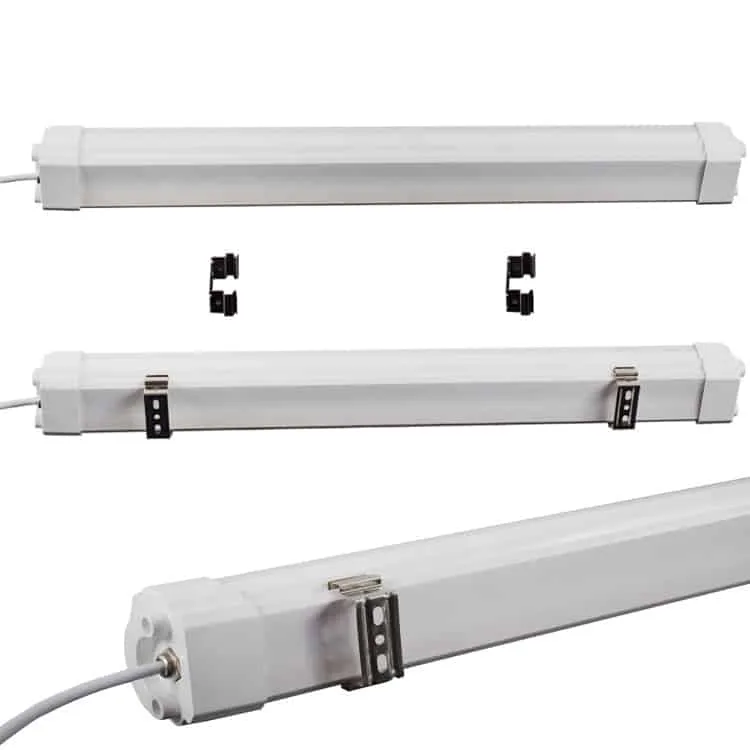

Just use screws to fix the surface parts on the wall or ceiling, then just put the batten strip light into parts
