Recessed Trimless Linear Downlight

Recessed Trimless linear downlight

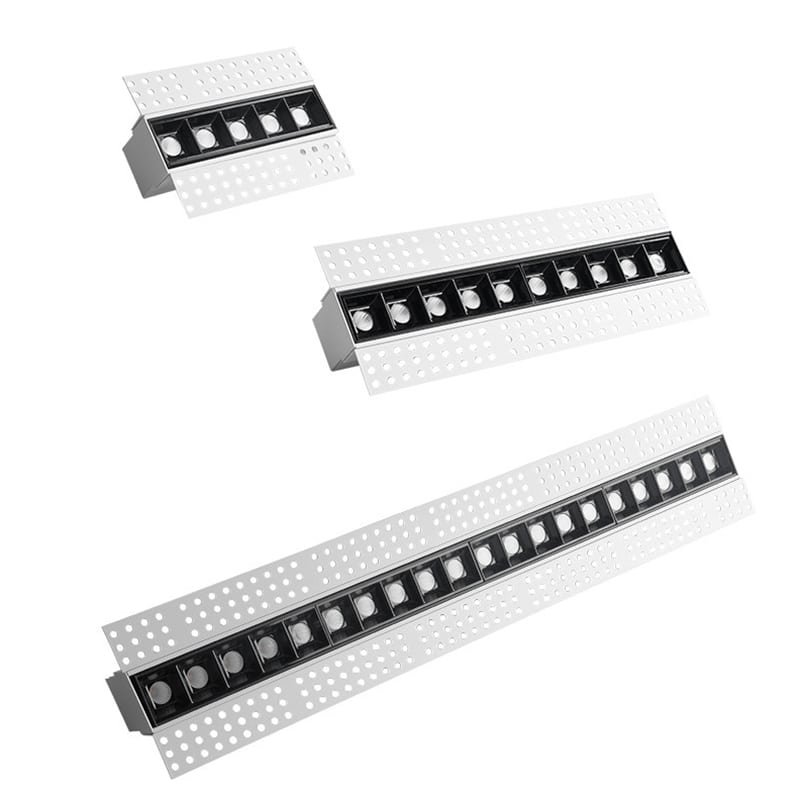

recessed frameless linear spotlights 10W-40W

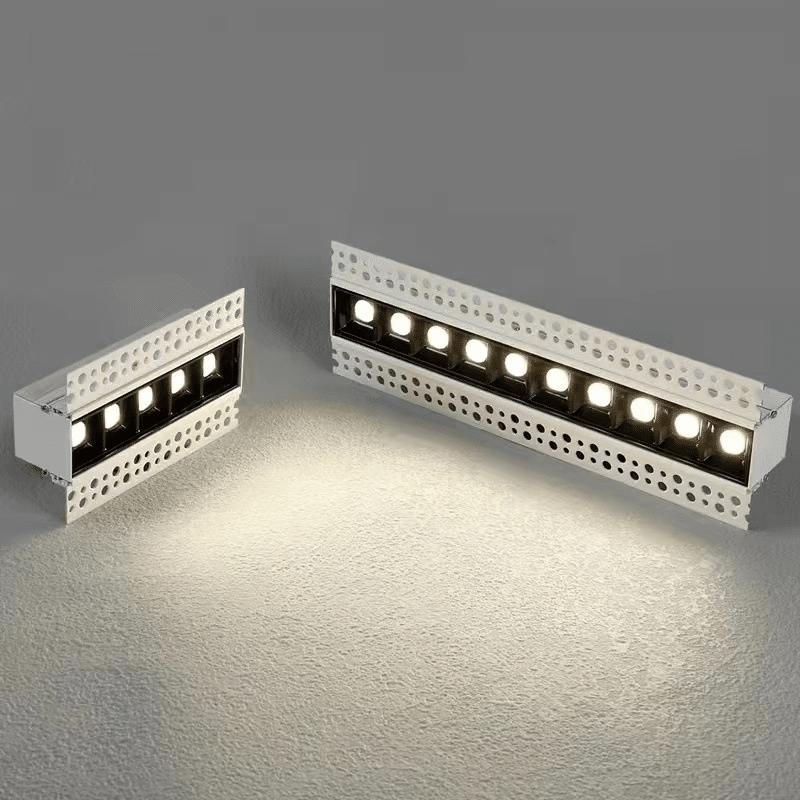

Trimless linear LED downlights
recessed rimless linear downlights
  • Recessed Trimless linear downlight
  • recessed frameless linear spotlights 10W-40W
  • Trimless linear LED downlights
  • recessed rimless linear downlights

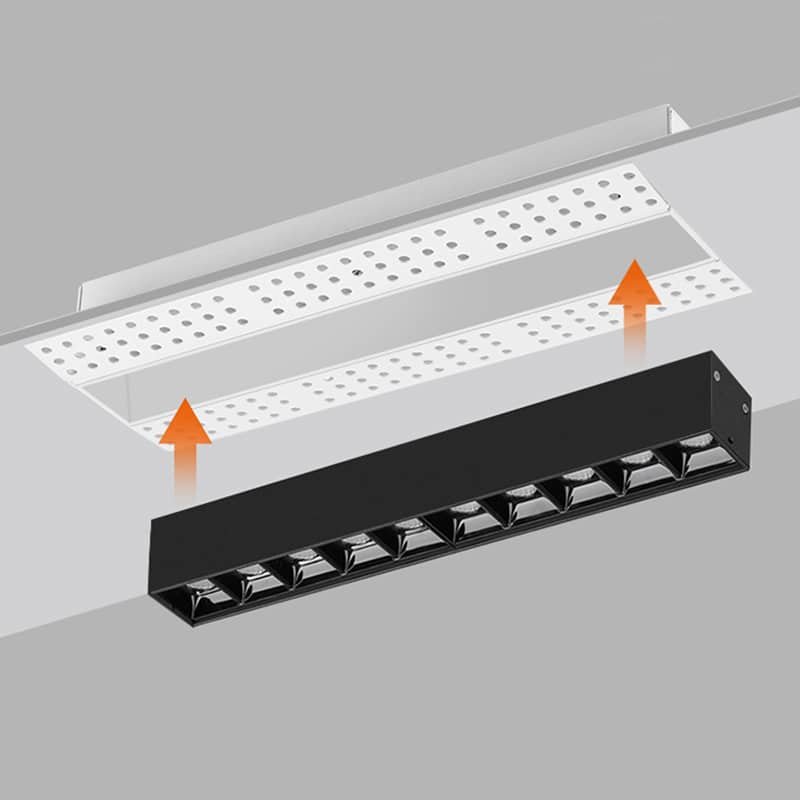

    • This linear lighting is a timeless design; there will be no ceiling trim after the recessed installation. This is the best way to integrate lamps and walls. At the same time, the reflector’s design can achieve different light-emitting angle effects, which can be used not only for basic lighting but also for accent lighting to highlight the characteristics of the illuminated object.

    • Type: Fixed ( No adjustable)
    • UGR:<17
    • IP Rate: IP44 indoor use
    • Beam angle: 15°/24°/38°
    • Materials: Aluminum body+ plastic reflectors.
    • Reflector color: White or black
    • Input voltage: 110/220-240VAC 50/60Hz
    • LED driver: Eagleries/LiFud/Philips/BOKE
    • Power factor: >0.5 OR 0.9
    • THD:<15%
    • LED Chips: Bridgelux or Osram
    • CRI: >92
    • Warranty: 3/5 years
    • Working life:> 50000Hrs
    • Certificates: CE RoHS
    Get a Quote

    Ref NumberWattagesDimensionCut OutLuminous FluxBeam angleDownload
    GR-DL-10WL-39W±5%L140*105*H42mmL145*W50mm800-900lm15°/24°/38°Datasheet
    GR-DL-20WL-318W±5%L273*105*H42mmL275*W50mm1600-1800mm15°/24°/38°Datasheet
    GR-DL-30WL-328W±5%L430*105*H42mmL430*W50mm2600-2800lm15°/24°/38°Datasheet
    GR-DL-40WL-336W±5%L540*105*H42mmL540*W50mm3300-3600lm15°/24°/38°Datasheet

    • Zigbee smart controller for Phone APP, Google Home, AMAZON Alexa.
    • PWM/0-10V/DALI Dimmable
    • Emergency kit (30% power with 1hours 2hours 3hours duration)
