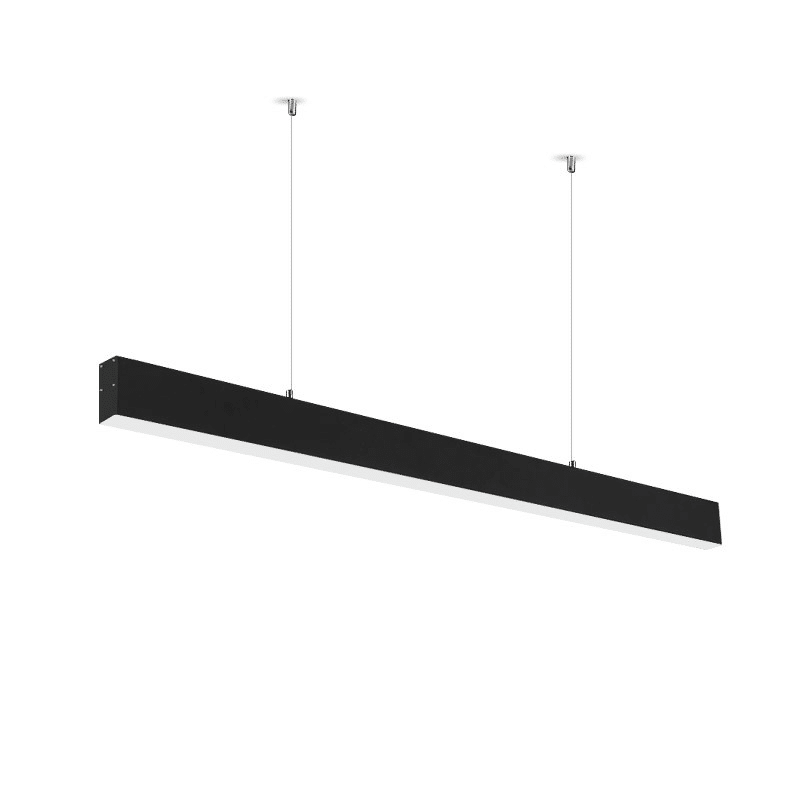

Commercial Linear Pendant Light | Model: GR-LS5075

GR-LS5075 series is hot sale linear pendant light luminaires, its height is only 36mm, but the length can be customized according to the customer’s requirements. The profile housing color can be aluminum, matt black, matt white, or wooden, which will be widely for different applications.

Feature & Benefits

  • Simple design, both hanging installation and surface installation available.
  • Comfortable lighting performance, 3000K, 4500K, 6500K color options.
  • Power factor reaches 0.9, meets various domestic and foreign standards, safe and secure.
  • Lifetime up to 50000Hrs, durable, economical, and energy-saving.
  • The CRI is higher than traditional lamps. It will be better to show the true color of the object can be restored.
  • No flicker (there is no wave when you take photos for these linear led lighting)
  • It is seamless splicing to do linear light system.


Recommend for sports venues, classrooms, gyms, hospitals, subway stations, garages, libraries, museums, supermarkets, hotels, airports.

Electrical & Optical

  • Input voltage:100-265VAC 50/60Hz
  • Power Factor:>0.92
  • LED Chips: SMD2835
  • Color rendering index:>80
  • Lumens:100lm/W
  • SDCM:<5
  • Efficiency:>89%
  • Dimmable: No
  • IP Rating: IP22 Indoor use
  • Beam angle: 120°
  • Color temperature: 3000K Warm white /4000K daylight/6500K cool white.
  • Working temperature:-25℃/+60℃
  • Compliance: CE RoHS Certified
  • Manufacturer Warranty:2/3/5Years.

Installation & Mounting

This linear light fixture is suspension installation as standard, but it is ok to do the surface-mounted installation by surface parts. And it is ok to do freely splicing. Just check here for the installation guide.

GRNLED offers the best price in the market.

Models and Details

Order ModelWattageDimensionLED QTYLumensCRI(Ra)PFColor TemperatureInstallationInput voltageDatasheet
GR-LS5075-60018WL600*W50*H75mm96pcs SMD28351800-2000lm>80>0.923000K4000K6500KPendant/ Surface mounted100-240VAC 50/60HzDownload
GR-LS5075-120036WL1200*W50*H75mm192pcs SMD28353800-4100lm>80>0.923000K4000K6500KPendant/ Surface mounted100-240VAC 50/60HzDownload
GR-LS5075-150048WL1500*W50*H75mm240pcs SMD28354800-5000lm>80>0.923000K4000K6500KPendant/ Surface mounted100-240VAC 50/60HzDownload
GR-LS5075-240072WL2400*W50*H75mm382pcs SMD28357200-7600lm>80>0.923000K4000K6500KPendant/ Surface mounted100-240VAC 50/60HzDownload
