12V/24V/36V/48V DC LED Street Light 30W-200W for Solar,Mine&Tunnel

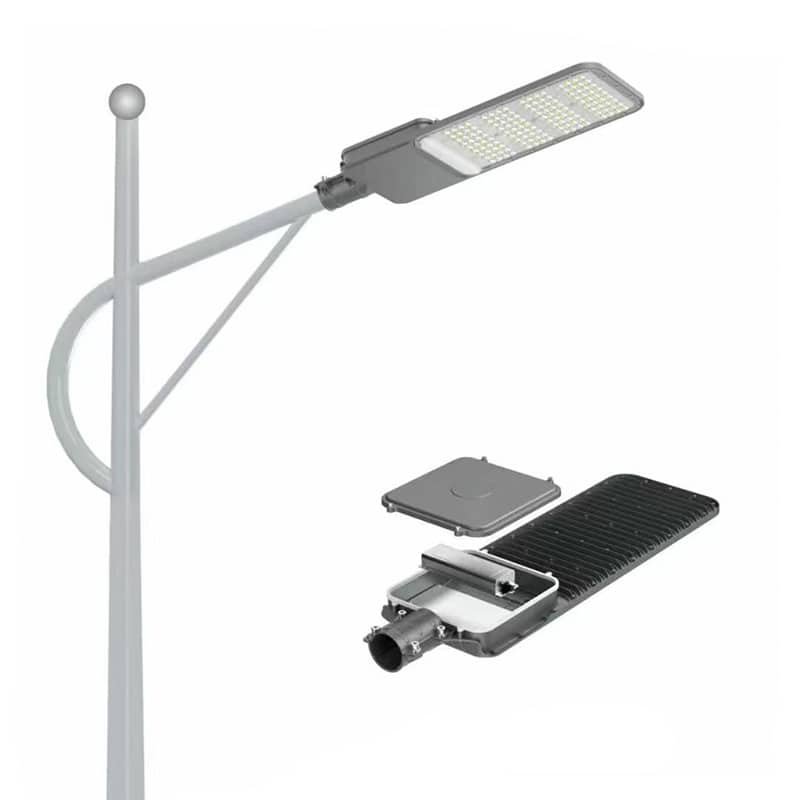

24V-48VDC LED Street light 200W

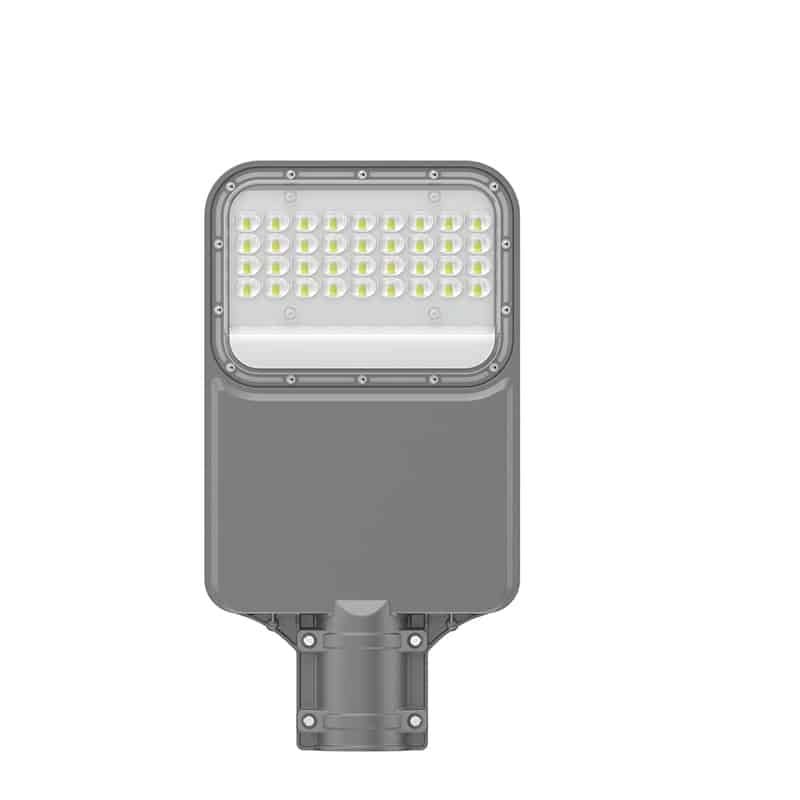

12V DC LED Street lights 30W-50W

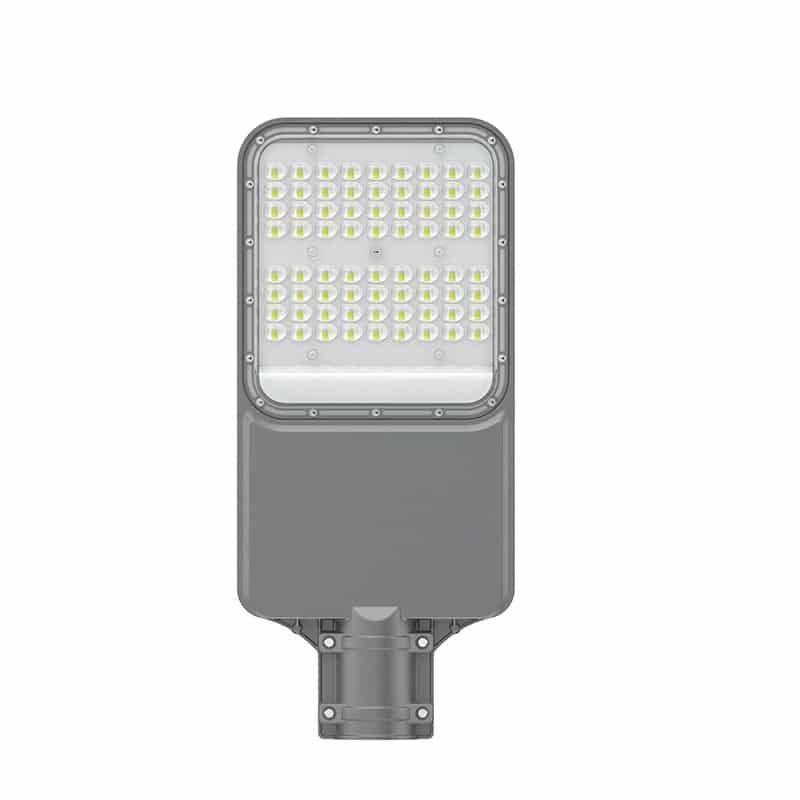

12V-24V LED Street lights 70W-100W

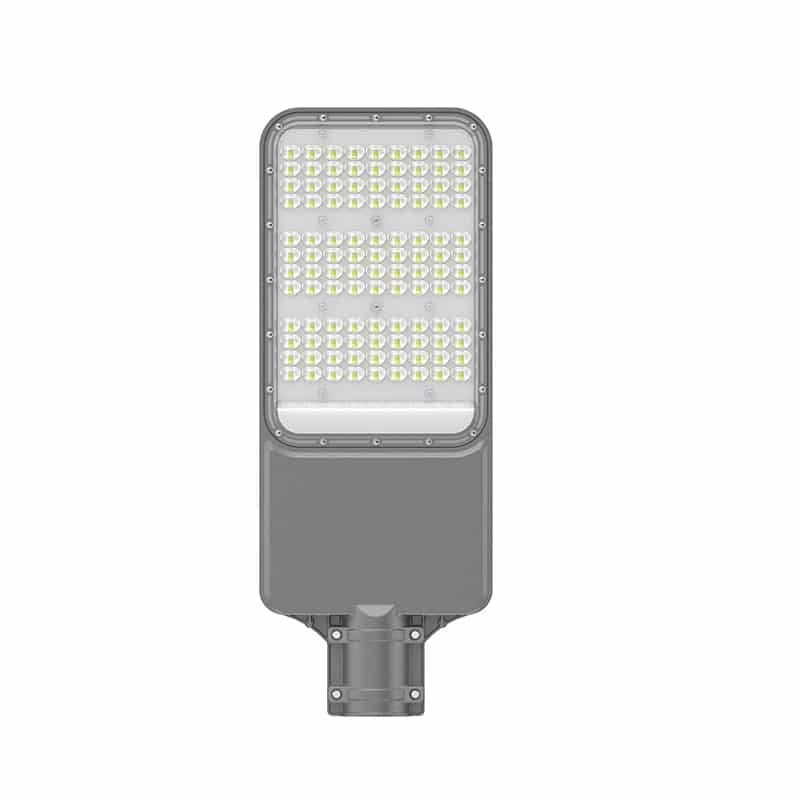

24V DC LED Street light 120-150W

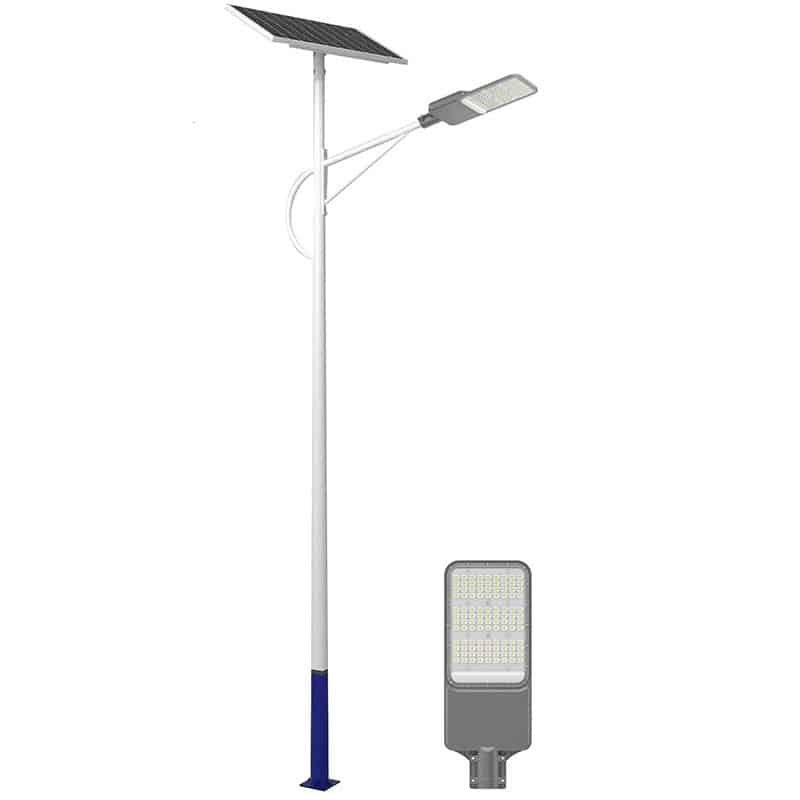

DC LED Street light for solar system
  • 24V-48VDC LED Street light 200W
  • 12V DC LED Street lights 30W-50W
  • 12V-24V LED Street lights 70W-100W
  • 24V DC LED Street light 120-150W
  • DC LED Street light for solar system

    • Low-voltage DC LED street light designed for off-grid solar roads, mine/tunnel safety lighting, and remote area projects. Available in fixed voltages: 12V, 24V, 36V, or 48V DC (please specify when ordering), power range 30W to 200W, suitable for pole heights 4‑10m. IP66 waterproof, IK08 impact resistant, asymmetric beam (Type II/III) for uniform road illumination.

    • Wattages: 100W 150W 200W 250W
    • Installation arm diameter: D60mm
    • Materials: Die-cast aluminum+PC Lens Cover
    • Working temperature: -25/+55℃
    • Working life: >50000Hrs
    • Certificates: CE RoHS
    • Manufacturer warranty: 3/5 years
    • CRI:>70 or 80
    • THD:<15%
    • Color temperature: 3000k/4000K/6000K
    • Beam angle: 70*140°
    • Fixed DC voltage – Choose 12V, 24V, 36V or 48V to match your system (no auto‑range)
    • IP66 waterproof + IK08 impact – Heavy rain, dust, and vandal resistant
    • High efficacy 130 lm/W – Reduces solar panel and battery requirement
    • 6kV surge protection – Essential for outdoor pole installation
    Get a Quote

    Order ModelWattagesLuminous fluxVoltage recommendedTypical CurrentPole HeightTypical ApplicationDatasheet
    GR-SL-30WS30W ±5%3900-4200lm12V / 24V DC2.5A / 1.3A4‑5 mPathway, garden, village accessDownload
    GR-SL-50WS50W ±5%5500-6500lm12V / 24V DC4.2A / 2.1A5‑6 mRural road, campus pathDownload
    GR-SL-70WS70W ± 5%8400-10000lm12V / 24V DC5.8A / 2.9A5‑7 mResidential street, parking lotDownload
    GR-SL-100WS100W ±5%11000-13000lm12V / 24V DC8.3A / 4.2A7‑8 mCollector road, solar farm accessDownload
    GR-SL-150WS120W-150W ± 5%16500-19500lm24V / 36V /48V DC6.25A / 4.1A / 3.1A8‑9 mMine road, industrial accessDownload
    GR-SL-200WS180W-200W ±5%22000-25000lm24V / 48V DC8.3A /4.2A9-10 mMain road, tunnel entranceDownload
     12V limitation: 12V available only up to 100W. For 150W/200W, choose 48V (or 36V for 150W) to keep current safe and cable runs practical.

    • Dusk to dawn (Photocell)- automatically turn on/ off
    • Dimming (PWM/0-10V/DALI Dimmable)
    • 2500K Yellow light color can be customized

    ApplicationDescriptionRecommended Voltage
    ☀️ Solar road & rural areaOff-grid villages, farms, parks – works with solar panel + battery bank24V / 48V
    ⛏️ Mine & tunnel lightingUnderground roads, access tunnels – safety voltage preferred36V / 48V
    🏗️ Remote project sitesConstruction, military, temporary roads – mobile DC power (generator or battery) / Telecom Tower12V / 24V /48V

    Q1: Can I use the same light for 12V and 24V systems interchangeably?
    No. Each light is factory‑set to a fixed voltage (12V, 24V, 36V, or 48V). Please order the exact voltage that matches your system. If you need flexibility across multiple projects, we recommend stocking different voltage variants.

    Q2: Why is 12V not available for 150W or 200W?
    At 12V, 150W draws 12.5A, requiring very thick cables (8 AWG) and causing significant voltage drop. For safety and practicality, we limit 12V to 100W. For higher power, choose 48V (4.2A at 200W).

    Q3: What is the difference between Type II and Type III beam?
    Type II – narrower distribution, for pathways and 1‑2 lane roads with pole height ≤6m. Type III – wider distribution, for standard 2‑4 lane roads. We provide free recommendations based on your road width and pole spacing.

    Q4: Can this light be used in underground mines?
    Yes. The 48V version is preferred (low current, safety voltage). We also offer optional IP67 and reinforced housing for dust/moisture.
